XPedite7683 3U VPX Module

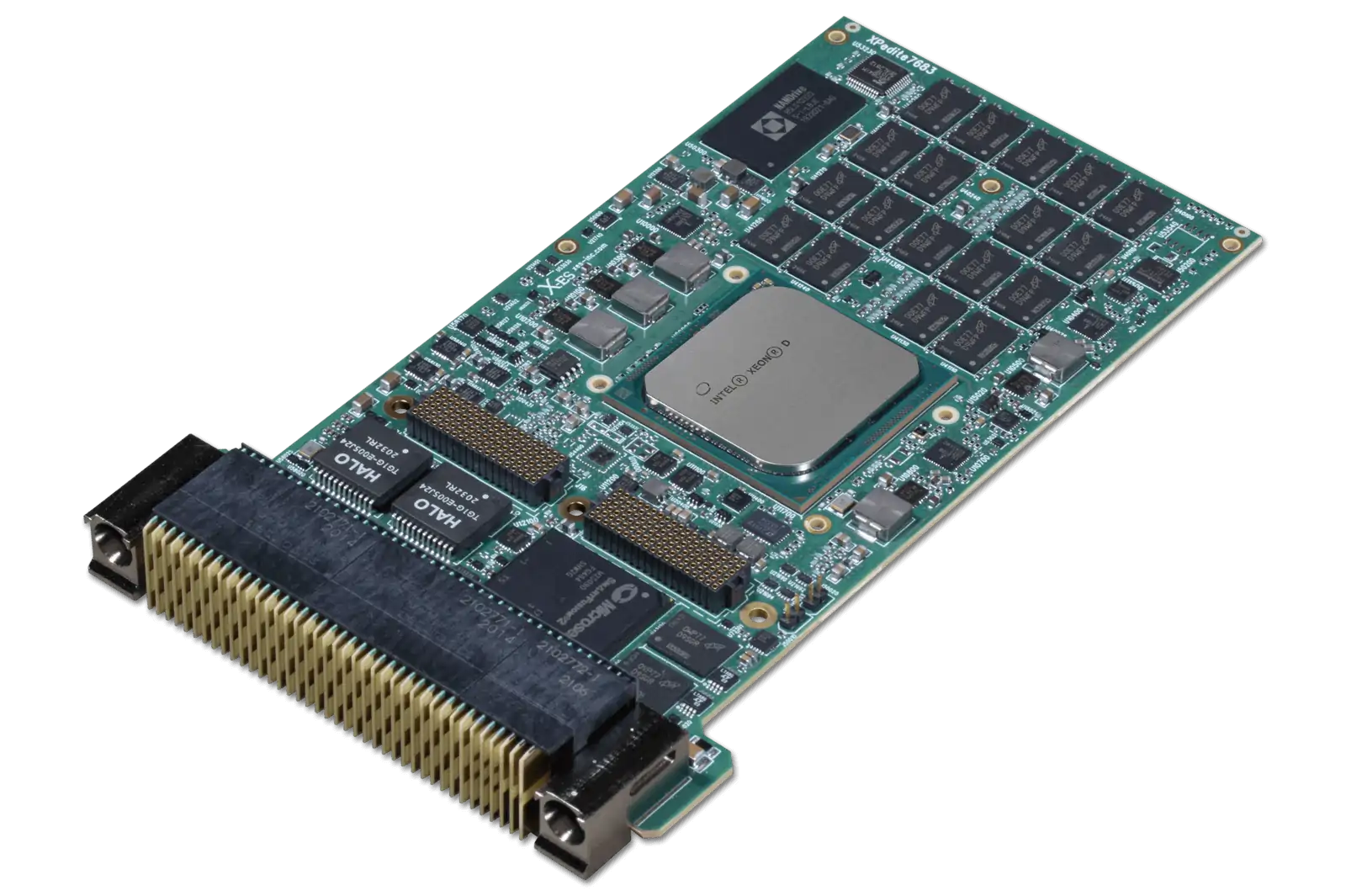

The XPedite7683 is a high-performance 3U OpenVPX single board computer designed for computationally heavy applications requiring maximum data and information security. Based around an Intel Xeon D-1500 with up to 16 Xeon-class cores, the embedded device features up to 32 GB of DDR4-2133 ECC SDRAM as well as XMC support.

An integrated Microsemi SmartFusion 2 security SoC with SecureCOTS technology provides enhanced protection against data modification or observation, making the XPedite7683 ideal for restricted and classified unmanned and robotics systems. The physical hardware has been constructed with an enhanced PCB and optimized Two-Level Maintenance (2LM) metalwork for extra protection.

The XPedite7683 delivers maximized network performance with two 10 Gigabit Ethernet interfaces and two Gigabit Ethernet interfaces. The SBC can accommodate up to 256 GB of onboard SATA NAND flash and provides numerous I/O ports, including USB, SATA, and RS-232/422/485 through the backplane connectors. Additional expansion possibilities are provided via an integrated XMC site, which includes an x8 PCIe connection to the processor and X12d I/O mapped directly to the VPX backplane connectors.
