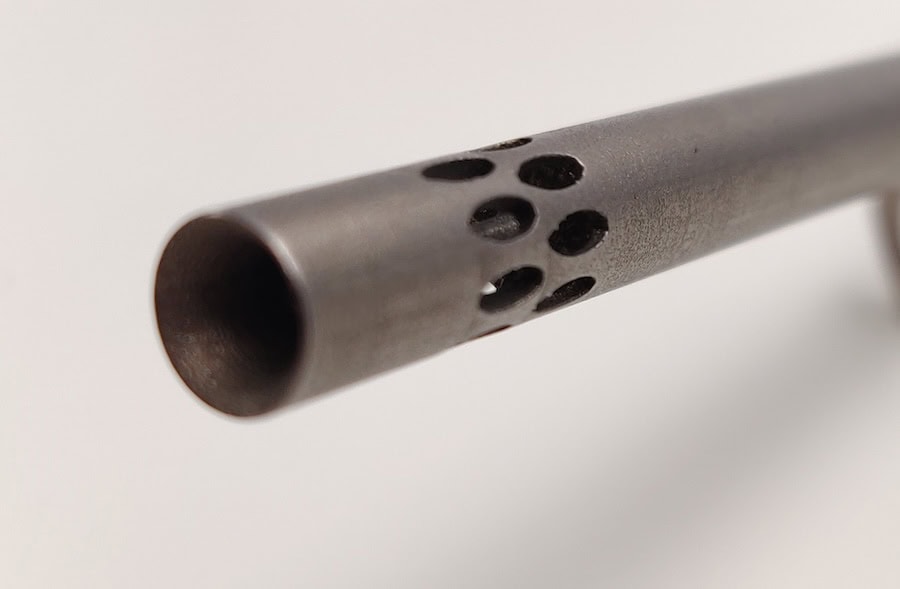

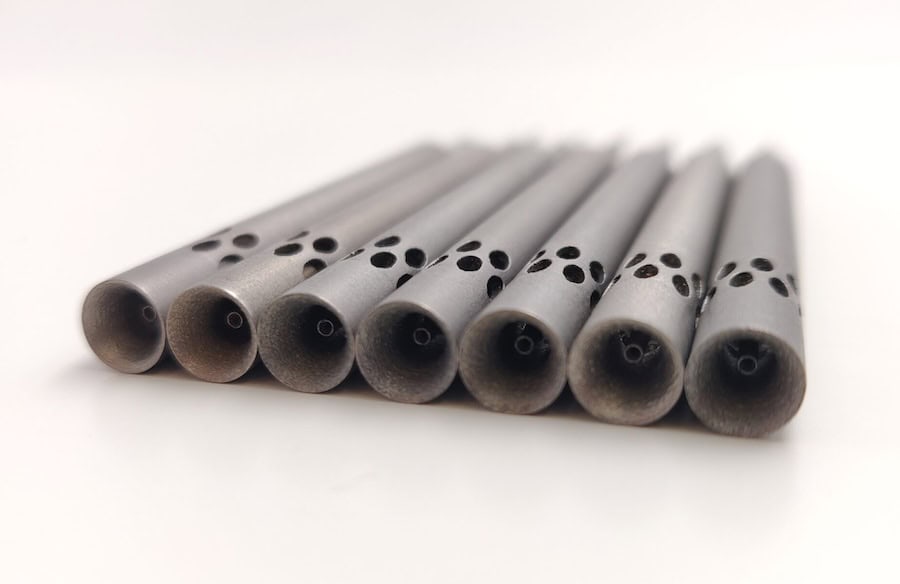

Kiel Temperature Probes
Vectoflow's Kiel temperature probes provide precision measurement of temperatures of up to 800°C at angles of attack of up to 60°. Created with advanced additive manufacturing technology, they offer robust construction and a high level of geometric flexibility, with form factors including straight, L-shaped, cobra, and custom.
The probes can be provided as individual units or as part of a probe rake, and can be equipped with a variety of thermocouple and resistance sensor options. They can be manufactured with a variety of lengths and with diameters as low as 1.6 mm. Material options include stainless steel, titanium, and Inconel.
Specifications:
| Max Length: |
100 mm (single-part designs) Greater lengths possible with multi-part designs |
| Temperature Range: | Up to 800oC |
| Angle Measurement Range: | ± 50° |
| Speed Measurement Range: | 3 to >343 m/s |
