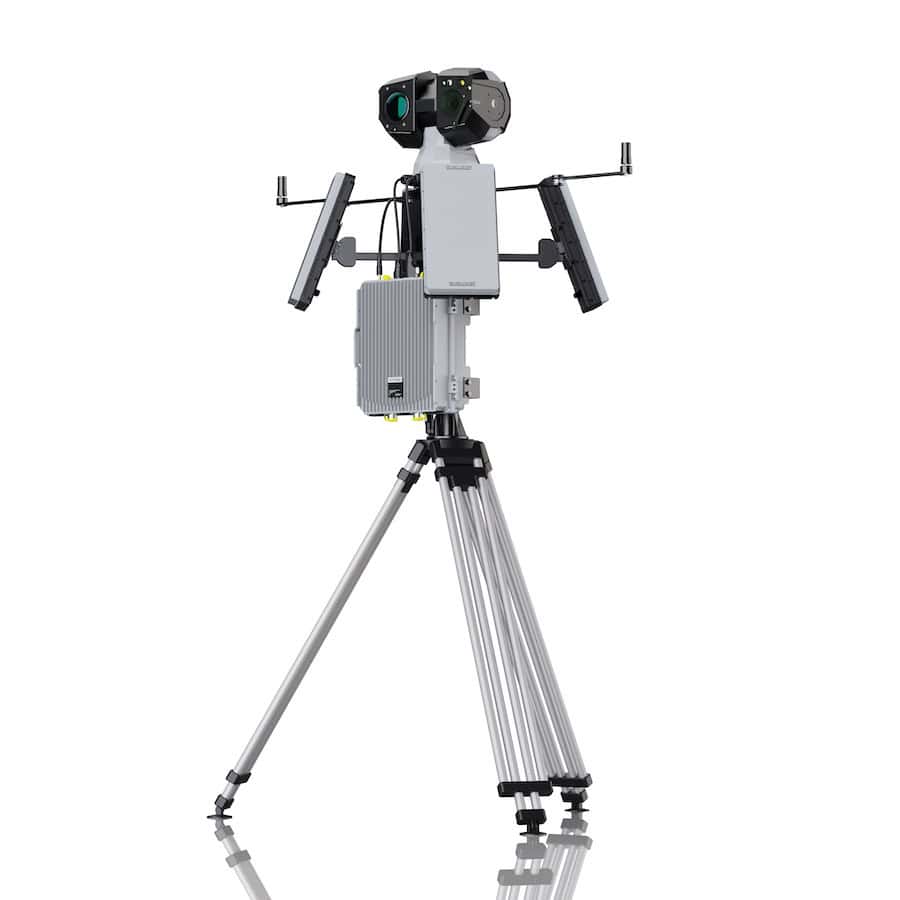

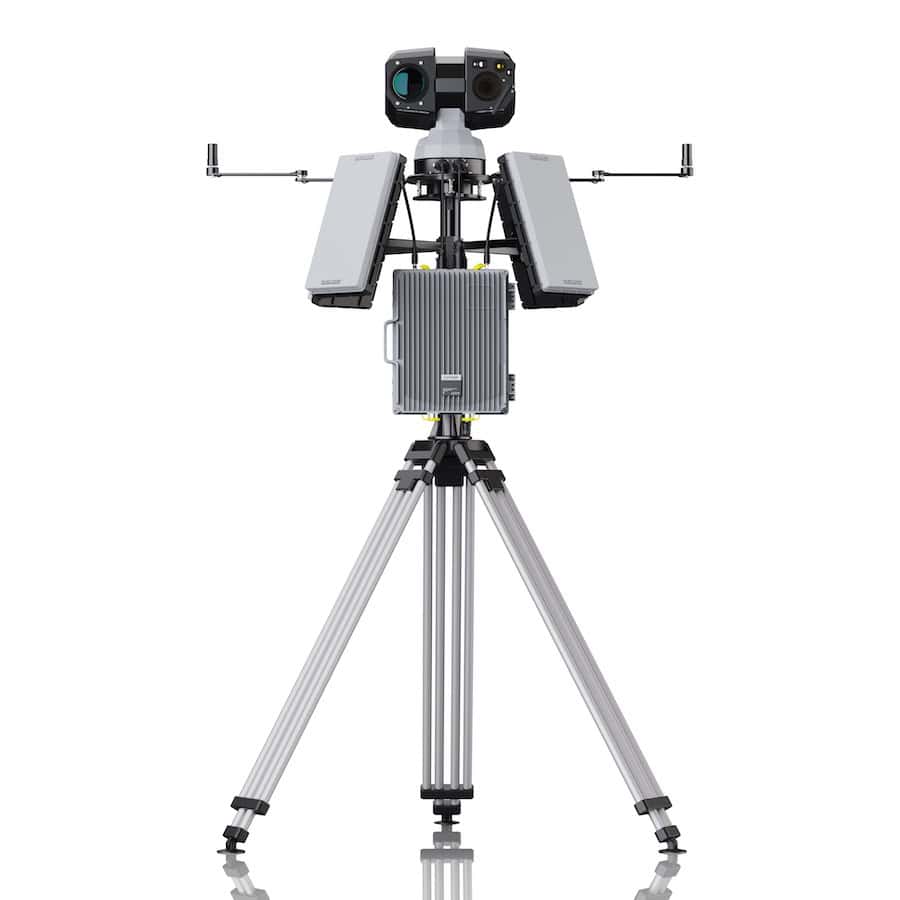

The TR100 is a multi-sensor counter-UAS platform that combines phased-array radar, visible-light imaging, thermal imaging, and wide-angle optics into a single integrated drone detection and tracking system. Designed to provide continuous airspace monitoring, the system utilizes radar for long-range target detection and early warning, automatically cueing the EO/IR payload to acquire, identify, track, and assess drone threats. By combining multiple sensing technologies within a unified architecture, the TR100 delivers reliable situational awareness against small and medium-sized UAVs across a wide range of operating conditions.
The system’s phased-array radar works in conjunction with visible and thermal imaging sensors to support day-and-night operation in both clear and adverse weather environments. Continuous optical zoom from 6.1 mm to 561 mm enables detailed target observation and positive visual identification at extended distances, while automated tracking functions maintain focus on detected targets. The TR100 can operate as a standalone drone detection solution or integrate with RF detection and mitigation systems to form a layered counter-UAS architecture, providing 24/7 protection for critical infrastructure, transportation facilities, government sites, industrial assets, and other security-sensitive locations.
Specifications:
| Operation Mode: | Independent or integrated with RF detection/jamming system |
| Radar Detection Distance: | ≥ 2 km (Target: DJI Mavic 4, RCS = 0.02 m²) |
| Radar Detection Range: | Azimuth ≥ 90°, Elevation ≥ 90° |
| Radar Detection Accuracy: | ≤ 2 m |
| EO/IR Identification Distance: | Daytime ≥ 2 km, Nighttime ≥ 1 km (Target: DJI Mavic 3) |
| EO/IR Tracking Distance: | Daytime ≥ 3 km, Nighttime ≥ 2 km (Target: DJI Mavic 3) |
| Camera Focal Length: | 6.1 mm – 561 mm (continuous optical zoom) |
