Measuring GPS Heading & Course Over Ground

ArduSimple explains how GPS systems can assist in measuring the real heading of a vehicle, clarifying terms like heading, course over ground, and track Feature Article by ArduSimple
Measuring GPS Heading & Course Over Ground
Follow UST

ArduSimple details below how the company’s advanced RTK GNSS systems can help in calculating the real heading of a given vehicle, highlighting the importance of understanding specific terms commonly used in measuring vehicle direction.


In GNSS and GPS, terms like heading, course, track, and yaw are often used, sometimes incorrectly (as if they mean the same thing), leading to confusion.

Heading

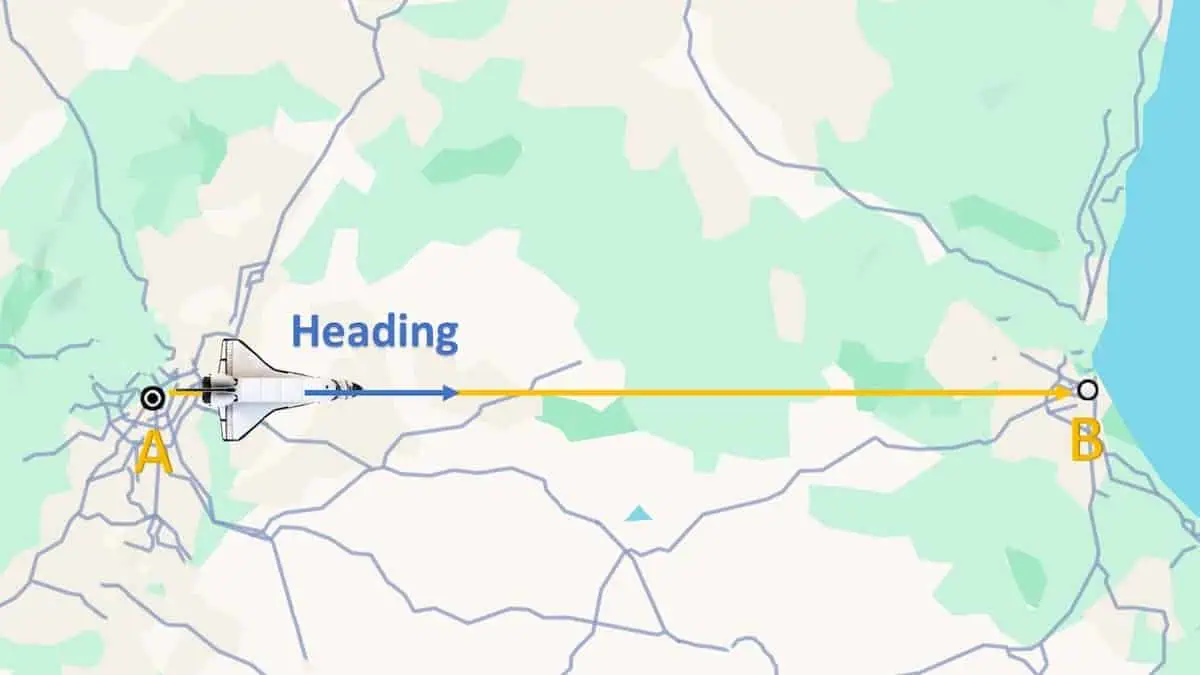

Heading refers to the direction in which a vehicle, boat, or plane is pointing. In GPS receivers, heading might also be called yaw, which indicates rotation around the vertical axis. Ideally, if traveling from point A to B, the heading matches the intended route.

heading corrected

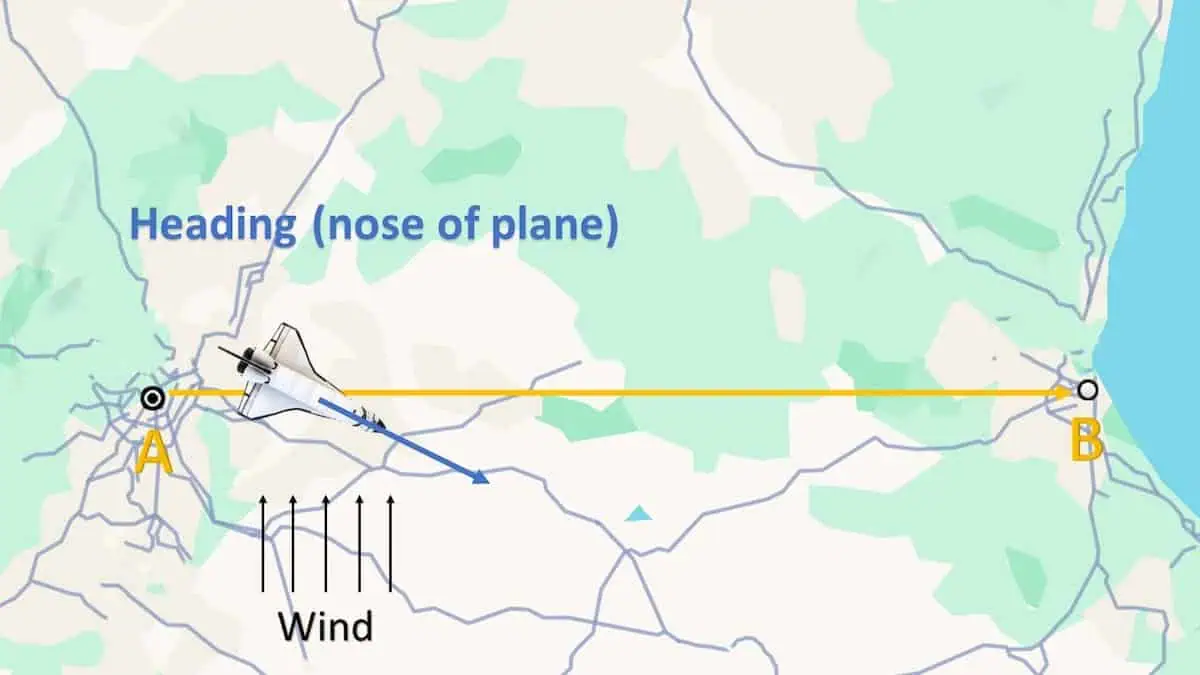

However, wind or other factors often cause deviations from this path, requiring adjustments by orienting the nose of the vehicle into the wind.

Heading changed

Course Over Ground

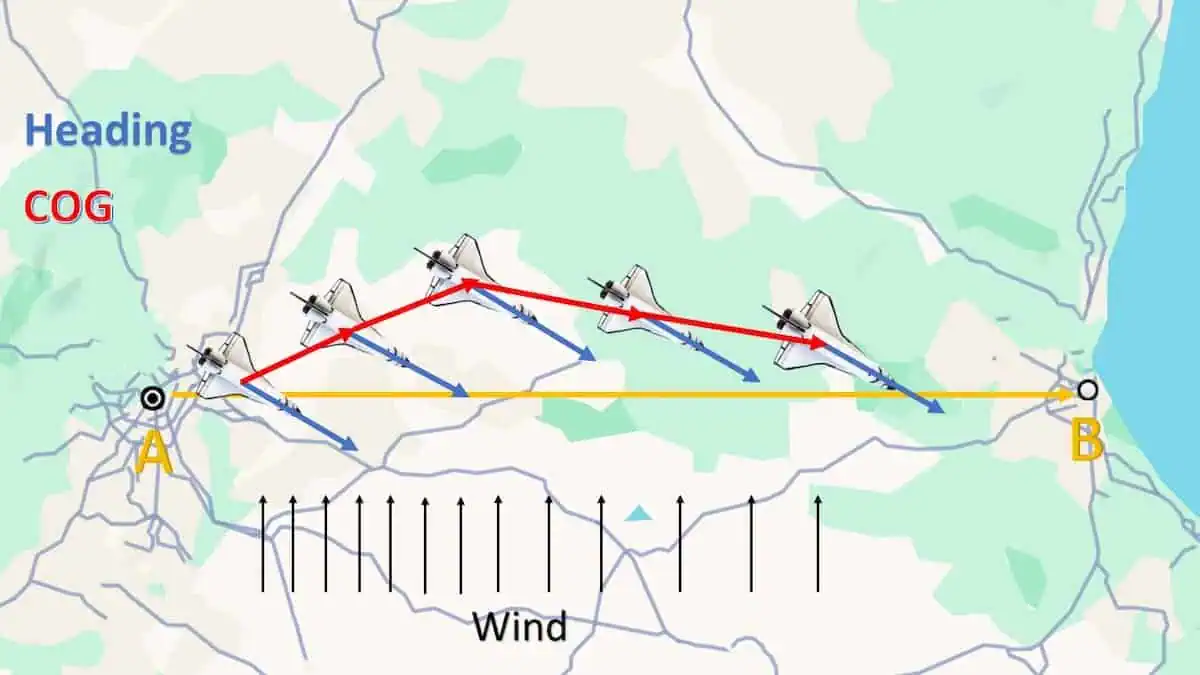

Course Over Ground (COG) is the actual direction an object is moving over the Earth’s surface, considering influences like wind or currents. COG reflects the real trajectory at a specific moment, sometimes referred to as the direction of motion. For example, if wind is stronger than expected, the COG will reflect this deviation.

cog

Track

Track, also known as “track line” or “ground track,” refers to the recorded path of an object’s movement over time. It represents the sequence of positions that outline the historical route taken.

heading-track

How to Measure Heading and Course Over Ground Using a GNSS Receiver

A GNSS receiver with a single antenna can determine COG by calculating position changes over time when the vehicle is in motion. However, it cannot detect rotational movements if the object is stationary. A dual-antenna GNSS receiver can determine heading regardless of whether the vehicle is moving or not by comparing the positions of the two antennas.

How to Place GNSS Antennas for Accurate Heading Data

To generate accurate heading data, a minimum distance between two antennas is required. Increasing the baseline length (distance between antennas) improves heading accuracy.

Generally, a minimum of 1 meter is needed for sub-degree precision under non-ideal conditions. For many vehicles, this is impractical, but decent results can still be achieved with 0.5 meters. At 0.3 meters, heading data may be noisy but acceptable for some applications.

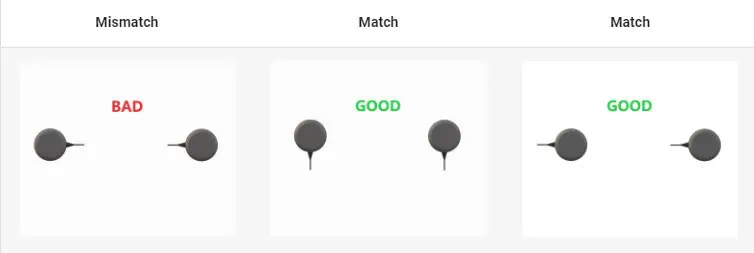

Both GNSS antennas should be identical and have the same physical orientation to maintain the best RF phase center alignment and heading accuracy, as the RF phase center is often offset from the antenna case’s physical center. Also, ensure identical RF cable lengths for both antennas.

The suitable positioning update rate varies by application: for slow-moving objects, a 1Hz rate might be sufficient, while faster ones may require 50Hz.

Antenna Position

Recommendations for Better GNSS Heading Measurements:

  • Use identical antennas
  • Maximize the distance between antennas
  • Maintain the same physical orientation
  • Use equal-length antenna cables
