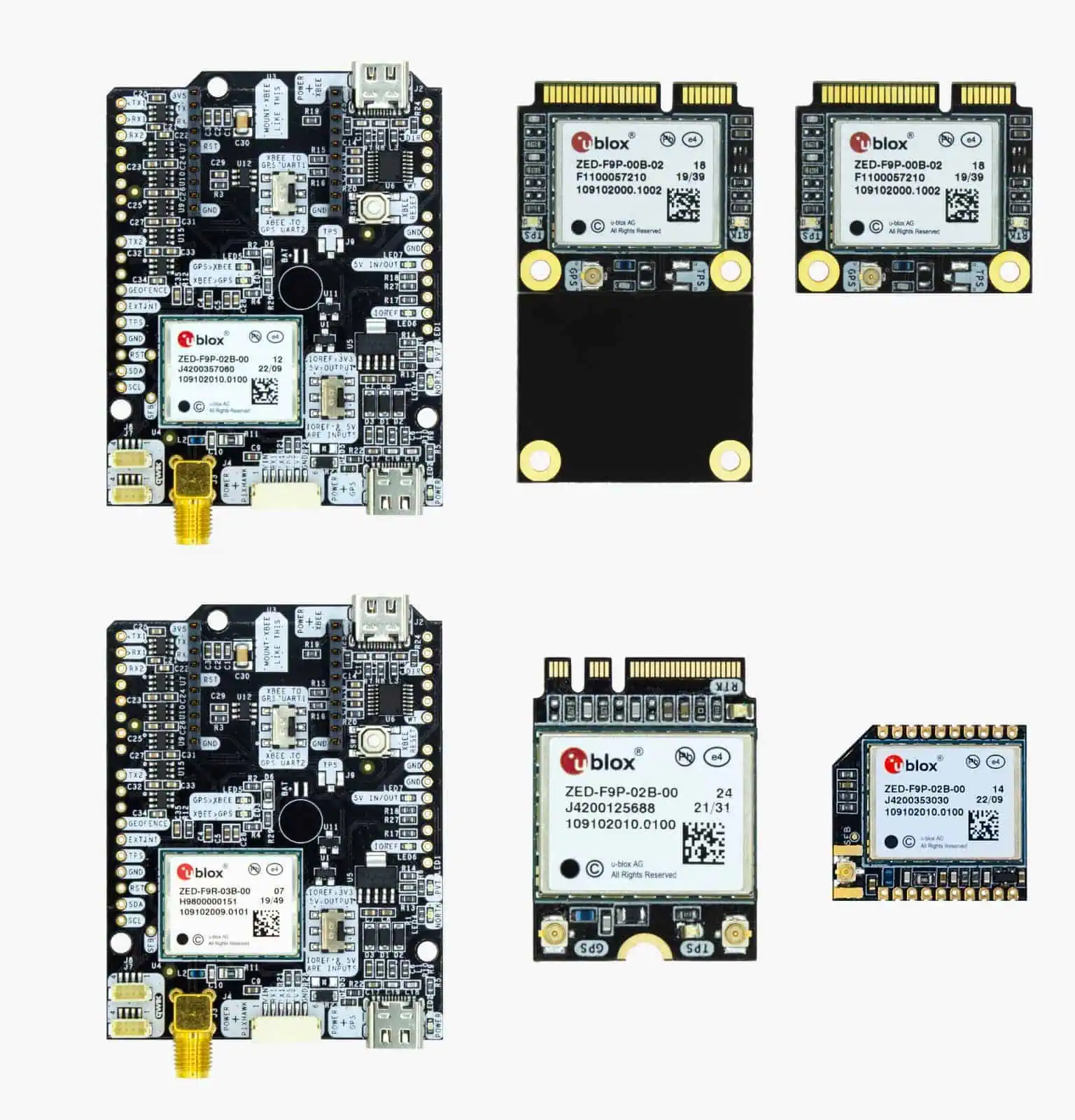

simpleRTK2B series RTK GNSS Receivers
The simpleRTK2B series of OEM GNSS RTK receivers, based on u-blox modules, provides centimeter-level accuracy with multi-constellation and multi-frequency tracking.
The boards are compatible with Arduino, STM32 Nucleo, and Raspberry Pi, and can also be used as an external GNSS RTK receiver for Pixhawk and Ardupilot-based drone flight controllers.
Specifications:
 simpleRTK2B Budget</strong |
 simpleRTK2b Pro |
 simpleRTK2B Lite |

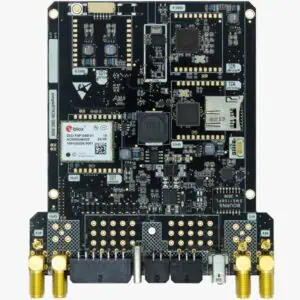

 simpleRTK2B SBC – Development Kit |
|
| Dimensions: | 69 x 53 mm | 69 x 53 mm | 41 x 28 mm | 115 x 85 mm |
| Weight: | 19.5g | 20g | 7.8g | 75g |
| Signals: | GPS: L1C/A L2C GLONASS: L1OF L2OF Galileo: E1-B/C E5b BeiDou: B1I B2I |
|||
| Accuracy: | <1cm with a base station up to 35km <1cm with NTRIP up to 35km <4cm with SSR corrections <1.5m in standalone mode <0.9m standalone with SBAS coverage |
|||
