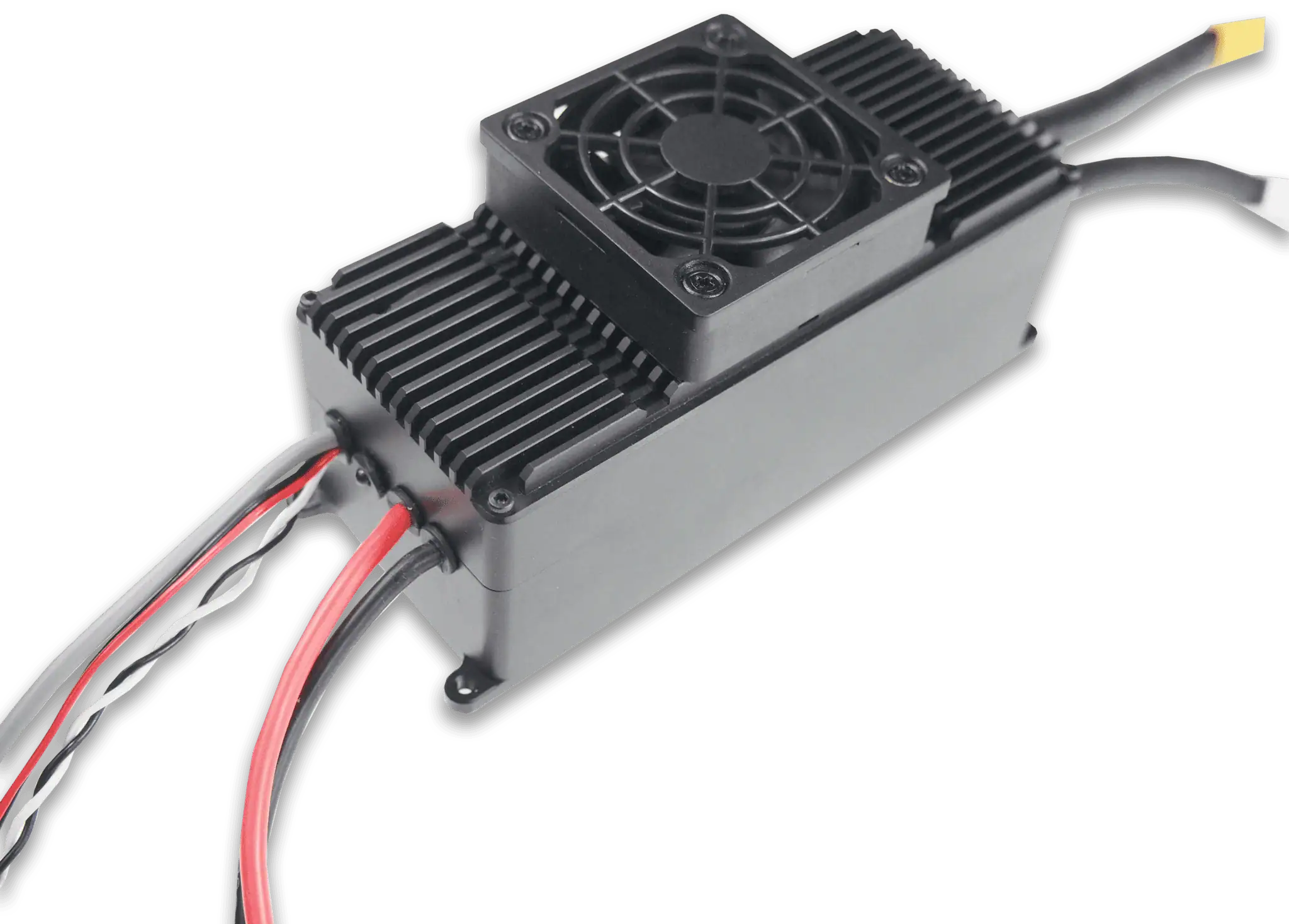

The INF Inject V5 700W PMU is a purpose-built power modulation unit that integrates starter and alternator functionality for small to medium UAV engines. Utilizing closed-loop hall sensor architecture, it delivers precise control of rotational feedback and current flow, enabling smooth, consistent engine starts under varied conditions. This advanced sensing framework enhances system resilience and ensures operational continuity from initial ignition through to mid-flight performance.
Engineered for seamless integration with UAV flight control systems, the INF PMU supports remote engine start via PWM signaling, allowing operators to initiate propulsion cycles with complete control. When required, power generation can be temporarily suspended using a 0V input, unlocking full engine performance during intensive flight phases without alternator load interference.
With in-flight restart capability and stable power delivery to onboard flight packs, the system is tailored to meet the endurance, reliability, and safety standards critical to advanced UAV operations in demanding environments.
Specifications:
| Dimensions: | 135mm x 52mm x 63mm |
| Weight: | 465g |
| Output Power: | DC 24V: 350W |
| Output Power: | DC 48V: 700W |
| Starting Options: | PWM Remote Start and Manual Push Start |
| Telemetry: | CAN Bus Telemetry (Optional) |
| Max Current: | 15A |
| Engine Compatibility: | 20cc ~ 215cc engines with INF Alternators |
