NSP-5 Multi-Mode Radar

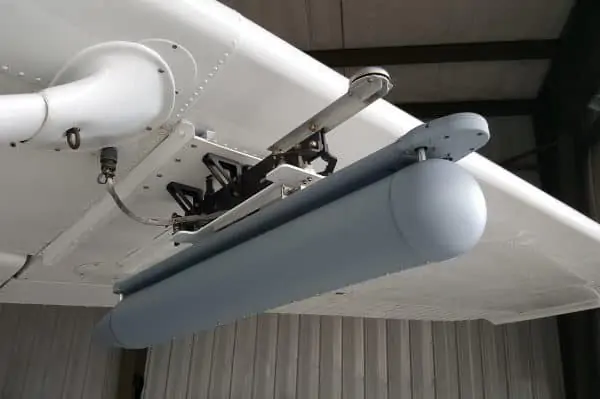

The NSP-5 is a multimode MTI (Moving Target Indicator) SAR designed for Group 2 and 3 tactical UAS, facilitating efficient intelligence-gathering in both land and maritime environments. Built into a rugged weatherproof pod, the system can be attached via a quick-connect rail with blind mate connections, or with MIL-Spec 14” lug mounts. IMSAR can also design bespoke mounting solutions for a variety of platforms.

Requiring only power and Ethernet, the NSP-5 can be controlled via IMSAR's intuitive Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. A Radar Control API is also available for easy integration with third-party and custom-developed software.

The NSP-5 can be connected to a Ground Processing Server via a datalink for real-time data processing, or radar data can be stored onboard for post-mission processing.

Dimensions (D x L x H) 13.7 x 117.9 x 17.3 cm (5.4 x 46.4 x 6.8 in)
Weight 7.5 kg/16.5 lbs (standard configuration)
Power 130W, 28 VDC
Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10 m
SAR Imaging Max Range 24 km (0.3m resolution)
34 km (1m resolution)
MTI Vehicle Range 15 km
Maritime Surveillance Range Detection & geolocation 259 km (140 nm)
Detection & tracking 131 km (71 nm)
Classification 72 km (39 nm)
