NSP-2 Synthetic Aperture Radar

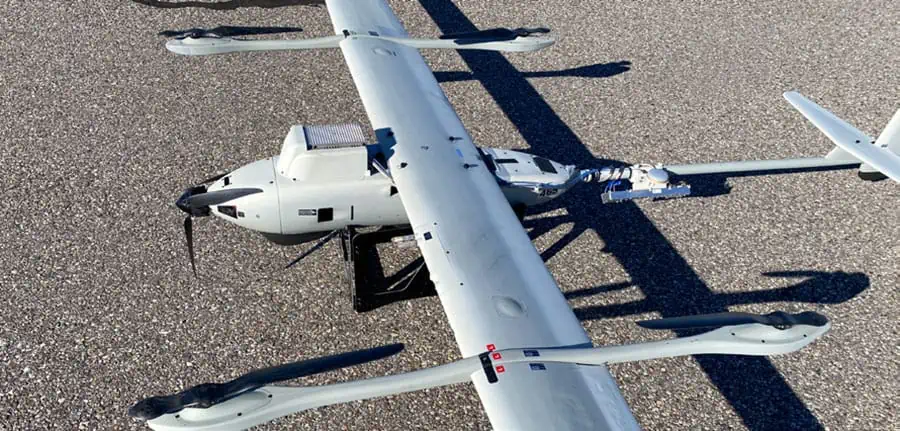

The NSP-2 is a high-performance multi-mode SAR that provides actionable intelligence in both ground-based and maritime environments. Designed for Group 1 and 2 UAS, it is available in MCD-only or MCD & CCD variants.

Requiring only power and Ethernet, the easy-to-operate NSP-2 can be controlled via IMSAR's intuitive Lisa 3D Command and Control (C2) and Processing, Exploitation, and Dissemination (PED) software. A Radar Control API is also available, allowing developers to easily integrate the system with third-party and custom-developed software suites.

The NSP-2 can be connected to a Ground Processing Server via a datalink for real-time data processing, or radar data can be stored onboard the pod for post-mission processing.

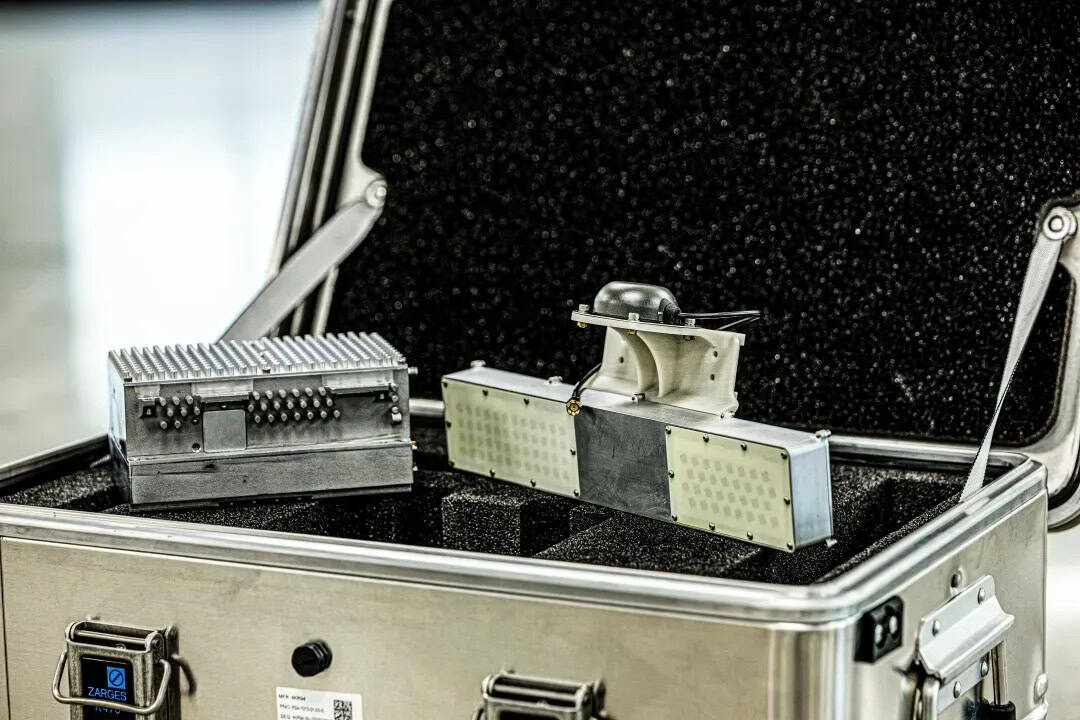

Dimensions Radar Electronics: 16.8 x 10.9 x 7.7 cm (6.6 x 4.3 x 3.1 in)
Antenna Assembly: 29.85 x 6.99 x 4.45 cm (11.75 x 2.75 x 1.75 in)
Weight 2.1 kg/4.65 lbs (standard configuration)
Power 56W, 28 VDC
Range Resolution 0.1, 0.3, 0.5, 1, 2, 5, 10 m
SAR Imaging Max Range 3.9 km (0.3m resolution)
5.8 km (1m resolution)
MTI Vehicle Range 3 km
Maritime Surveillance Range Detection & geolocation 111 km (60 nm)
Detection & tracking 35 km (19 nm)
Classification 20 km (11 nm)
