PNU & UPNU

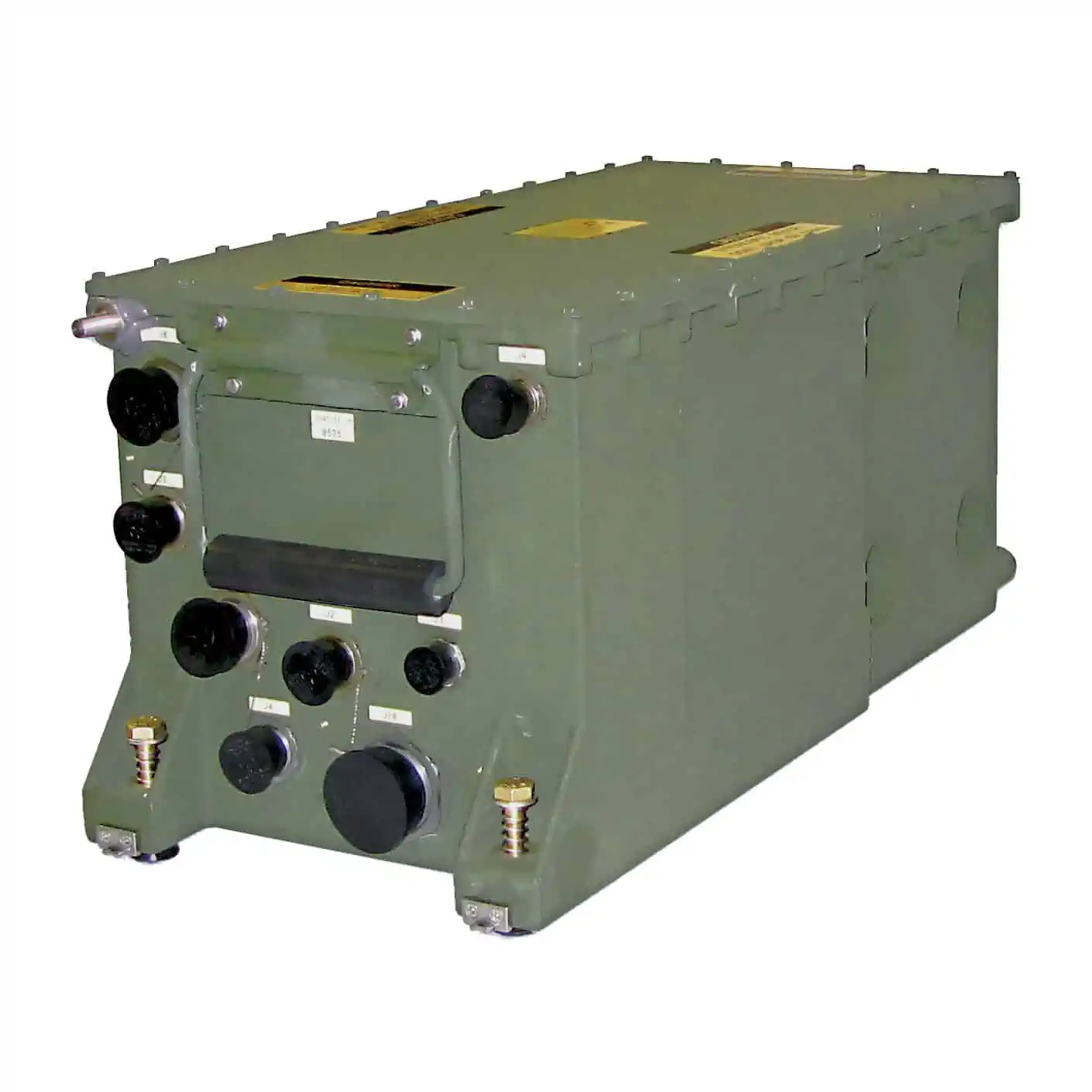

The Position & Navigation Unit (PNU) and Universal Position & Navigation Unit (UPNU) utilize high-performance ring laser gyros to provide precision pointing and position location for sensors and weapons systems, and have been combat-proven on U.S. Army rocket and artillery systems.

The robust units feature GPS anti-jamming and spoofing capabilities, require no periodic calibration, and meet a range of military standards including MIL-STD-461E/464A, MIL-STD-810F, and MIL-STD-1275D.

Specifications:

Dimensions (L x W x H) 24.2 x 10.51 x 11.06 in
61.5 x 26.7 x 28.1 cm
Weight 74 lbs (34 kg)
Power 90W, 16-36 VDC
Initialization Time Static Align 5 mins
Accelerated Align 2 mins
Dynamic Align 15 mins
Pointing Accuracy 0.3 + 0.25 secant (latitude) mil probable error
Roll/Elevation Accuracy 0.17 mil probable error
0.25 mil RMS
Position Accuracy (GPS-Aided) 10 m Horizontal Circular Error Probable (HCEP),
10 m Vertical PE (VPE)
