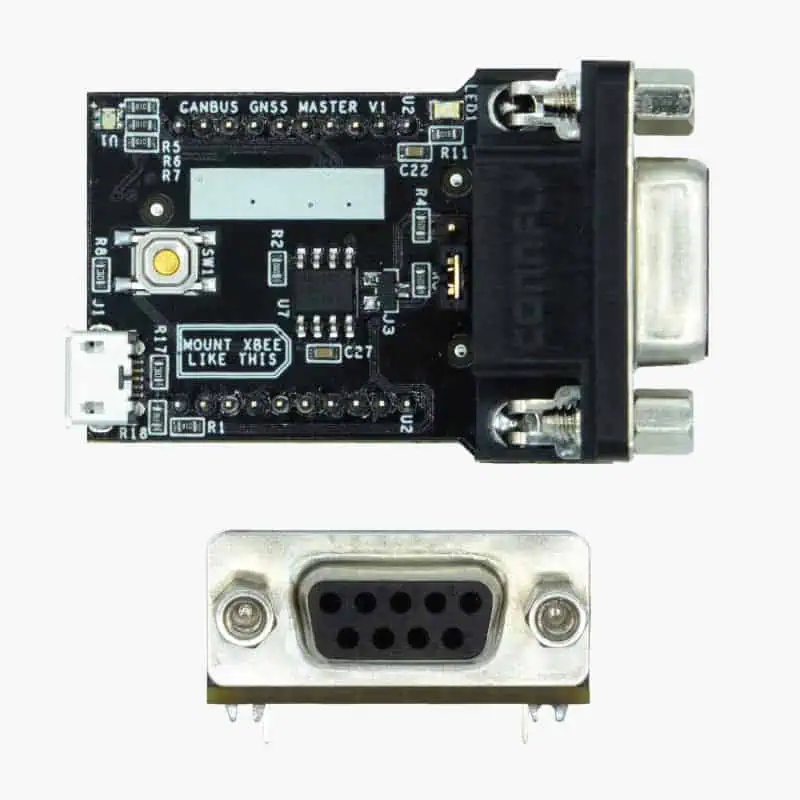

CANBus GNSS Master
XBee socket or serial port, and is compatible with all ArduSimple boards with an XBee socket.
The plug-and-play device is ideal for broadcasting GNSS data over CANBus, and can also be used as an NMEA0183 to NMEA2000 converter.
Specifications:
| Interfaces: |
UART (3.3V) RS232 (requires accessory) |
| Voltage Supply: | 3.0 – 3.6 VDC |
| Operating Current: | 150 mA typical |
| Hardware Features: |
CAN 2.0A and B Bitrate up to 1 Mbit/s Support for standard 11-bit and extended 29-bit frame identifiers |
