New Imaging Filters Introduced for Aerial Vegetation Monitoring

By Mike Ball / 19 Jan 2017
Follow UST

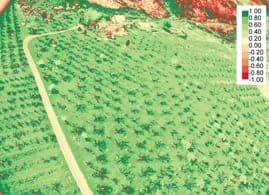

MidOpt Filter NVDI ImageMidwest Optical Systems (MidOpt) has announced the availability of new imaging filters for aerial plant health surveillance applications. The four new filter types have been specifically designed for use in drone cameras conducting agricultural and forestry monitoring and inspections:

Bi725 Red Edge Bandpass Filter – a 25nm FWHM filter designed for use in aerial vegetative monitoring. This “Red Edge” filter isolates the wavelength region where the most rapid change in reflectance occurs in foliage. When plants are stressed or dying, photosynthesis slows down or stops. IR wavelengths are absorbed, while more visible light–particularly red light–is reflected. The transitional 725nm band is uniquely affected by vegetative health changes and provides information relating to chlorophyll and nitrogen status used to distinguish thriving from stressed vegetation.

The DB550/850 compliments the already available DB660/850 and DB475/850 filters. When modifying a single color camera by removing its IR blocking filter, incorporation of this filter in its place allows reflected near-infrared light (850nm) to be captured in the camera sensor’s red channel and reflected green light (550nm) to be captured in the sensor’s green channel (the blue channel is not used). Healthy vegetation will absorb (not reflect) green light and strongly reflect near-infrared light. Thus this information can then be used to apply a false color gradient to images to better highlight the contrast between regions of healthy vegetation vs. areas with stressed, diseased or no vegetation.

The TB475/550/850 Blue+Green+NIR and TB550/660/850 Green+Red+NIR are new Triple Bandpass filters. When mounted in converted consumer cameras used in aerial surveying applications e.g. unmanned aircraft systems (UAS), they can help provide a more affordable, lightweight alternative vs. systems employing three or more cameras or sensors. Blue-Green-Near IR wavelength information is used to calculate and map Extended Normalized Difference Vegetation Index (ENDVI) data, which is similar to but spectrally different vs. traditional NDVI data. Soil background, differing atmospheric conditions and various types of vegetation can all influence the reflection of visible light somewhat differently. ENDVI analysis at times may be able to impart more accurate or reliable information regarding plant or crop health by additional leveraging of information in the blue portion of the spectrum.

Green-Red-Near IR data is used for applications where Chlorophyll Vegetation Index (CVI), Normalized Green (NG) and other vegetative index monitoring may be preferred. TB550/660/850 filters, when mounted in converted consumer cameras, can again help to achieve a more affordable, lightweight alternative to systems using three or more cameras or sensors.

All of the new filters are offered in various standard threaded mounts and custom cut to fit any lens or camera size or opening. Standard material thicknesses include 0.5mm, 1.1mm and 2.0mm.
