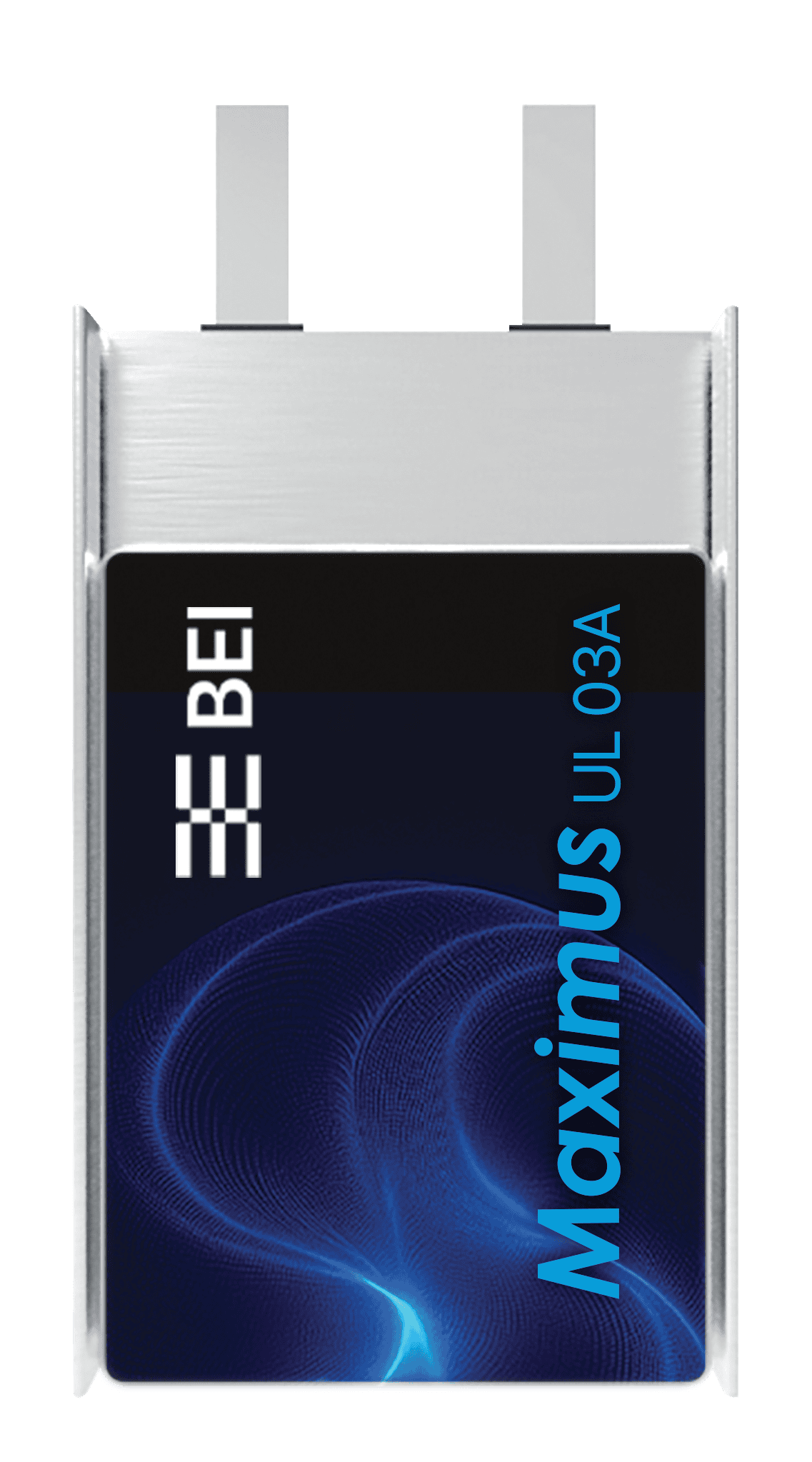

The Maximus Ultralight 3.0Ah is a high-energy density and high-power density battery based on advanced lithium metal technology with a cutting-edge anode-free design. Engineered with an ultra-thin protective coating layer, it does away with the safety and poor cycle life issues experienced by traditional lithium-ion battery solutions, and also offers lighter weight and a smaller footprint.
The innovative battery is ideal for a wide range of drone platforms as well as loitering munitions, ensuring superior range and flight time and supporting more agile and rapid maneuvers. Featuring an extended operating temperature range of -35 to +73oC, it provides superior performance in virtually any environment on Earth.
The Maximus Ultralight 3.0Ah has been successfully tested to UN 38.3 requirements and can be transported safely by air, land or sea.
Specifications:
| Dimensions (L x W x T): | 70 x 52 x 5.5 mm |
| Weight: | 28g |
| Nominal Capacity: |
3.1 Ah (0.1C charge/0.1C discharge, 25±3 oC) 3.0 Ah (0.2C charge/0.2C discharge, 25±3 oC) |
| Discharge Energy: | 12.0 Wh |
| Gravimetric Energy Density: | 417 Wh/kg |
| Voltage: | 3.0 - 4.3V (3.86V nominal) |
| Standard Charge Current: | 0.31 A (C/10) (25oC, 3.0 - 4.3 V) |
| Max Continuous Charge Current: | 12 A (4C) (25oC, 3.0 - 4.3 V) |
| Standard Discharge Current: | 0.31 A (C/10) (25oC, 3.0 - 4.3 V) |
| Max Continuous Discharge Current: |
62 A (20 C) (25oC, 3.0 - 4.3 V) 37 A (12 C) (-20oC, 3.0 - 4.3 V) 25 A (8 C) (-30oC, 3.0 - 4.3 V) |
| Rapid Discharge Current: |
32 C / 32 C / 28 C (100 A / 100 A / 87 A) (10 sec,@ SOC 100% / 80% / 50%) |
| Fast Charging: |
3.0 C (25oC, SOC 0 ~ 80%) - 15.5 min 5.0 C (25oC, SOC 0 ~ 80 %) - 9.3 min |
| Cycle Life: |
0.2C / 1.0C, to 80% SOH (DOD 100%): 80 - 100 cycles 0.2C /1.0C, to 80% SOH (DOD 70%): >200 cycles |
