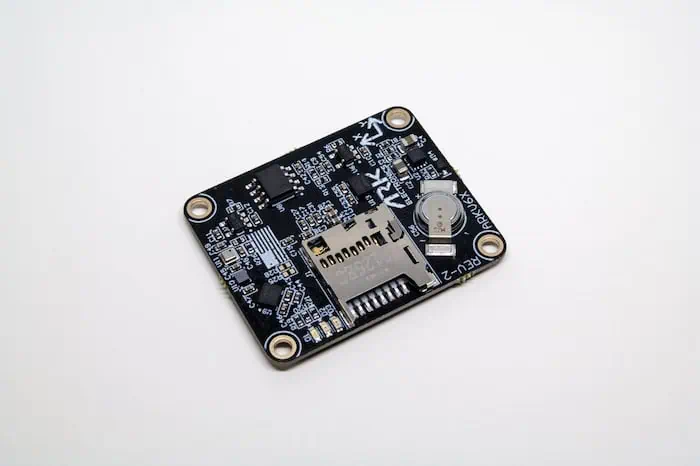

ARKV6X Flight Controller

The ARKV6X is an NDAA-compliant drone flight controller designed around the Pixhawk Autopilot Bus (PAB) open source standards. It ships with PX4 Autopilot firmware by default, and can be optionally flashed with Ardupilot firmware.

The highly reliable flight controller is based around the STM32H743IIK6 MCU, and features triple-synced IMUs, enabling advanced functionality such as data averaging, voting, and filtering.

Specifications:

Dimensions: 3.6 x 2.9 x 0.5 cm
Weight: 5g
Power Requirements: 5V
300mA for main system
200mA for heater
Sensors: Dual Invensense ICM-42688-P IMUs
Invensense IIM-42652 Industrial IMU
Bosch BMP390 Barometer
Bosch BMM150 Magnetometer
MCU: STM32H743IIK6
480MHz
2MB Flash
1MB RAM
