Challenger Aerospace Unveils New Hybrid VTOL UAS

By Mike Ball / 30 Aug 2017

Smart Sourcing for Unmanned Systems

Discover cutting-edge solutions from leading global suppliers
SUPPLIER SPOTLIGHT
Follow UST

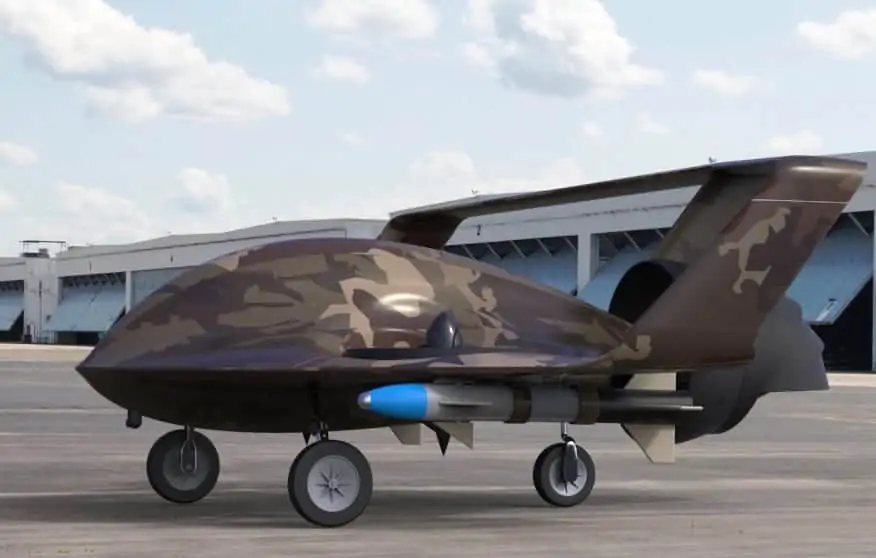

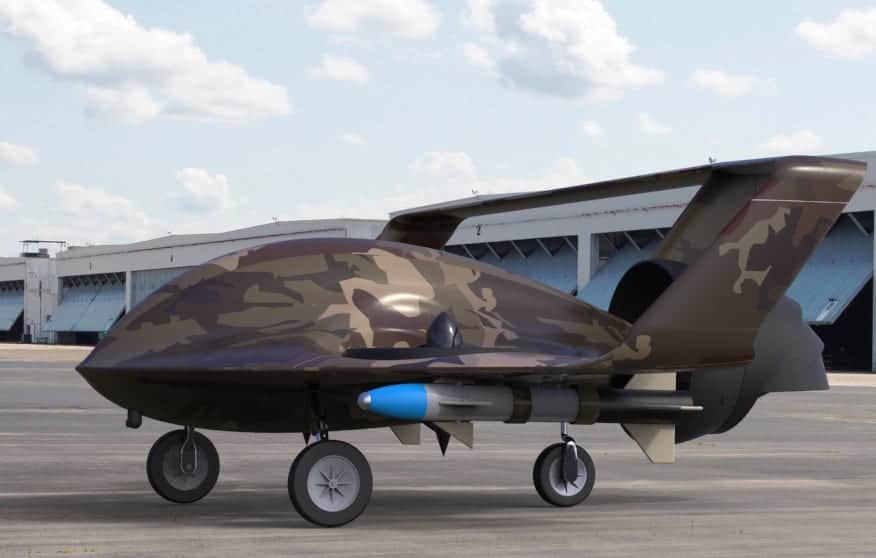

Challenger Airspace Group Stingray UAS

The Challenger Aerospace Group has announced that it has unveiled the design of its new Stingray hybrid vertical take-off and landing (VTOL) unmanned aircraft system (UAS).

According to Challenger Aerospace Group CEO LeRoy Aday, the new Stingray is a battlefield advanced targeting and attack platform. The unmanned aircraft is designed for strike missions, ship-borne protection, coastal patrol and standard missions such as surveillance and monitoring, target pointing and designation.

The Stingray UAS is powered by a diesel JP-4 Drake Engine (diesel, JP-4) with a rated power output of 278 hp (207 kW). It has the ability to operate at ranges of up to 836 km with a flight endurance of 4 hours.

Specifications:

Length: 17 ft 3.3 in (5266.54 mm)
Wingspan: 18 ft 7.6 in (5679.56 mm)
Height: 7 ft 8 in (2337m m)
Empty weight: 1,088lb (493 kg)
Max takeoff weight: 2,250lb (1,157 kg)
Lift fans: 3x Electric
Fuel Cap: 35 Gal (132.489 L)
Max speed: 126.002 knots (145mph)
Cruise Speed:112.9 kn (130 mph)
Range: 520 mi (836.859 km)
Service ceiling: 11,000 ft (3352.8m)
Rate of climb: 1,700ft/min.
