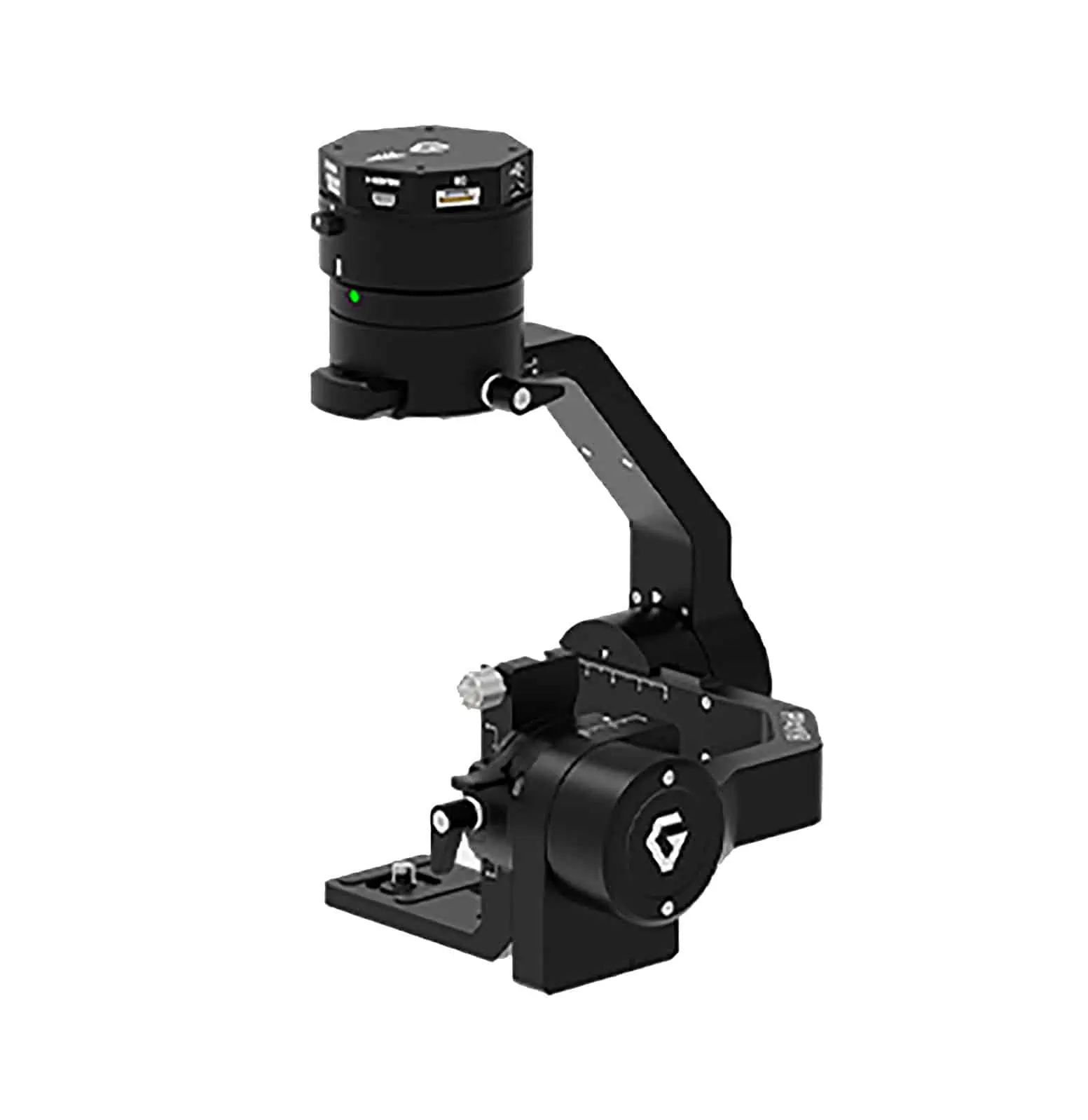

Pixy S Drone Camera Gimbal

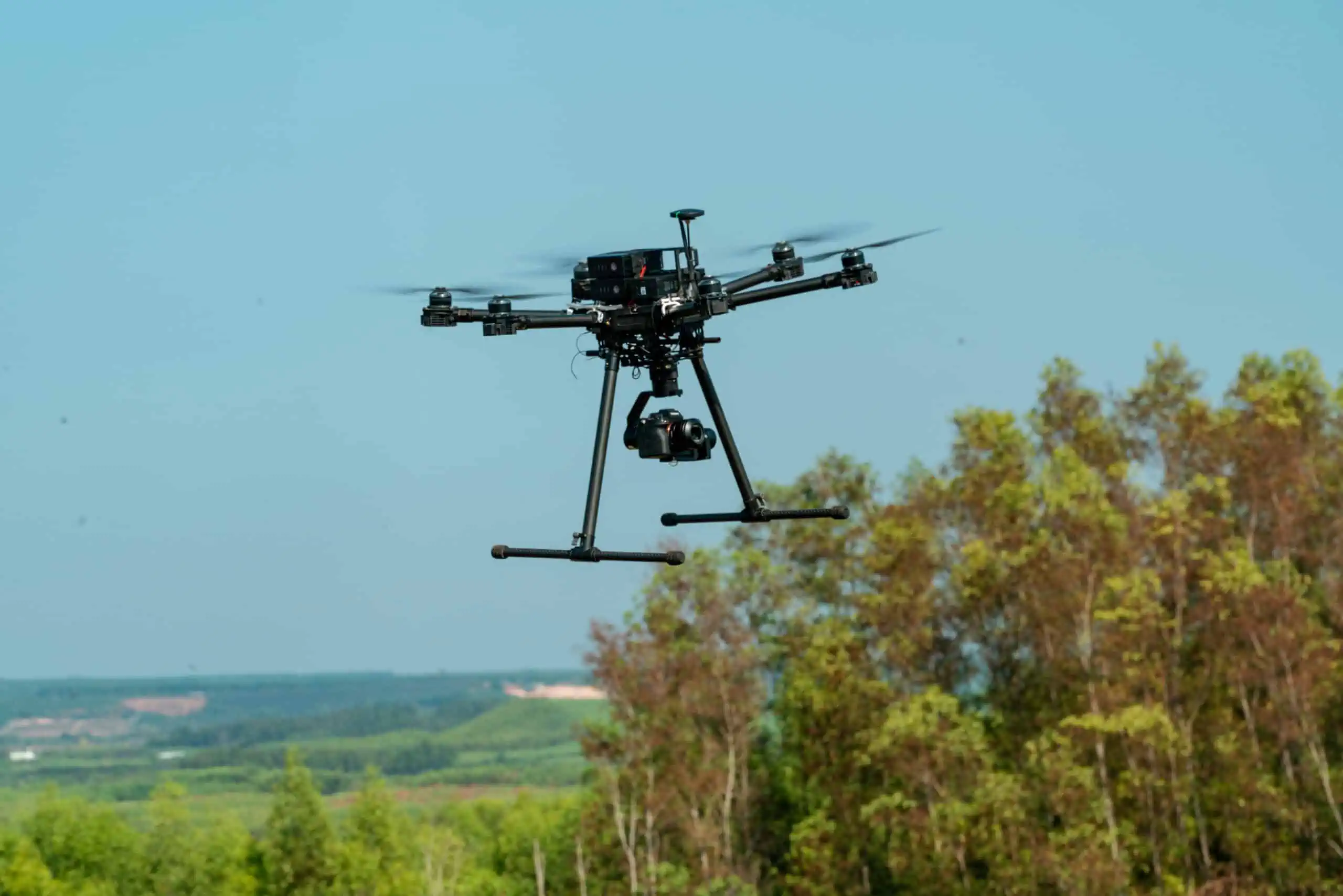

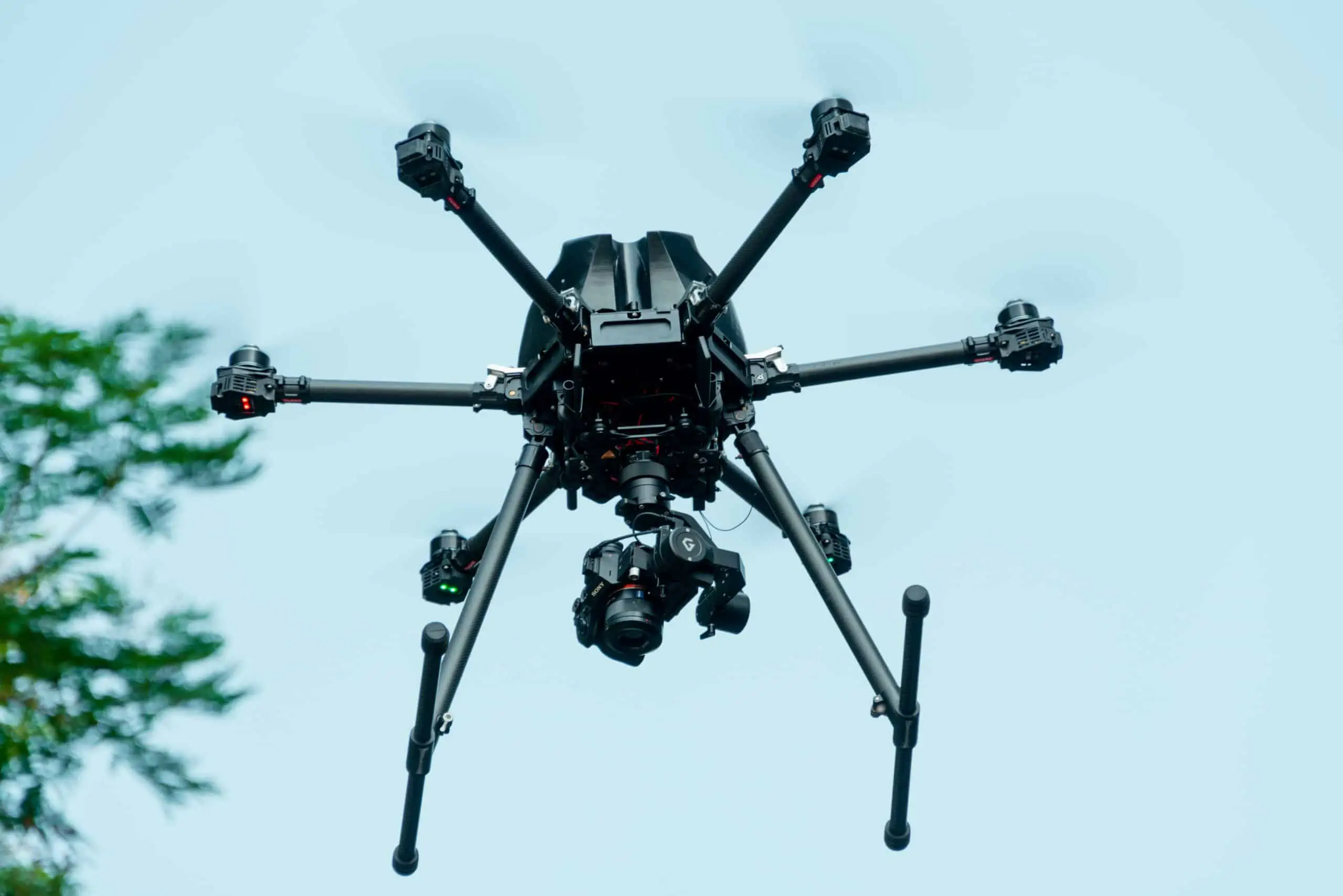

The Pixy S is an industrial drone gimbal designed specifically to carry the full-frame 61MP Sony α7R IV camera for mapping and inspection applications. The compact gimbal weighs just 560 grams and is compatible with a wide variety of drone platforms using the Pixhawk, CubePilot and Skynode autopilots.

The camera is secured within the cage using a unique "slide and lock" mechanism, simplifying setup and requiring balancing only during first installation. A high-performance IMU together with smart auto-tuning enhances the gimbal's performance and stability. The Pixy S also features a new Hotshoe signal connector that allows high-precision image geotagging.

Specifications:

Dimensions (D x W x H) 140 x 127 x 183 mm
Weight 560g (1.2 lbs)
Input Power 15 - 52V
Maximum Controlled Rotation Speed Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s
Mechanical Endpoint Range Pan axis control: -328° to +328°
Tilt axis control: -140° to +50°
Roll axis control: -290° to +50°
Controlled Rotation Range Pan axis control: ±320°
Tilt axis control: -120° to 40°
Roll axis control: ± 30°
Lens Compatibility SEL28F20, SEL35F28Z, SEL55F18Z, SEL24F28G, SEL40F25G, SEL50F25G
