Sapphire Windows Designed to Protect Drone Vision Systems

By Mike Ball / 25 Jul 2018
Follow UST

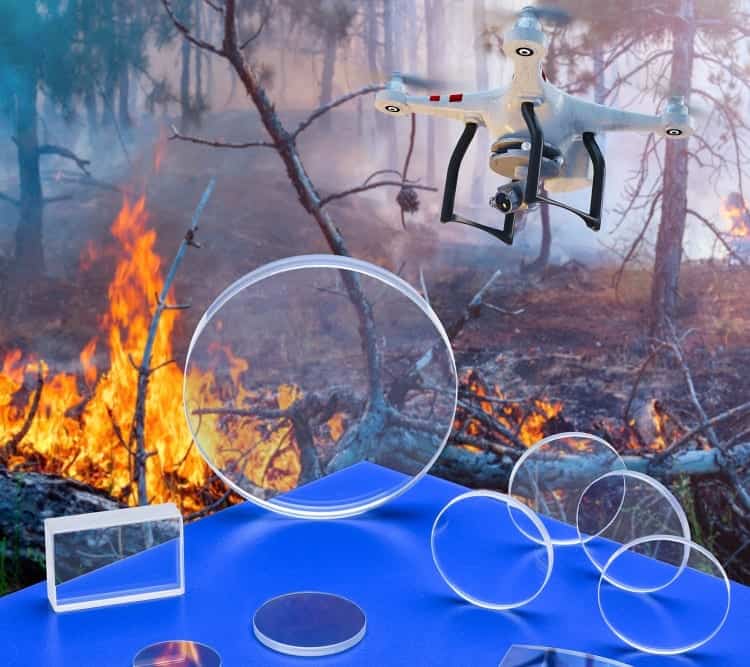

Meller Sapphire Windows for drones

Meller Optics, Inc. has announced the introduction of custom fabricated sapphire windows for unmanned aerial vehicles (UAVs) exposed to chemicals, gases, particulates, and pollutants that can cause damage to sensitive vision systems.

Meller Sapphire Windows provide optimum optical clarity and feature Mohs 9 hardness to protect drone vision systems in harsh environments where they may be exposed to chemicals, fast moving particles, gases, and high heat. Custom fabricated in sizes from 1/4” to 10” dia. and 1/2 mm to 1” thick, depending upon configuration, they can also include A/R coatings.

Fabricated with flatness held to 0.5 fringes of HeNe and parallelism from 20 to 2 arc/secs., and surface finishes from 60-40 to 40-20 scratch-dig, Meller Sapphire Windows can withstand temps. to 1,000°C and pressures to 10,000 psi, depending upon configuration. Other sapphire optics include domes and lenses with focal lengths from 3/4” to 1,000 mm or greater.

To learn more, contact Meller Optics: Visit Website Send Message View Supplier Profile
