Sagetech Avionics highlights the advantages and impact of integrating the MXS Transponder into aviation programs, particularly for both crewed and uncrewed aircraft operations.
As aviation technology evolves, the demand for efficient communication and identification systems increases. The Sagetech Avionics MXS MODE 5 Transponder offers a compact, low-SWAP solution to meet these challenges.
Meeting size, weight, and power (SWAP) requirements with cost-effective and efficient transponders is crucial for air missions with increased payload. Many certified transponders available today are costly, heavy, and power-consuming. To improve mission effectiveness while reducing operational expenses and ensuring safety, a certified low SWAP solution is essential.
Integrating Unmanned Aerial Vehicles (UAVs) into national airspace offers substantial benefits for improving various aspects of aviation operations. Utilizing UAVs alongside crewed aircraft can save lives, reduce response times, and improve situational awareness in critical scenarios. The MXS Transponder, with its advanced features, supports solutions for global challenges, including search and rescue, surveillance and reconnaissance, disaster response, communication and coordination, supply transportation, and logistics.

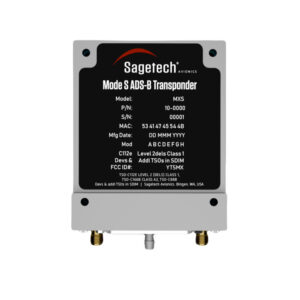

MXS MODE 5 Transponder
The MXS Transponder is a groundbreaking system that introduces the first FAA-certified TSO/ETSO authorized small transponder with integrated ADS-B (Automatic Dependent Surveillance-Broadcast) in and out capabilities. It is also recognized as the world’s first certified small ADS-B receiver. With support for Modes A, C, S, and 1090 MHz ADS-B in/out functionality, the MXS Transponder ensures adherence to global rules and regulations, making it suitable for both crewed and uncrewed aircraft worldwide.
Equipped with ADS-B in and out capabilities, the MXS Transponder enhances situational awareness and promotes safer skies for integrated operations involving crewed and uncrewed systems. It features user-friendly command and control software with a built-in traffic display, delivering valuable situational insights. Additionally, it seamlessly integrates with open-source and custom autopilot systems. Thanks to its compact form factor and low power requirements, the MXS Transponder offers an efficient solution for improving aircraft visibility and safety at a cost-effective price.
MXS Transponder Key Features
Micro-SWaP (Size, Weight, and Power)
The MXS Transponder is engineered to minimize size, weight, and power consumption. Its compact design allows for easy installation across various aircraft types, including UAVs. By reducing weight and power demand, the MXS Transponder ensures efficient performance without compromising performance.
Full Diversity with Top and Bottom Antenna Capability
This transponder includes full diversity capabilities, allowing both top and bottom antenna installations. This feature enhances signal reception and transmission, ensuring reliable and stable communication even in challenging operational conditions.
1090 MHz ADS-B In and Out
Featuring both ADS-B in and out capabilities at 1090 MHz frequency, the MXS Transponder improves situational awareness by receiving data from other aircraft and transmitting crucial identification, position, and altitude information. This enhances overall airspace safety by providing essential data to air traffic control and nearby aircraft.
Flexible I/O – RS232, RS422, Ethernet
Designed for seamless integration, the MXS Transponder supports multiple communication interfaces, including RS232, RS422, and Ethernet. This flexibility allows easy integration to existing avionics configurations and ensures efficient data exchange between the transponder with other onboard systems.
One-Box Solution with ADS-B In/Out
Offering a comprehensive, all-in-one design, the MXS Transponder consolidates ADS-B in and out functionality into a single compact unit. This simplifies installation, eliminates the need for additional equipment, and reduces both space requirements and costs.
Open-Source Compatibility and Plug-and-Play Integration
The MXS Transponder is designed for compatibility with open-source solutions and integrates easily with existing technology ecosystems. Whether utilizing custom autopilot systems or open-source software, this plug-and-play functionality ensures seamless operation within existing aircraft frameworks.
With its compact design, advanced capabilities, and flexible integration options, the MXS Transponder is a powerful solution for enhancing aviation safety, efficiency, and performance across both crewed and uncrewed systems.
Click here to find out more, or visit the Sagetech Avionics website.
