CIRUS & CIRUX-EX

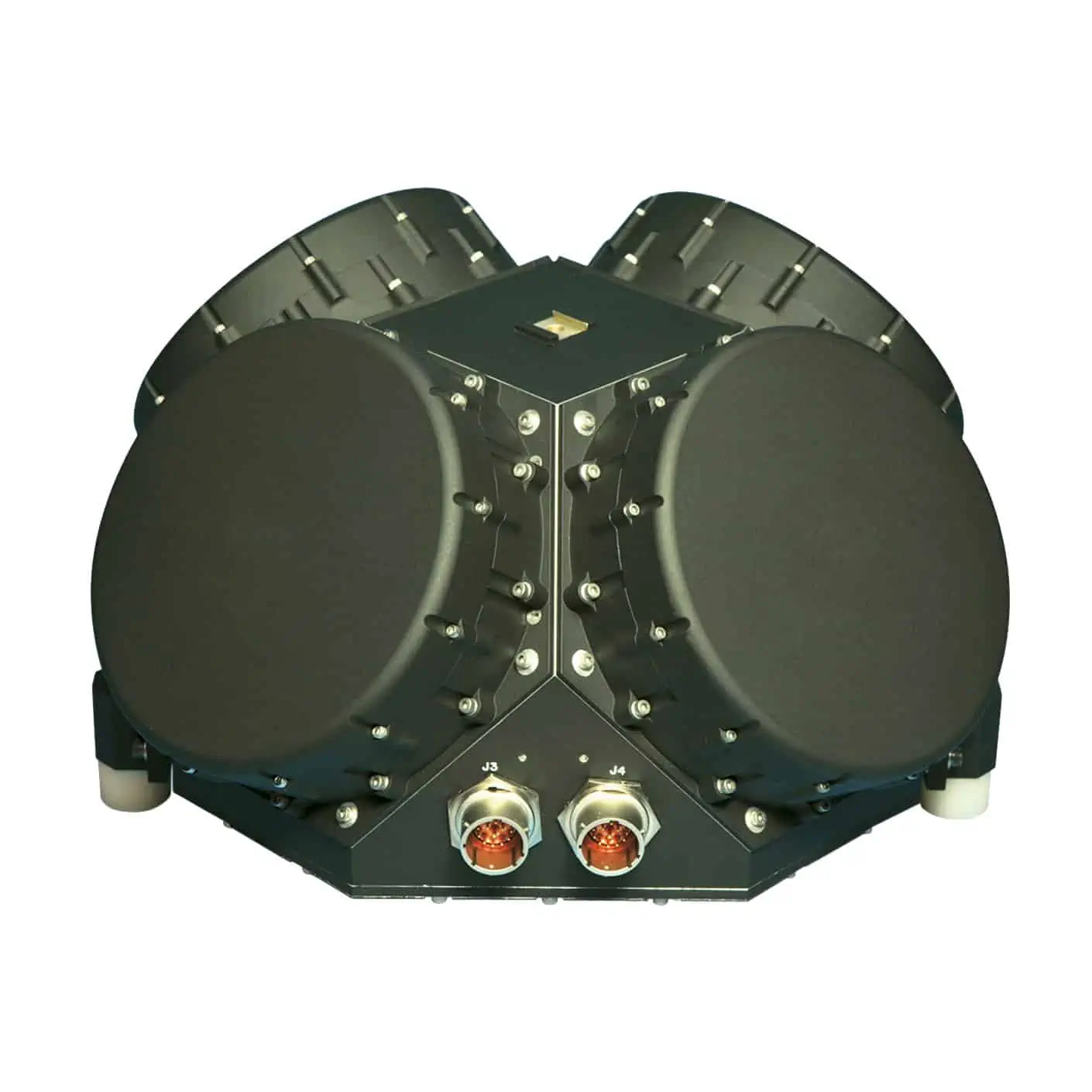

The CIRUS (Compact Inertial Reference Unit for Space) and CIRUS-EX deliver strategic-grade attitude control, platform stabilization and pointing for space and defense applications, integrating four FOG sensors with full redundancy.

The units feature dual-redundant serial interfaces (MIL-STD-1553 and RS-422) for flexible I/O rates, and telemetry output format can be customized for specific user interfaces.

Specifications:

  CIRUS CIRUS-X
Dimensions (fits within cylinder) 14.10 x 8.55 in. (max)
400.1 x 217.2 mm
14.35 x 8.75 in (max)
421.6 x 223.5 mm
Weight 34.0 lbs (15.4 kg) 37.0 lbs (16.8 kg)
Power Consumption 3 gyros operational ≤ 40 W 3 gyros operational ≤ 40 W
Bias Stability 0.0003 °/hr 0.0003 °/hr
ARW 0.000190 °/√hr
(0.000150 available)
0.000125 °/√hr
(< 0.000100 available)
Angular Rate Range > 30 °/sec > 22 °/sec
