Overview GNSS Simulation
By Staff Writer Last updated: August 8th, 2024

GNSS Simulators for Unmanned Systems

GNSS simulation is a method of testing the GNSS receiver that is used by a UAV (unmanned aerial vehicle), UGV (unmanned ground vehicle) or other robotic or autonomous system for position and navigation.

Unmanned vehicles rely on GNSS signals to carry out tasks accurately and safely, and GNSS simulation is used to characterize how their navigation systems will respond under a range of different signal conditions. This can help with a number of design aspects, such as the location of the receiver and antennas within the vehicle, and whether other sensors such as inertial navigation systems may be required.

Live Sky vs Simulation Testing

GNSS simulators provide signals that mimic those emitted by the real-world satellites overhead, and have a number of advantages over “live sky” testing that uses the actual satellite signals. It enables test conditions to be controlled exactly, enabling an extremely high degree of repeatability without needing to worry about atmospheric conditions, signal errors, or how walls and buildings at the test site may affect the signal. It may also be quicker and less costly, as the test drone or vehicle does not need to be deployed.

Single and Multi Constellation Simulators

GNSS simulators may be single-constellation or multi-constellation, providing signals that mimic one or more of the GPS, Galileo, BeiDou, GLONASS, SBAS and QZSS services. Simulators may also be multi-channel and multi-frequency, and some may provide simulation of restricted signals such as the GPS P-code used for military applications.

GPS and GNSS simulation enables the testing of a range of parameters that may affect the navigation and positioning performance of a drone or unmanned vehicle. These include time to first fix, reacquisition time, acquisition and tracking sensitivity, and navigation and timing accuracy. Simulators can also be used to test the response of a system to spoofing and jamming attacks.

Related Articles

GNSS Receivers Successfully Track Simulated Xona PULSAR LEO Signal

This test shows that Hexagon | NovAtel GNSS receivers can track a Spirent Communications-simulated L-band signal identical to the PULSAR signal broadcast by Xona Space Systems’ Low Earth Orbit (LEO) satellites

Jun 12, 2023
SDN500 INS Achieves Success in CAST Navigation Ultra-High-Altitude Flight Simulation

EMCORE Corporation, a leading provider of advanced mixed-signal products that serve the aerospace & defense and broadband communications markets, has...

Nov 24, 2020
Testing UAV GPS Systems with a Simulator

Many unmanned aerial vehicles (UAVs) rely on global navigation satellite systems such as GPS to fly an accurate course. Spirent...

Apr 09, 2018
Spirent Unveils New Automation Software for GPS/GNSS Receiver Validation

Spirent Communications plc, a provider of GPS/GNSS testing solutions, has introduced ‘PT TestBench’ – software to help technology, system and...

Jan 24, 2017
Spirent Develops GPS/GNSS Simulation and Test Solutions for Unmanned Systems

Spirent, a developer of simulation and test solutions for GPS/GNSS satellite-based navigation and positioning in unmanned systems, has partnered with...

Oct 06, 2016

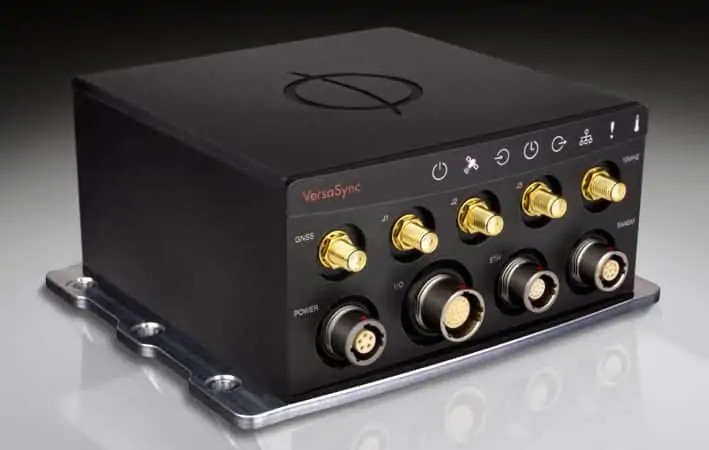

Spectracom Showcases New GPS/GNSS Product Line-Up
