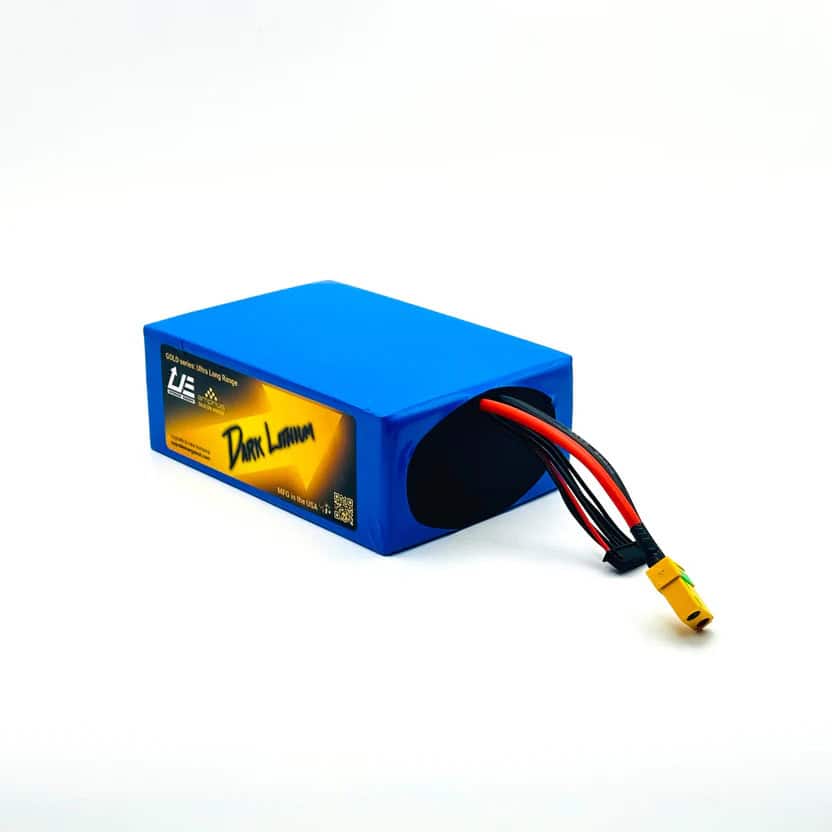

GOLD V1 8S2P 22.2Ah AMPRIUS SA08
Upgrade Energy's GOLD battery packs are designed for the needs of space- and weight-constrained drone platforms, allowing OEMs and integrators to maximize available flight time without increasing MTOW or battery footprint, or to reduce the battery mass needed to achieve a particular flight time. They are ideal for endurance-focused applications that prioritize total stored energy over high thrust performance.
Combining premium Amprius SA08 cells with industry-leading construction and engineering, this battery pack has been thoroughly tested to ensure the utmost in reliability, and features an XT90S discharge connector and a JST-XH balance plug.
Specifications:
| Dimensions (L x W x H): | 15.4 x 10.6 x 5.8 cm |
| Weight: | 1.8 kg |
| Capacity: | 22.2 Ah |
| Voltage: | 20.4 – 33.6V, 27.2V nominal |
| Energy Density: | 335 Wh/kg |
| Watt Hours: | 604 Wh |
| Current: | 50A constant 112A burst (10 sec) 78A burst (2 min) |
| Power: | 1010W constant 3046W burst (10 sec) |
| Temperature Range: | 0 – 70oC |
