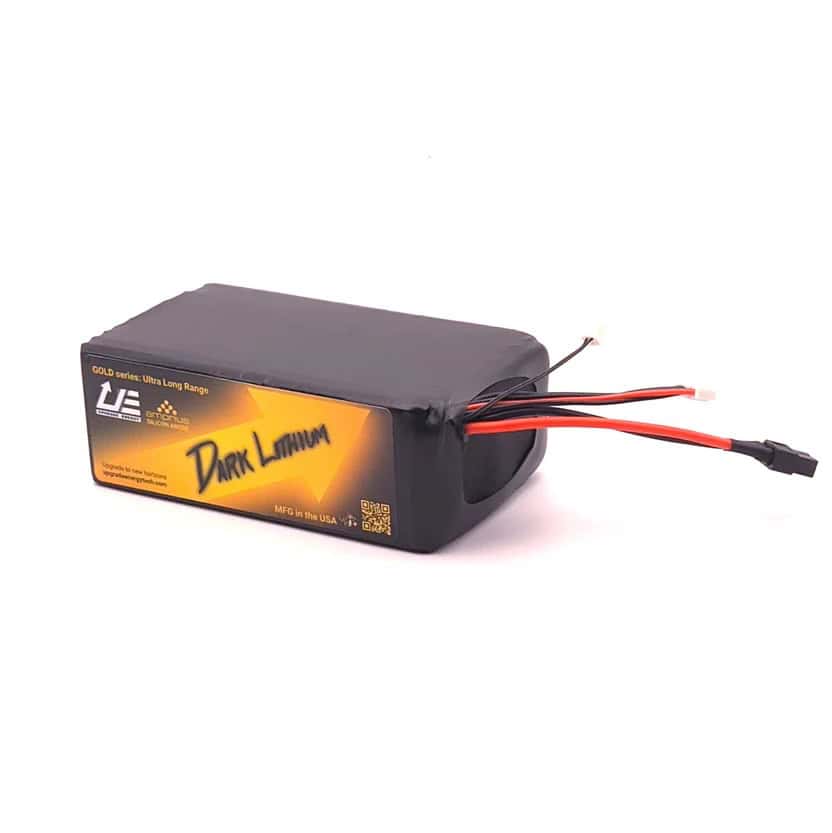

GOLD V1 6S2P 23.68Ah AMPRIUS SA03
Upgrade Energy's GOLD battery packs are designed for the needs of space- and weight-constrained drone platforms, allowing OEMs and integrators to maximize available flight time without increasing MTOW or battery footprint, or to reduce the battery mass needed to achieve a particular flight time. They are ideal for endurance-focused applications that prioritize total stored energy over high thrust performance.
Combining premium Amprius SA03 cells with industry-leading construction and engineering, this battery pack has been thoroughly tested to ensure the utmost in reliability, and features an XT60 discharge connector and a JST-XH balance plug.
Specifications:
| Dimensions (L x W x H): | 14.7 x 8.4 x 5.5 cm |
| Weight: | 1.278 kg |
| Capacity: | 23.7 Ah |
| Voltage: | 15.3 – 25.2V, 20.4V nominal |
| Energy Density: | 378 Wh/kg |
| Watt Hours: | 483 Wh |
| Current: | 19A constant 72A burst (10 sec) 50A burst (2 min) |
| Power: | 313W constant 1469W burst (10 sec) |
| Temperature Range: | 0 – 70oC |
