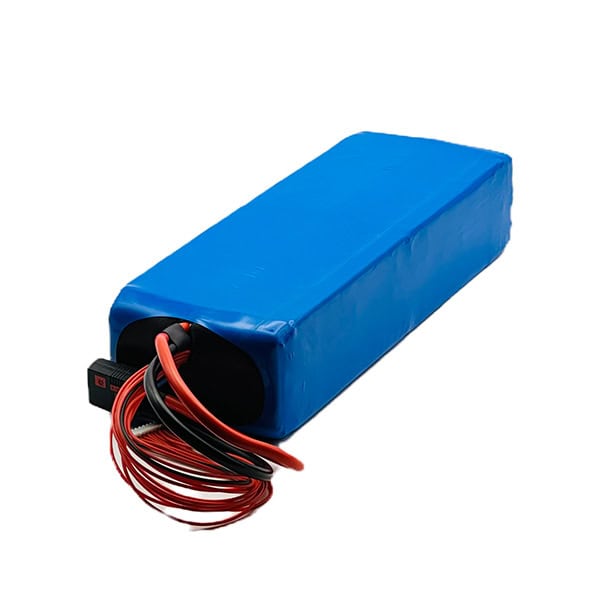

GOLD V1 12S3P 33.3Ah AMPRIUS SA08 Long
Upgrade Energy's GOLD battery packs are designed for the needs of space- and weight-constrained drone platforms, allowing OEMs and integrators to maximize available flight time without increasing MTOW or battery footprint, or to reduce the battery mass needed to achieve a particular flight time. They are ideal for endurance-focused applications that prioritize total stored energy over high thrust performance.
Combining premium Amprius SA08 cells with industry-leading construction and engineering, this battery pack has been thoroughly tested to ensure the utmost in reliability, and features an XT90S or AS150 discharge connector and a JST-XH 13p balance plug.
Specifications:
| Dimensions (L x W x H): | 30.5 x 10 x 6 cm |
| Weight: | 3.9 kg |
| Capacity: | 33.3 Ah |
| Voltage: | 30.6 – 50.4V, 40.8V nominal |
| Energy Density: | 348 Wh/kg |
| Watt Hours: | 1359 Wh |
| Current: | 64A constant 168A burst (10 sec) 118A burst (2 min) |
| Power: | 1707W constant 6854W burst (10 sec) |
| Temperature Range: | 0 - 70oC |
