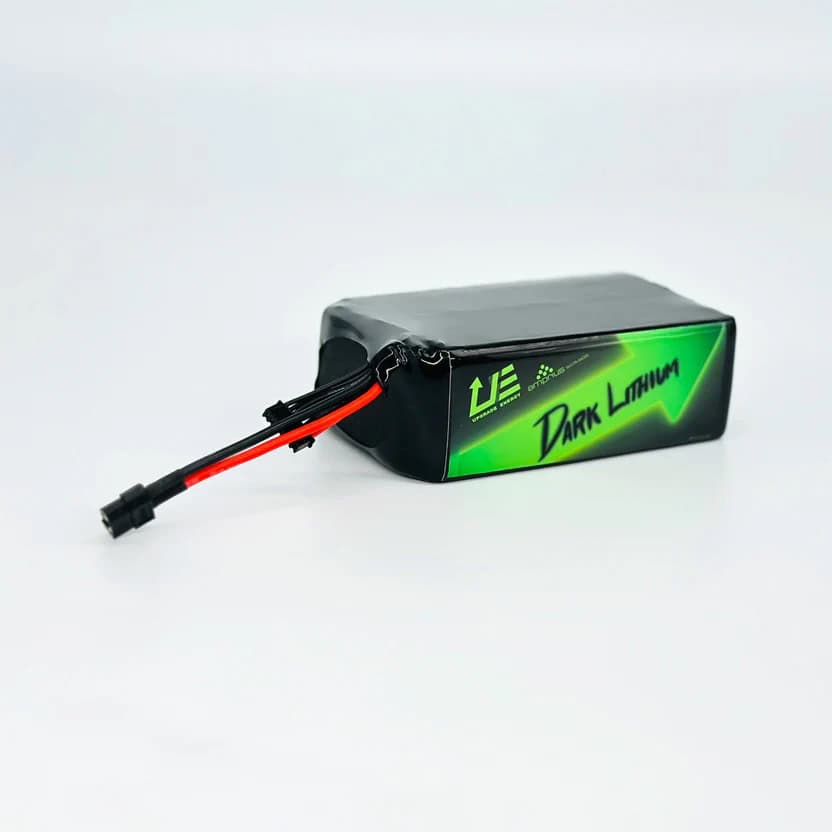

GOLD V1 12S1P 11.1Ah AMPRIUS SA08
Upgrade Energy's GOLD battery packs are designed for the needs of space- and weight-constrained drone platforms, allowing OEMs and integrators to maximize available flight time without increasing MTOW or battery footprint, or to reduce the battery mass needed to achieve a particular flight time. They are ideal for endurance-focused applications that prioritize total stored energy over high thrust performance.
Combining premium Amprius SA08 cells with industry-leading construction and engineering, this battery pack has been thoroughly tested to ensure the utmost in reliability, and features an XT90S or XT60 discharge connector and a JST-XH balance plug.
Specifications:
| Dimensions (L x W x H): | 15.3 x 8.2 x 5.3 cm |
| Weight: | 1.4 kg |
| Capacity: | 11.1 Ah |
| Voltage: | 30.6 – 50.4V, 40.8V nominal |
| Energy Density: | 323 Wh/kg |
| Watt Hours: | 453 Wh |
| Current: | 26A constant 56A burst (10 sec) 39A burst (2 min) |
| Power: | 862W constant 2285W burst (10 sec) |
| Temperature Range: | 0 - 70oC |
