XPedite6401 XMC-PrPMC Mezzanine Module

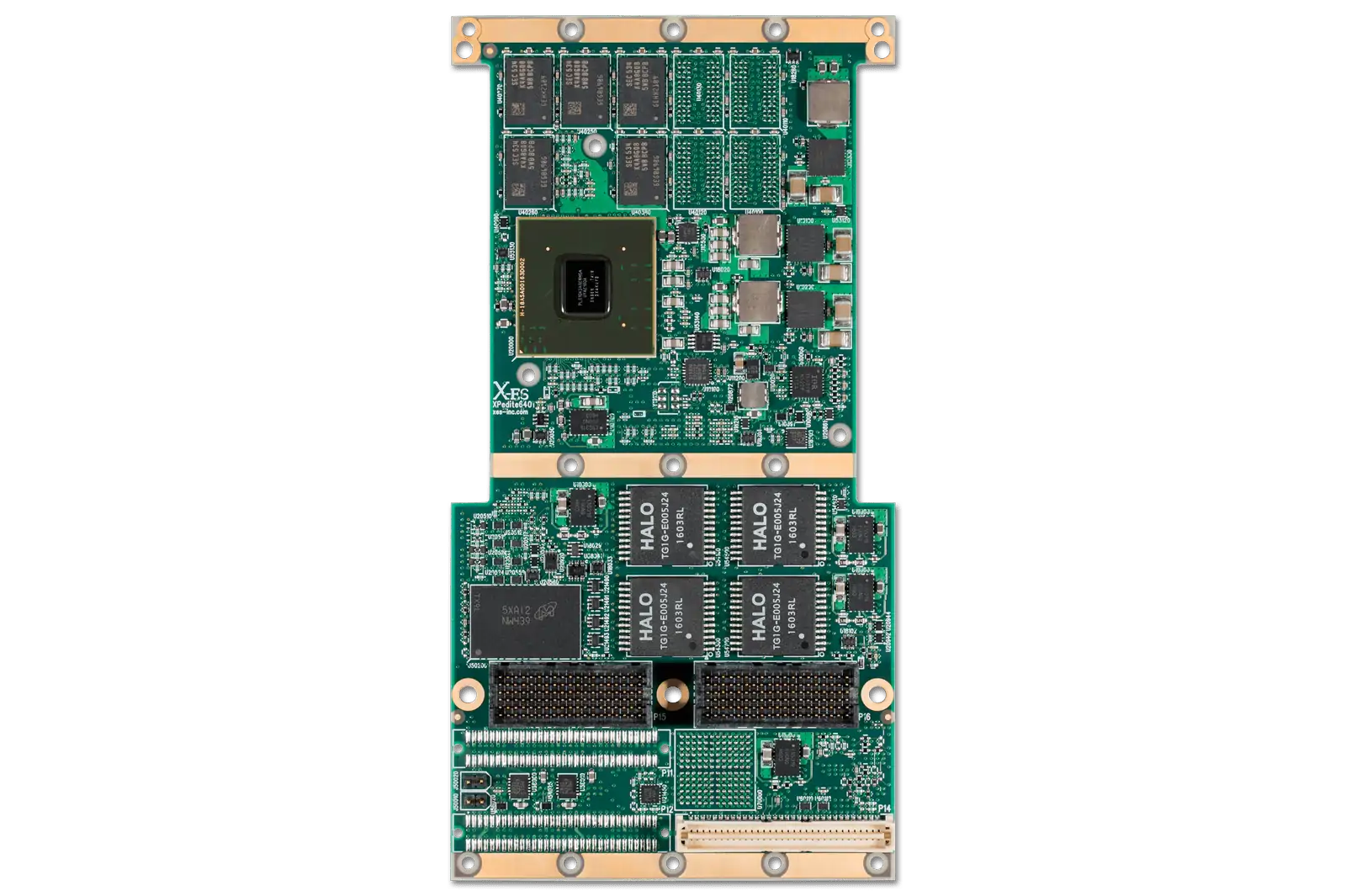

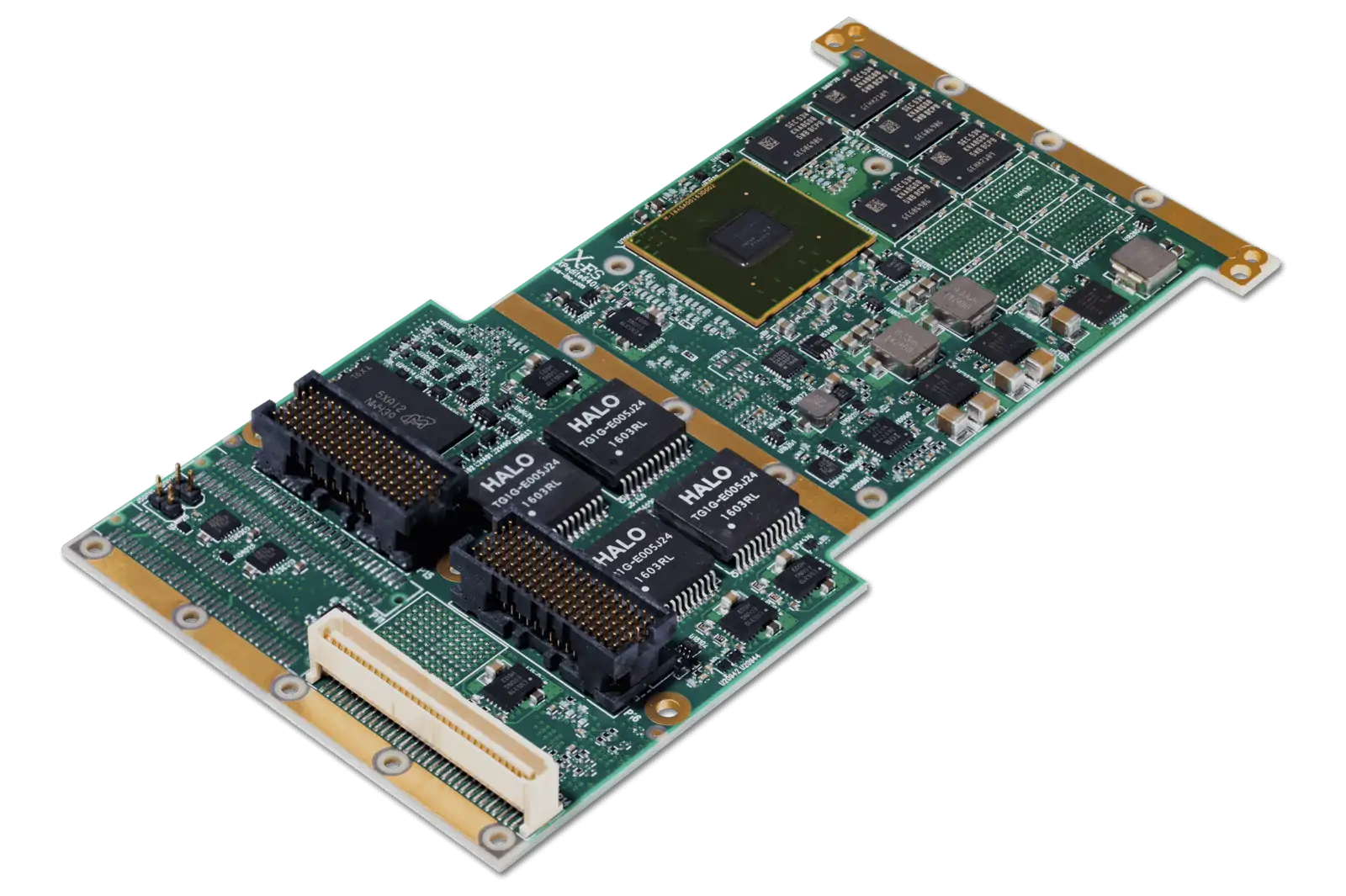

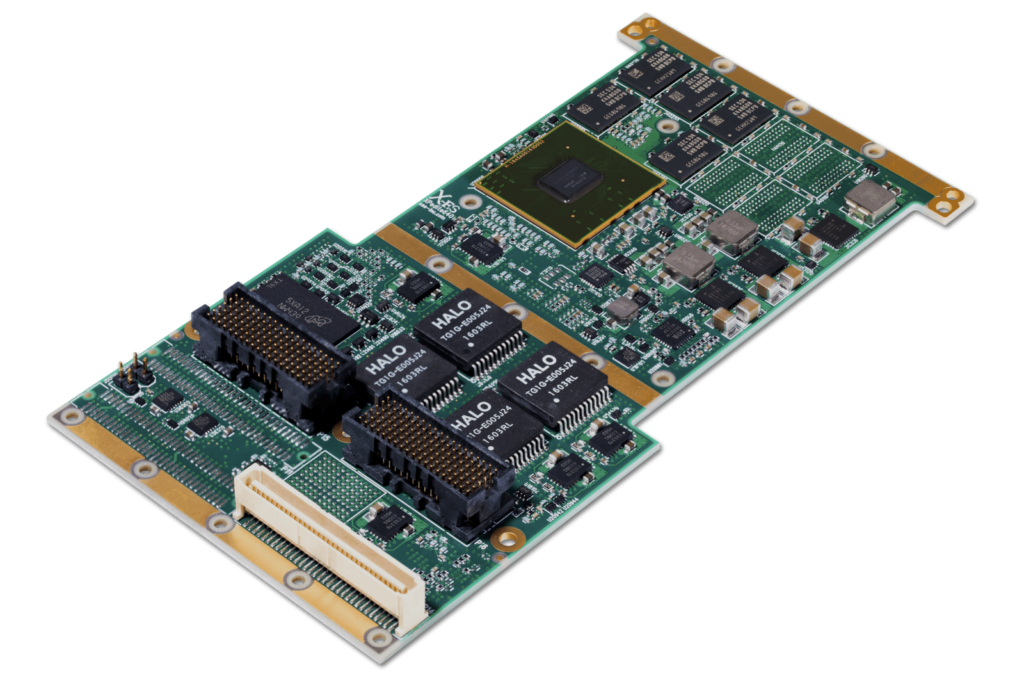

The XPedite6401 is an XMC/PrPMC System-on-Chip mezzanine module based around an NXP QorIQ LS1043A processor with four 64-bit Arm Cortex-A53 cores operating at up to 1.8 GHz. With a small form factor, high bandwidth and superior network performance, it is ideal for rugged embedded computing solutions.

The XPedite6401 supports up to 8 GB of DDR4-1600 ECC SDRAM memory in its default configuration with the LS1043A processor. Up to 16 GB of DDR4-2100 ECC SDRAM can be addressed when the embedded computer is configured with the LS1088A or LS1046A processor.

The I/O connectors provide interfacing for 10/100/1000BASE-T, 10GBASE-KR or 1000BASE-X Ethernet ports, RS-232/422/485 serial ports, USB 2.0 and 3.0 ports, and a SATA port capable of 6 Gb/s.
