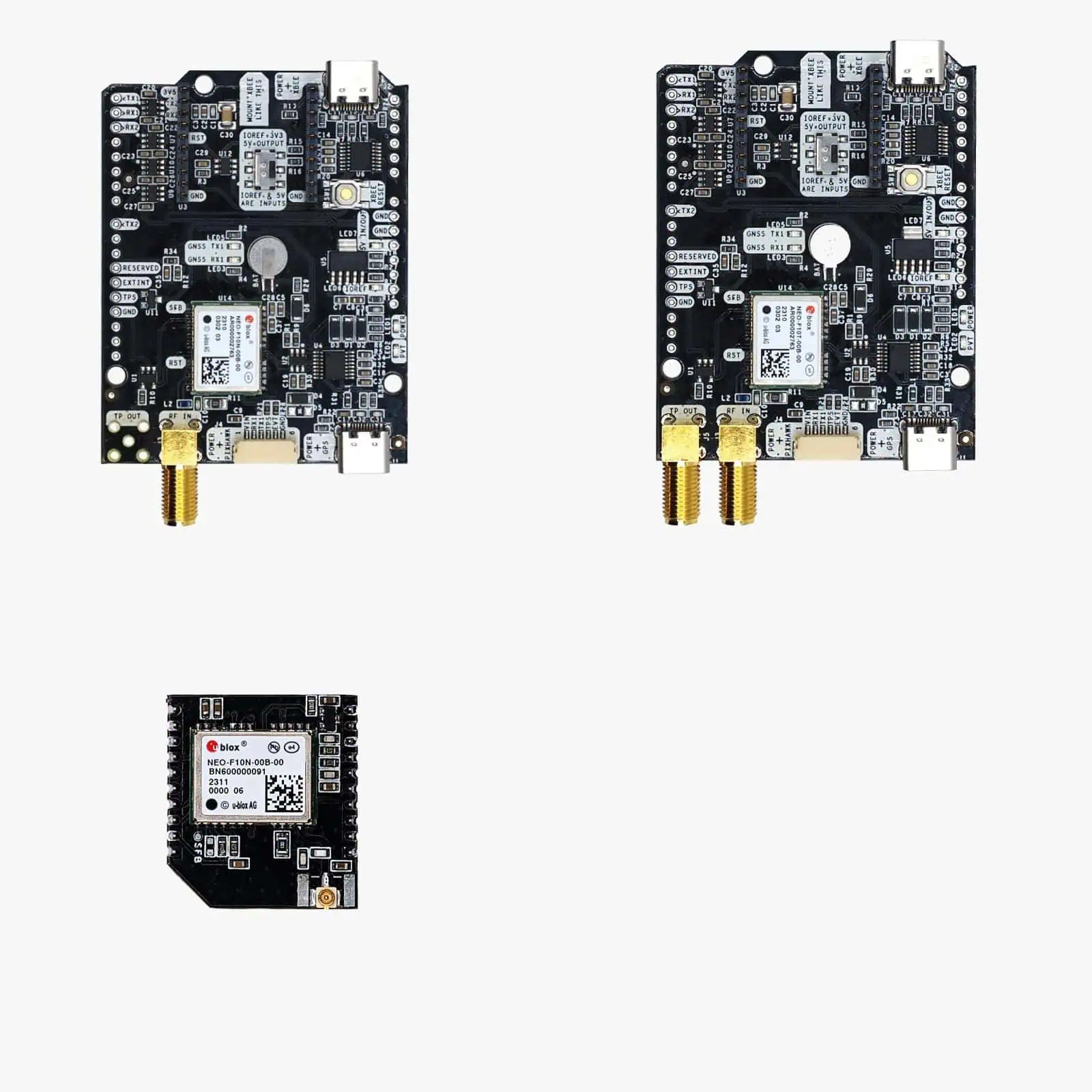

simpleGNSS Series GNSS Receivers
The simpleGNSS range of OEM receivers, based on the u-blox F10 module, provides dual-band tracking with sub-meter accuracy, and features excellent multipath mitigation for enhanced accuracy in urban areas. The simpleGNSS Timing variant also provides a nanosecond-accurate timepulse output that is ideal for accurately timestamping sensor data or for synchronizing different base stations.
The boards are fully compatible with Arduino, STM32 Nucleo, and Raspberry Pi, and can also be used as an external GNSS receiver for Pixhawk-based drone flight controllers.
Specifications:
 simpleGNSS Pro |
 simpleGNSS Timing |
|
| Dimensions: | 69 x 53 mm | |
| Weight: | 24g | 25g |
| Signals: | GPS/QZSS: L1C/A (1575.42 MHz), L5 (1176.450 MHz) Beidou: B1C (1575.42 MHz), B2a (1176.450 MHz) Galileo: E1-B/C (1575.42 MHz), E5a (1176.450 MHz) Navic: SPS-L5 (1176.450 MHz) SBAS: Egnos, WAAS, GAGAN, MSAS, SouthPAN |
|
| Accuracy: | 0.9m standalone 0.7m with SBAS |
|
| Update Rate: | 10 Hz 20 Hz in low-accuracy mode |
|
| Timepulse: | N/A | Accuracy: 10ns Accuracy (jitter removed): 5ns Jitter: +-8ns Frequency: from 0.25Hz to 10MHz (default 1Hz) |
