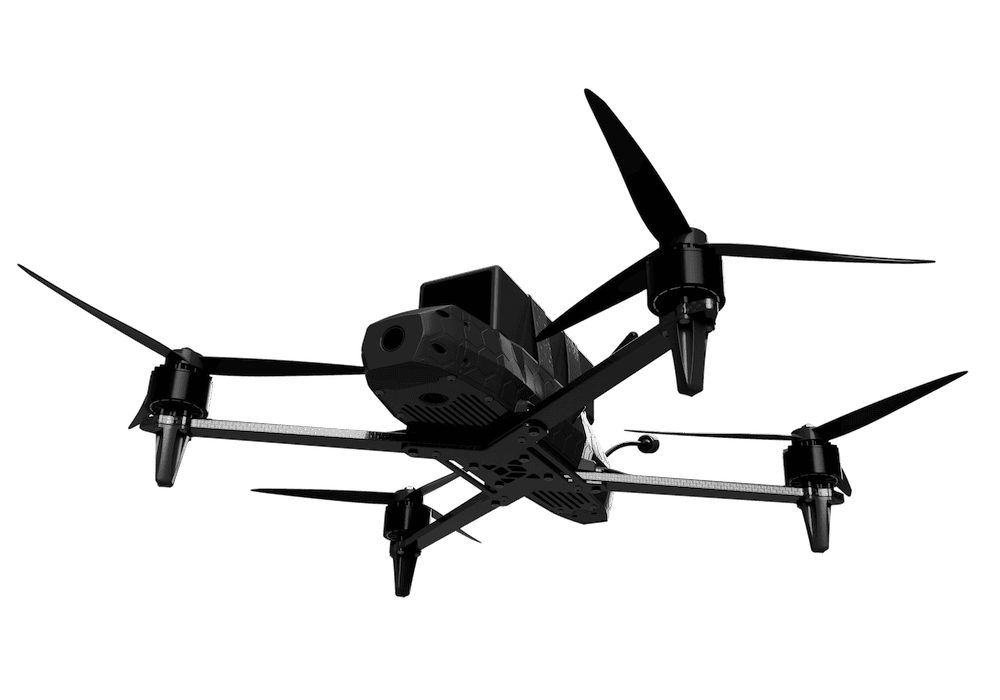

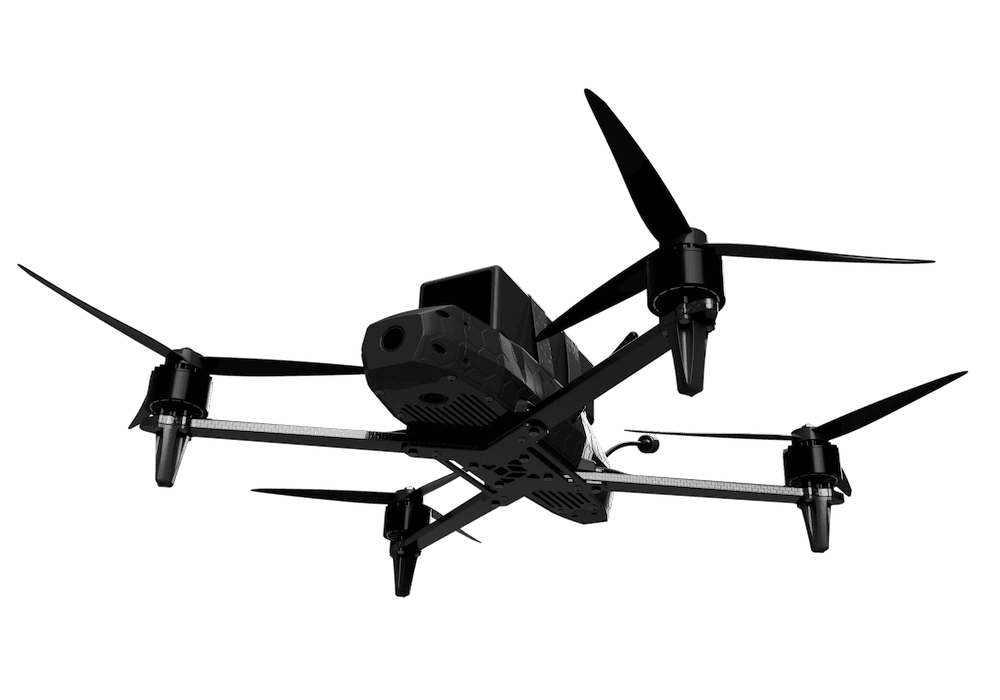

Patron FPV is a versatile and highly maneuverable quadcopter drone platform that is ideal for training on autonomous and remotely piloted missions, as well as for precision strike operations. Powered by the NVIDIA Jetson Orin Nano computing module, it offers a suite of AI-driven capabilities that enhance mission success rates with minimal training requirements, including:
Head tracking for intuitive target selection
Real-time object detection driven by deep neural networks
Terminal guidance algorithms that enable autonomous strike capabilities from 300 to 400 meters away
Thanks to the system's open architecture, it can be easily updated with new AI and deep neural network algorithms, enabling it to be future-proofed against evolving threats on the battlefield. All algorithms are destroyed should the unit be captured.
Patron FPV is equipped with a high-resolution camera payload with up to 10x digital zoom, and can process video feeds of up to 4K at 28fps in real time. It is provided with an analog radio as standard, and can be optionally upgraded with digital datalinks by Doodle Labs or Silvus Technologies.
Specifications:
| Airframe Length: | 10” |
| Max Payload Capacity: | 3kg |
| Max Range: | 14 km |
| Max Speed: | 100 km/h |
| Flight Controller: | DroneCore Lite with 40 TOPS AI and FMU |
| VTX: | Analog 2.5W adjustable video transmitter; 5645-5945 MHz 40 ch. |
| RX: | ELRS 915 MHz 100mW or ELRS 2400 MHz 100mW |
| Optional Digital C2 Link: | MANET - Nano Mesh Rider, range 10+km depending on antenna; Max. data throughput 40 Mbps at 10 meters Frequencies: 2400 - 2482 MHz / 1350-2510 MHz / L, M2 - M6 or 1625 - 2510 MHz / M1 - M6 |
| Front-Facing Camera: | Digital 1/4″ 8Mpx Sony chip, 90°diagonal FOV MIPI/CSI, continuous digital zoom capability, optional IR cam |
| Downwards-Facing Camera: | 1MP*4 Quadrascopic OV9281 Global Shutter Monochrome |
