New Gooseneck Omni Antenna Line Unveiled

L-com’s lightweight and compact line of gooseneck omni antennas are designed for use with UAVs, covering a wide range of frequencies for communications, surveillance, and more By Abi Wylie / 07 Jun 2024
Follow UST

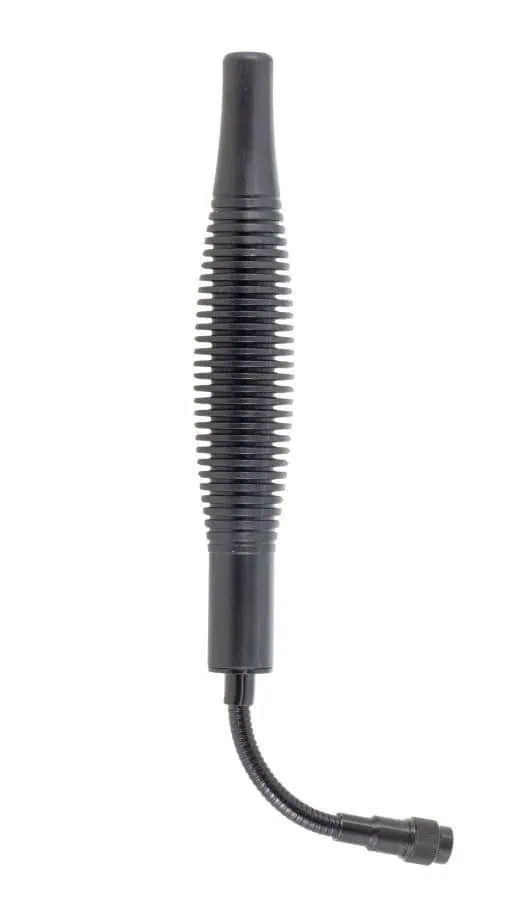

L-com has introduced a new line of gooseneck omni antennas, able to be repositioned and bent at any angle, which are available in a wide range of frequencies and radiation patterns.

The new antennas are designed for use with unmanned aerial vehicles (UAV), walkie-talkie communication, video transmission, surveillance, manpack radios, and more.

L-com is an Infinite Electronics brand and a supplier of wired and wireless connectivity products. The company’s gooseneck antennas offer several advantages over traditional fixed-mount antennas.

  • They are flexible and versatile. They can be bent and repositioned at any angle, allowing users to optimize signal reception and transmission.
  • They are durable, made from rugged materials such as fiberglass and metal, which gives them resistance to shock, vibration and other environmental hazards.
  • They are lightweight and compact, making them easy to transport and deploy in the field.

L-com’s gooseneck omni antennas cover a wide range of operating frequencies, from 27 to 2700 MHz. The models are offered in single-band or dual-band frequency options. Choose from single bands of 27, 155, 460 or 2450 MHz. Dual-band options are 144/430 or 698-960/1710-2700 MHz.

These omnidirectional antennas offer a low voltage standing wave ratio (VSWR) of 1.5:1. This ensures minimal power loss due to reflection, as well as high efficiency in transfer of power from the transmitter to the antenna.

The antennas also have vertical polarization, an impedance of 50 ohms, a maximum input power of 10 watts, and typical gain readings of 3 dBi to 5.5 dBi. Their connectors are the widely popular SMA male or female.

The gooseneck antennas are 12.4 inches long and are protected by a thermoplastic elastomer (TPE) radome. TPE is known for its flexibility, durability and resistance to environmental factors. The antennas are rated to withstand temperatures from -40°C to +80° C (-40° F to +176 F).

Product Line Manager Kevin Hietpas said; “These innovative gooseneck antennas provide comprehensive frequency coverage and can be easily positioned for superior reception and transmission. Their sturdy and compact form factor ensures they are field-ready and reliable.”
