Seawater Batteries to Power Long-Range Unmanned Underwater Vehicles

By Mike Ball / 19 Jul 2017
Follow UST

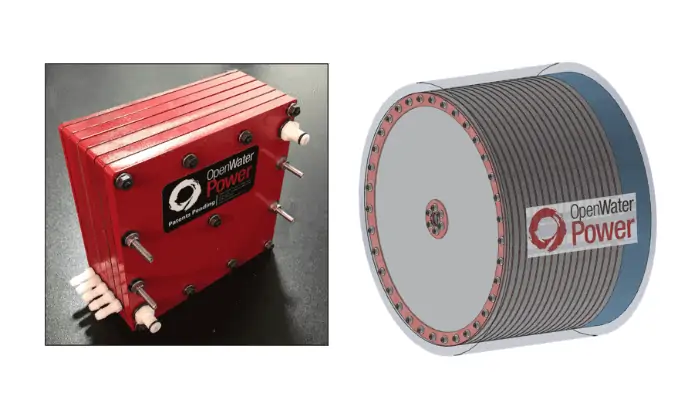

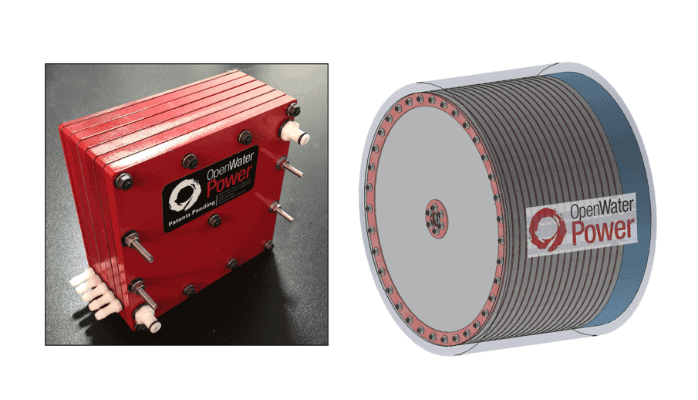

OpenWater Power UUV battery

MIT has announced that its spinout company Open Water Power (OWP), recently acquired by major tech firm L3 Technologies, has developed a novel aluminum-water power system that will improve the range of unmanned underwater vehicles (UUVs).

The power systems could find a wide range of uses, including helping UUVs dive deeper, for longer periods of time, into the ocean’s abyss to explore ship wreckages, map the ocean floor, and conduct research. They could also be used for long-range oil prospecting out at sea and various military applications.

OWP is currently working with the U.S. Navy to replace batteries in acoustic sensors designed to detect enemy submarines. The startup will soon launch a pilot with Riptide Autonomous Solutions, which will use the UUVs for underwater surveys. Currently, Riptide’s UUVs travel roughly 100 nautical miles in one go, but the company hopes OWP can increase that distance to 1,000 nautical miles.

“Everything people want to do underwater should get a lot easier,” says co-inventor Ian Salmon McKay, who co-founded OWP with fellow graduates Thomas Milnes and Ruaridh Macdonald.

Most UUVs use lithium-based batteries, which have several issues. They are known to catch fire, meaning that UUV-sized batteries are generally not shippable by air. Their energy density is limited, meaning that expensive service ships carry UUVs to sea, recharging the batteries as necessary. The batteries also need to be encased in expensive metal pressure vessels.

OWP’s power system consists of an alloyed aluminum, a cathode alloyed with a combination of elements (primarily nickel), and an alkaline electrolyte that is positioned between the electrodes. When a UUV equipped with the power system is placed in the ocean, sea water is pulled into the battery, and is split at the cathode into hydroxide anions and hydrogen gas. The hydroxide anions interact with the aluminum anode, creating aluminum hydroxide and releasing electrons. Those electrons travel back toward the cathode, donating energy to a circuit along the way to begin the cycle anew. Both the aluminum hydroxide and hydrogen gas are jettisoned as harmless waste. Components are only activated when flooded with water. Once the aluminum anode corrodes, it can be replaced at low cost.

McKay says. “Our power system can drink sea water and discard waste products,” he says. “But that exhaust is not harmful, compared to exhaust of terrestrial engines.”

With the aluminum-based power system, UUVs can launch from shore without the need for service ships, opening up new opportunities and dropping costs. With oil prospecting, for example, UUVs currently used to explore the Gulf of Mexico need to hug the shores, covering only a few pipeline assets. OWP-powered UUVs could cover hundreds of miles and return before needing a new power system, covering all available pipeline assets.

After the Malaysian Airlines crash in 2014, UUVs were recruited to search areas that were infeasible for equipment on the other vessels. McKay said: “In looking for the debris, a sizeable amount of the power budget for missions like that is used descending to depth and ascending back to the surface, so their working time on the sea floor is very limited,” he says. “Our power system will improve on that.”

The OWP technology started as the co-founders’ side project, which was modified throughout two MIT classes and a lab.
The class was charged with developing an alternate power source for UUVs. McKay gambled on an energy-dense but challenging element: aluminum. One major challenge with aluminum batteries is that certain chemical issues make it difficult to donate electrons to a circuit. Additionally, the product of the reactions, the aluminum hydroxide, sticks to the electrode’s surface, inhibiting further reaction. McKay was able to overcome the first challenge by making a gallium-rich alloyed aluminum anode that successfully donated electrons, but it corroded very quickly.

Seeing potential in the battery, Milnes joined McKay in further developing the battery as a side project. The two began developing electrolytes and alloys that inhibit parasitic corrosion processes and prevent that aluminum hydroxide layer from forming on the anode.

Establishing themselves at Greentown Labs in Somerville, Massachusetts, where the company still operates with about 10 employees, OWP further refined the power system’s design. The system now uses a pump to circulate the electrolyte, scooping up unwanted aluminum hydroxide on the anode and dumping it onto a custom precipitation trap. When saturated, the traps with the waste are ejected and replaced automatically. The electrolyte prevents marine organisms from growing inside the power system.

Now OWP’s chief science officer, McKay says the startup owes much of its success to MIT’s atmosphere of innovation, where many of his professors readily offered technical and entrepreneurial advice and allowed him to work on extracurricular projects.

“It takes a village,” McKay says. “Those classes and that lab are where the idea took shape. People at MIT were doing strong science for science’s sake, but everyone was keenly aware of the possibility of bringing technologies to market. People were always having those great ‘What if?’ conversations — I probably had three to four different startup ideas in various stages of gestation at any given time, and so did all my friends. It was an environment that encouraged the playful exchange of ideas, and encouraged people to take on side projects with real prizes in mind.”
