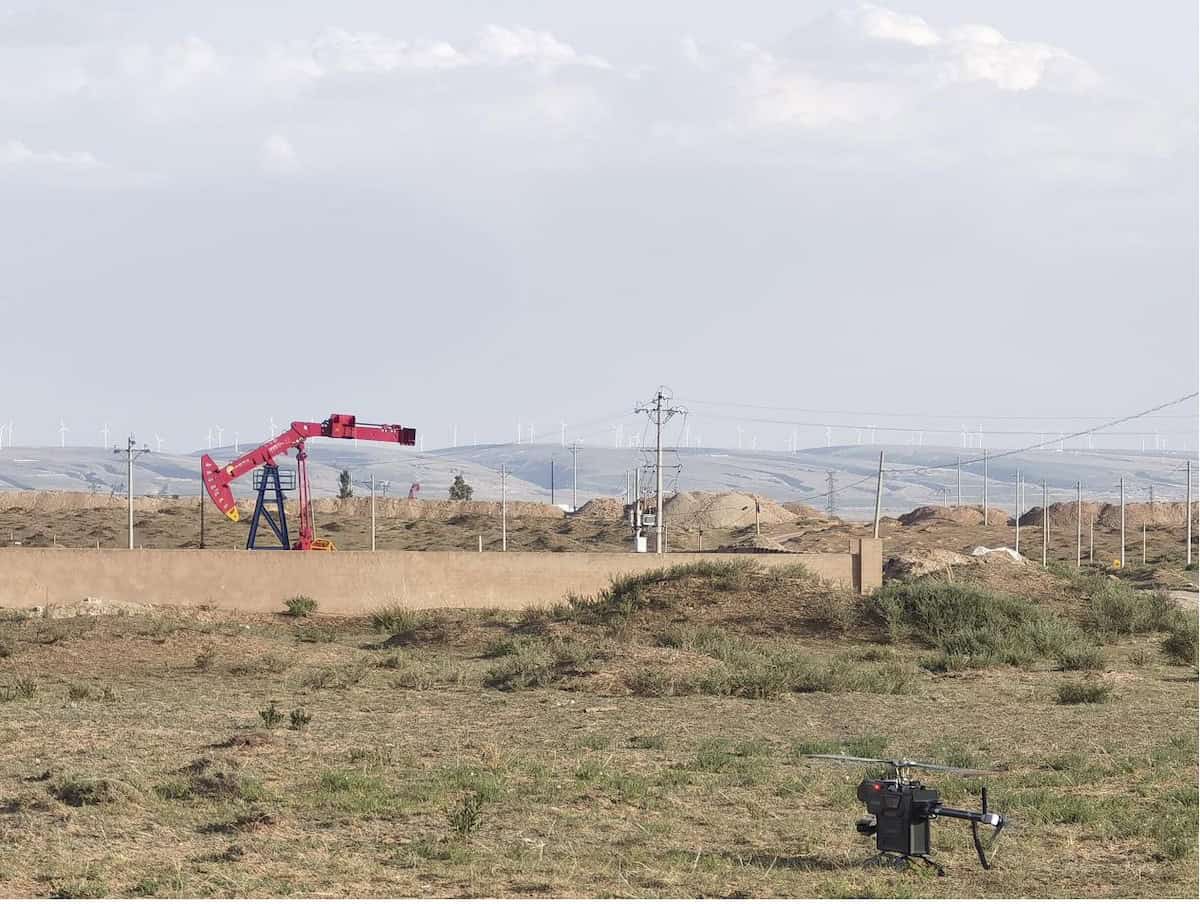

Ziyan UAS has outlined the effectiveness of its Ranger P2X unmanned helicopter as a solution for oil and gas pipeline inspection, detailing its ability to identify potential hazards around the pipeline and monitor surface methane concentrations in real-time.
Limitations of Traditional Inspection Methods
For national energy security, the safe operation of oil and gas pipelines is essential. Traditional inspection methods have proven inadequate for the precision and accuracy required.
Manual Inspections
Manual inspections have long been a standard method for pipeline monitoring. This approach involves personnel inspecting pipelines on foot, which is challenging in rugged terrain. It is costly, labor-intensive, and particularly inefficient for extensive, long-distance pipelines.
Fiber Optic or Electronic Sensors
Fiber optic or electronic sensors analyze vibrations around pipelines by installing fiber optic sensors. These methods have high error rates, limited operational ranges, and high costs.
They also cannot provide real-time images, which limits their effectiveness in emergencies where timely decision-making is crucial.
Ranger P2X Advantages and Applications
To address the limitations of traditional inspection methods, Ziyan has developed the Ranger P2X long-endurance inspection solution for enhanced pipeline safety and efficiency.
Convenient Pipeline Routing and Construction
The Ranger P2X drone quickly and thoroughly gathers terrain and topographical data, offering a scientific basis for pipeline routing.
It also assists construction teams in moving efficiently into the construction phase by analyzing site conditions like terrain, traffic, and the surrounding environment.
Efficient Routine Inspections

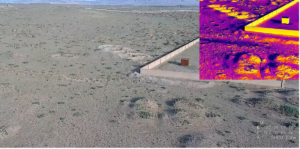

The Ranger P2X drone can be equipped with sensors for visible light, infrared thermal imaging, and laser rangefinding.
Using AI-driven recognition technology, it rapidly detects potential hazards around the pipeline, including building encroachments, vehicles, and earthworks, and promptly communicates this information.
Additionally, it features a remote speaker system to detect, deter, and prevent pipeline damage and oil theft, while also providing on-site evidence.
Compared to multi-rotor drones with limited endurance and vertical take-off fixed-wing drones with numerous take-off and landing restrictions, the Ranger P2X offers notable advantages for long-distance and complex environmental inspections.
Its modular design allows for easy assembly and disassembly in just three minutes, facilitating transport and setup, and significantly reducing preparation and recovery time.
With a flight time of up to 120 minutes, the Ranger P2X covers a larger inspection area in a single flight, reducing the need for frequent battery changes and enhancing operational efficiency.
The ground-based flight technology adapts to terrain changes, effectively navigating complex landscapes and aiding in precise anomaly detection.
Methane Leak Detection
Flange leaks or pipeline damage during operations can lead to significant gas leaks, posing explosion risks and severe safety hazards. The Ranger P2X, equipped with a laser methane leak detection device, monitors surface methane concentrations in real-time, aiding in the rapid detection of potential leaks.
In the oil and gas pipeline industry, drone technology is increasingly used for route planning and intelligent inspections. This technology enhances inspection efficiency, reduces operational costs, and improves the safety of inspection personnel.
Ziyan plans to partner with ecological organizations to advance pipeline safety management through innovative drone technologies and inspection solutions, driving the industry towards a smarter and more efficient future.
