Remotely Operated Underwater Vehicles with ROV Mission Software for Research, Survey and Inspection

RJE Oceanbotics Visit Website

RJE Oceanbotics is a leading manufacturer of state-of-the-art underwater ROVs (remotely operated vehicles) that are as easy to pilot underwater as aerial drones, providing a smooth, intuitive experience for marine professionals.

Our deep water ROV robot solutions allow you to complete missions faster, easier and more reliably than ever before, and are ideally suited to a wide range of industries and applications, including aquaculture, military and security, scientific research, and underwater survey.

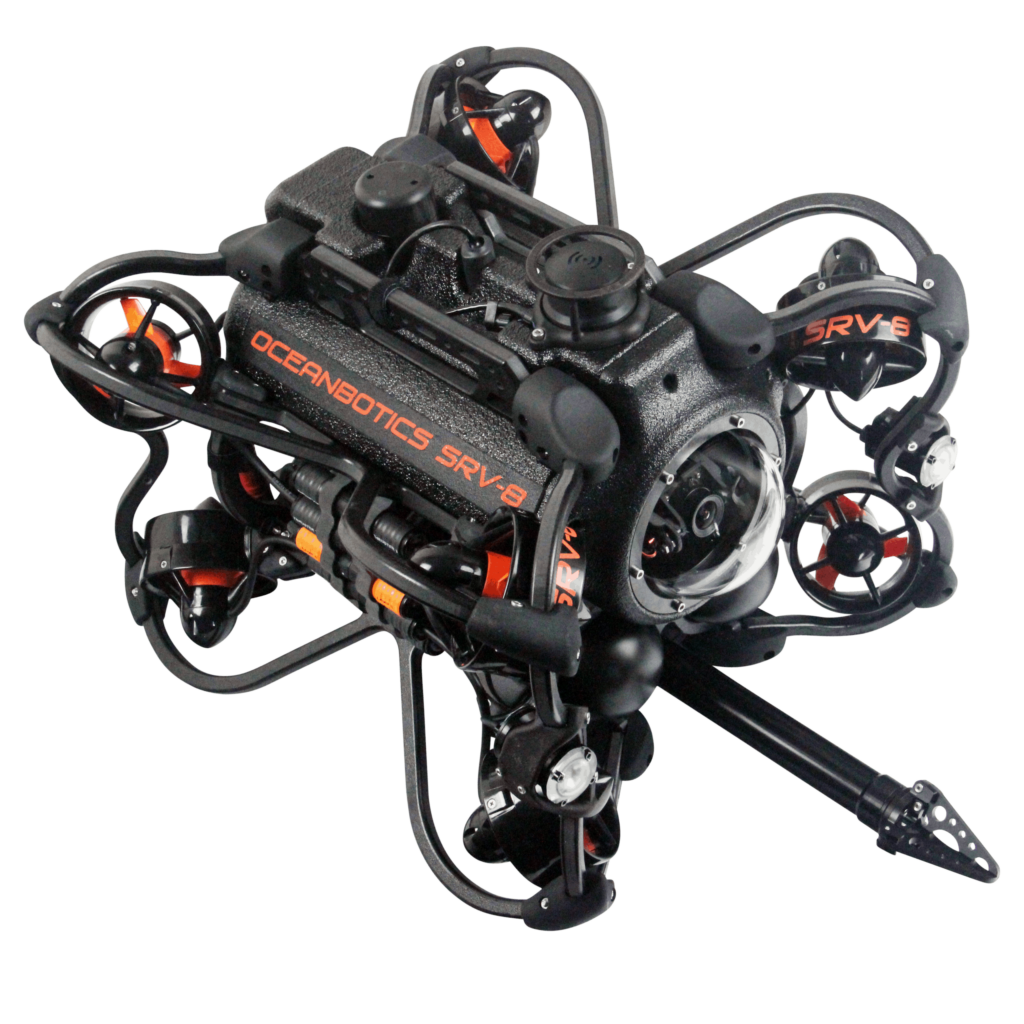

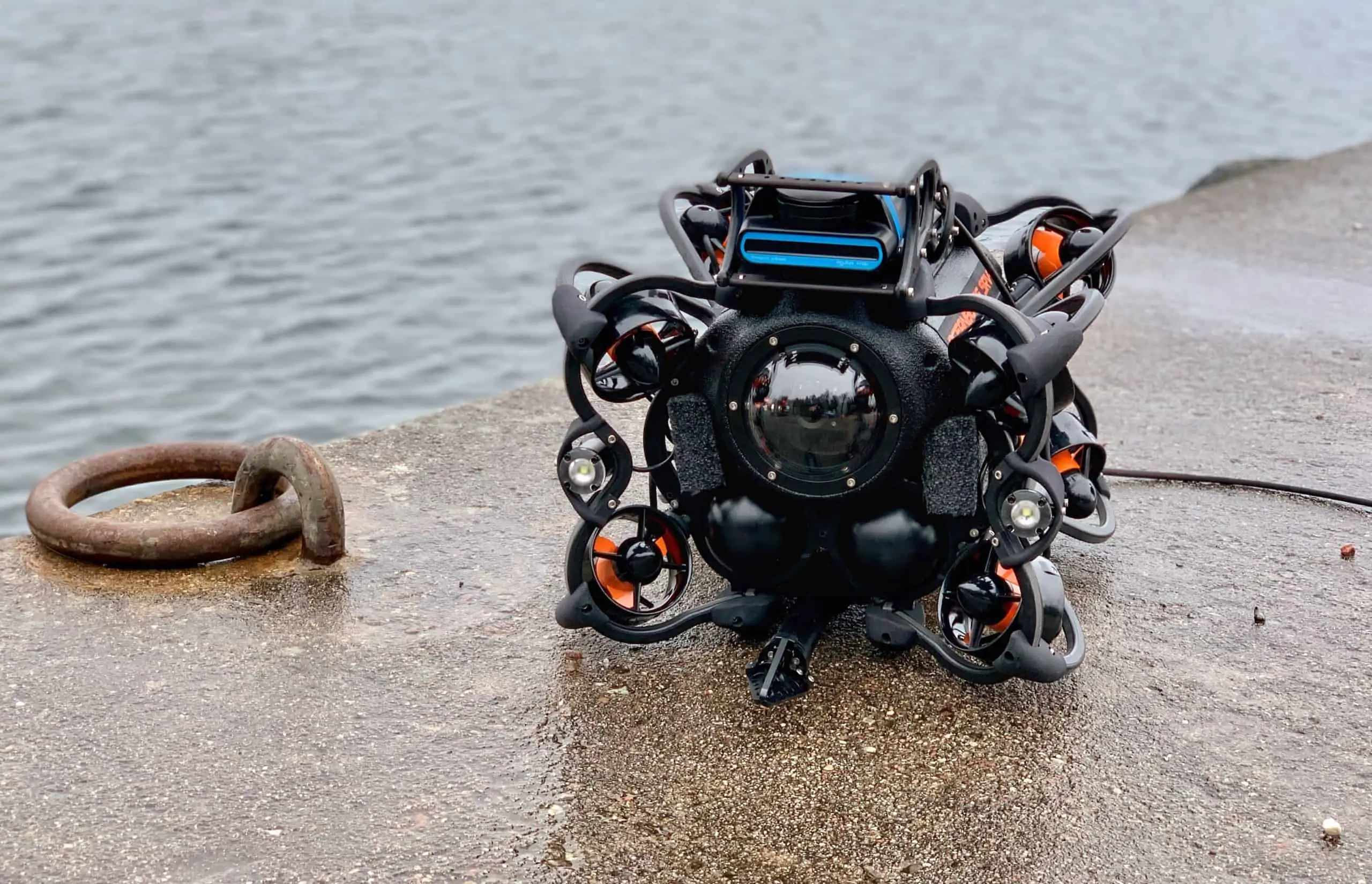

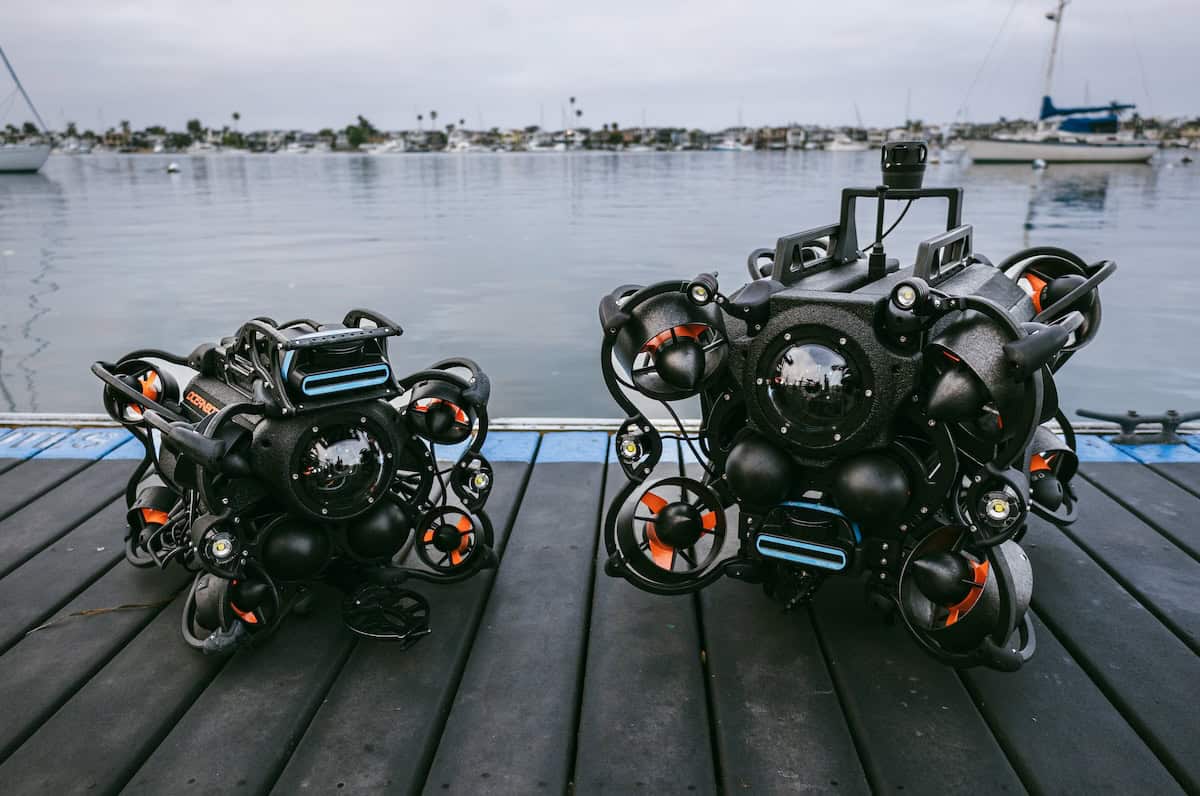

ROV robot for underwater inspections

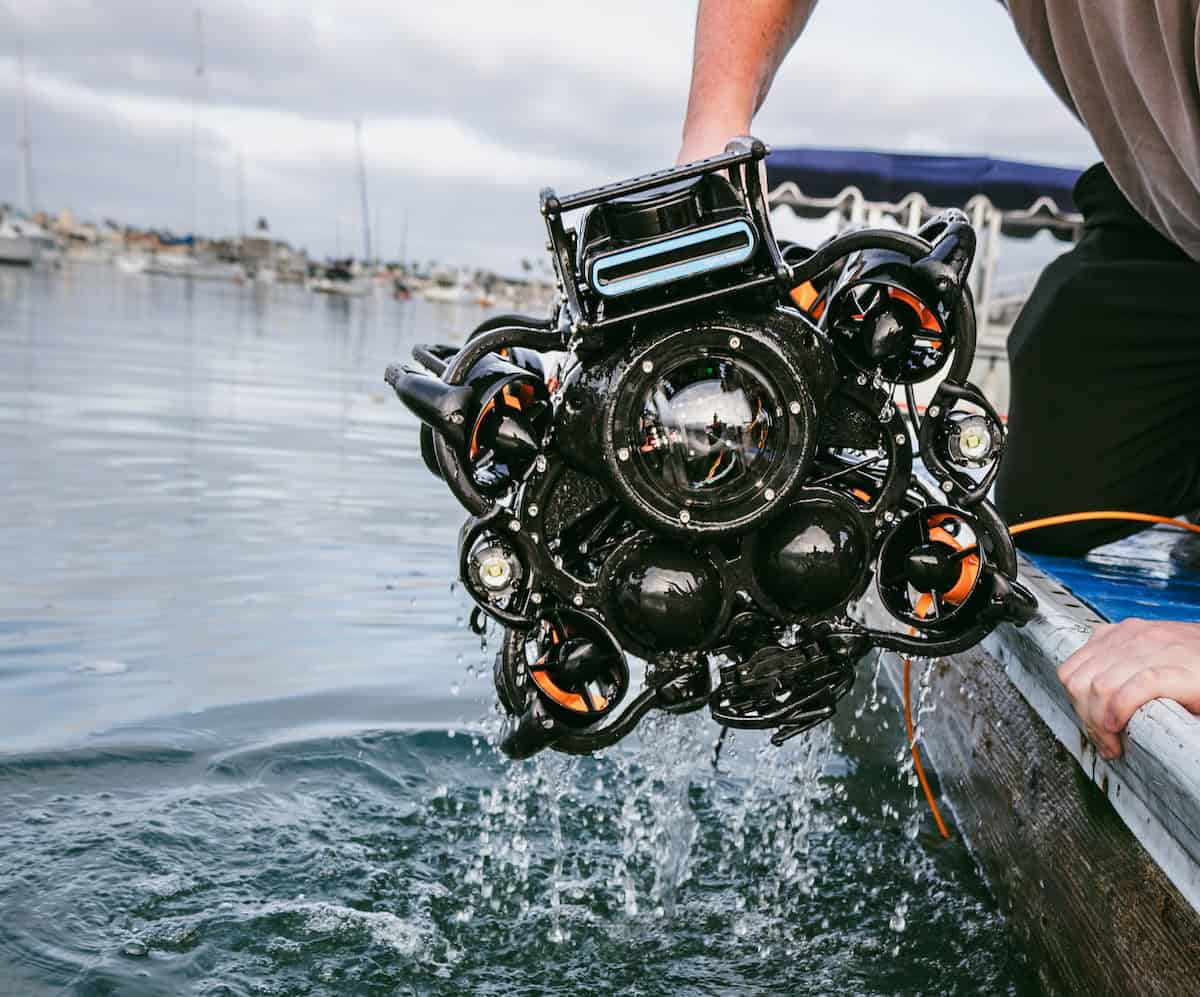

SRV-8 Remotely Operated Underwater Vehicle

ROV robot for underwater inspections, surveys and research

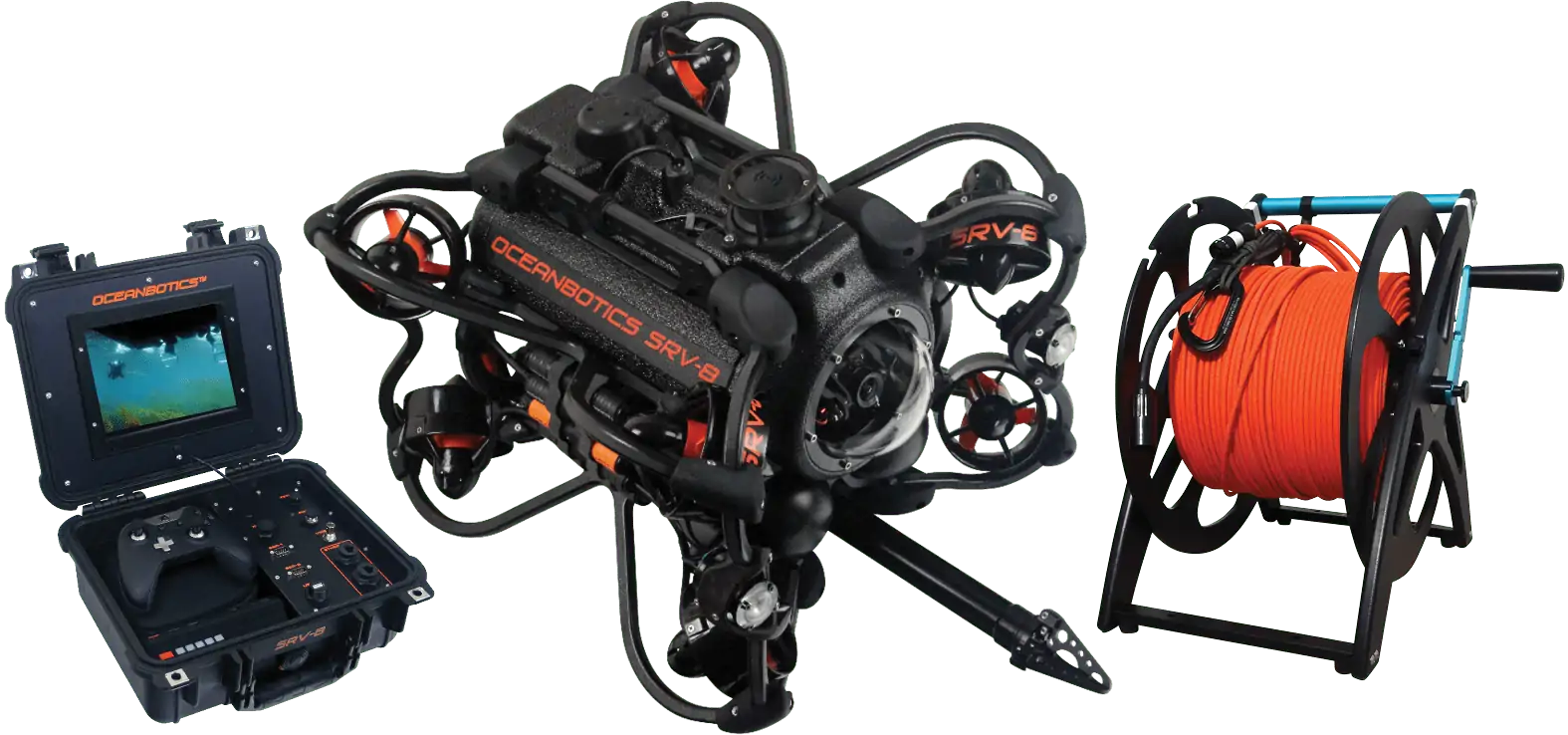

SRV-8 ROV System

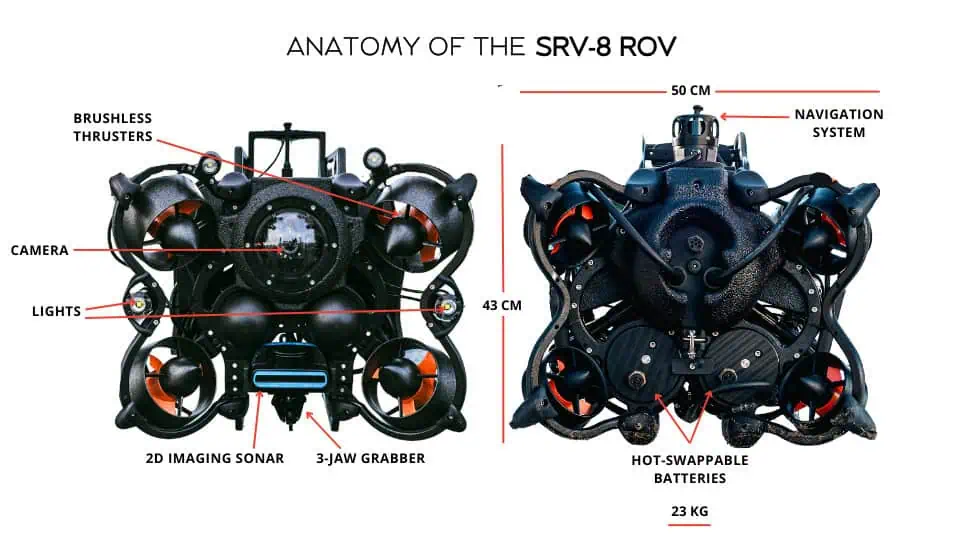

The SRV-8 is a highly manoeuvrable deep water ROV powered by a unique 8-thruster DVC (dynamic vector control) system that provides full 360° movement along 6 axes. The one-person portable system can be deployed in under three minutes, and is controlled with a standard Xbox controller for easy, intuitive operation in a variety of current conditions and underwater environments.

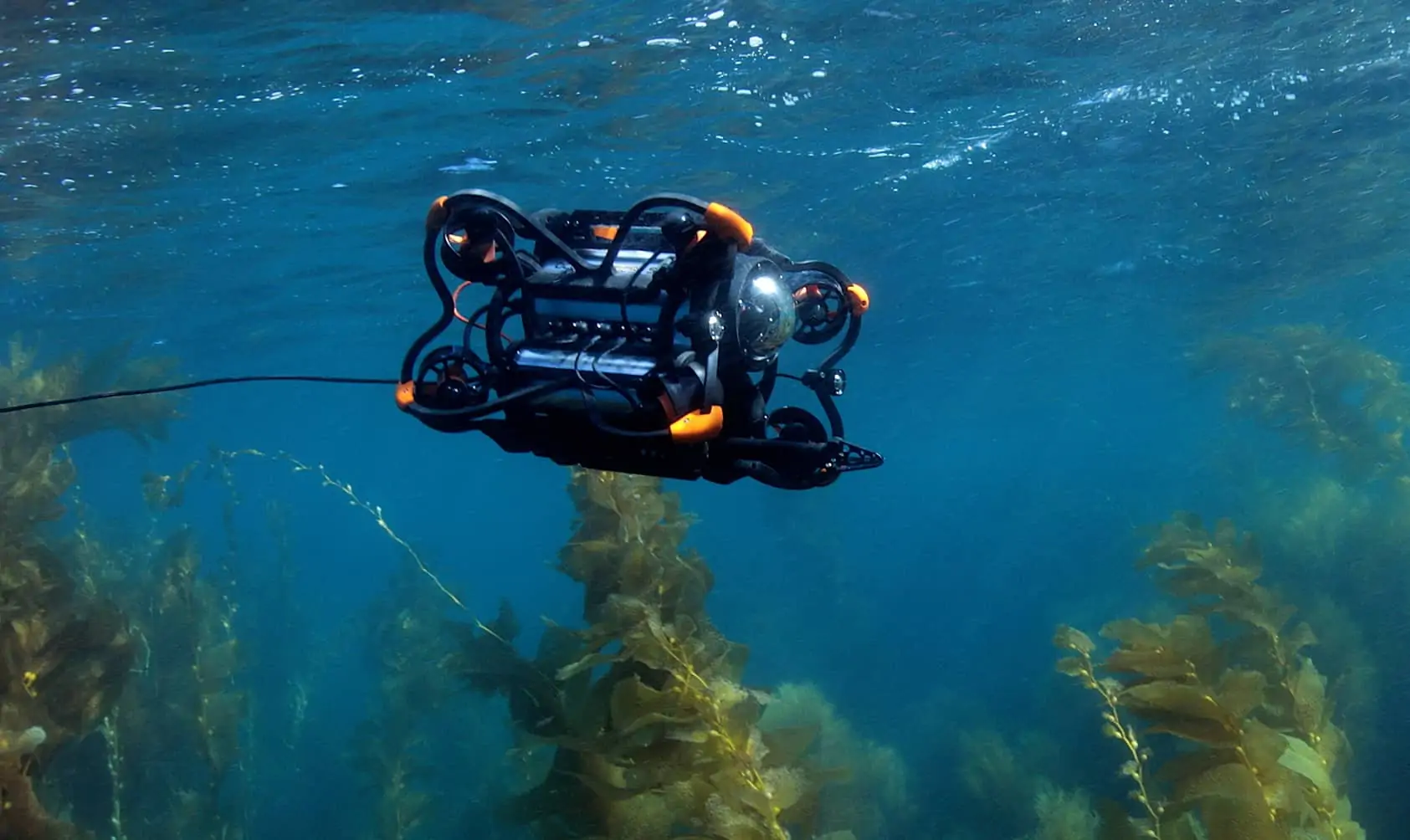

Underwater Inspection ROVWith up to 6 hours of mission time on a single set of batteries and a depth rating of 305 meters (1000 ft), the versatile SRV-8 is ideal for a wide variety of missions, from infrastructure inspection to search and rescue.

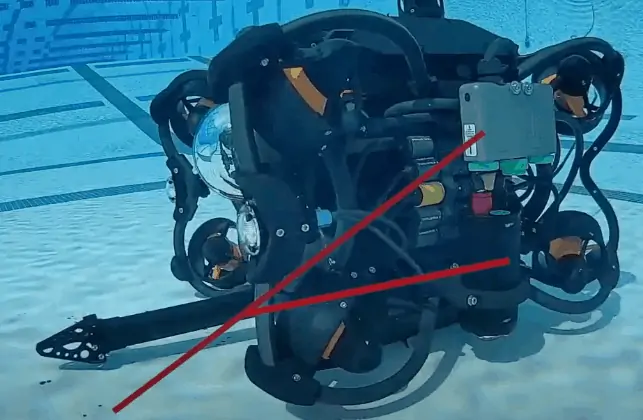

Modular frame rails allow the utility to be enhanced with additional accessories such as grabber and manipulator arms and multibeam sonars.

Quick interconnects provide easy linking of the ROV and tether to the rugged topside control box, which features an 8.4” sunlight readable monitor. The tether reel supports lengths up to 400m (1,312 ft) and the tether’s 4.5mm diameter reduces the effect of drag, weight and current, making manoeuvres and station-keeping easier.

With a uniquely-designed strain relief connection and a pull strength of over 300lbs, the tether can be used for launch and recovery of the SRV-8 from high platforms, or to aid in the recovery of large or heavy objects from the sea floor.

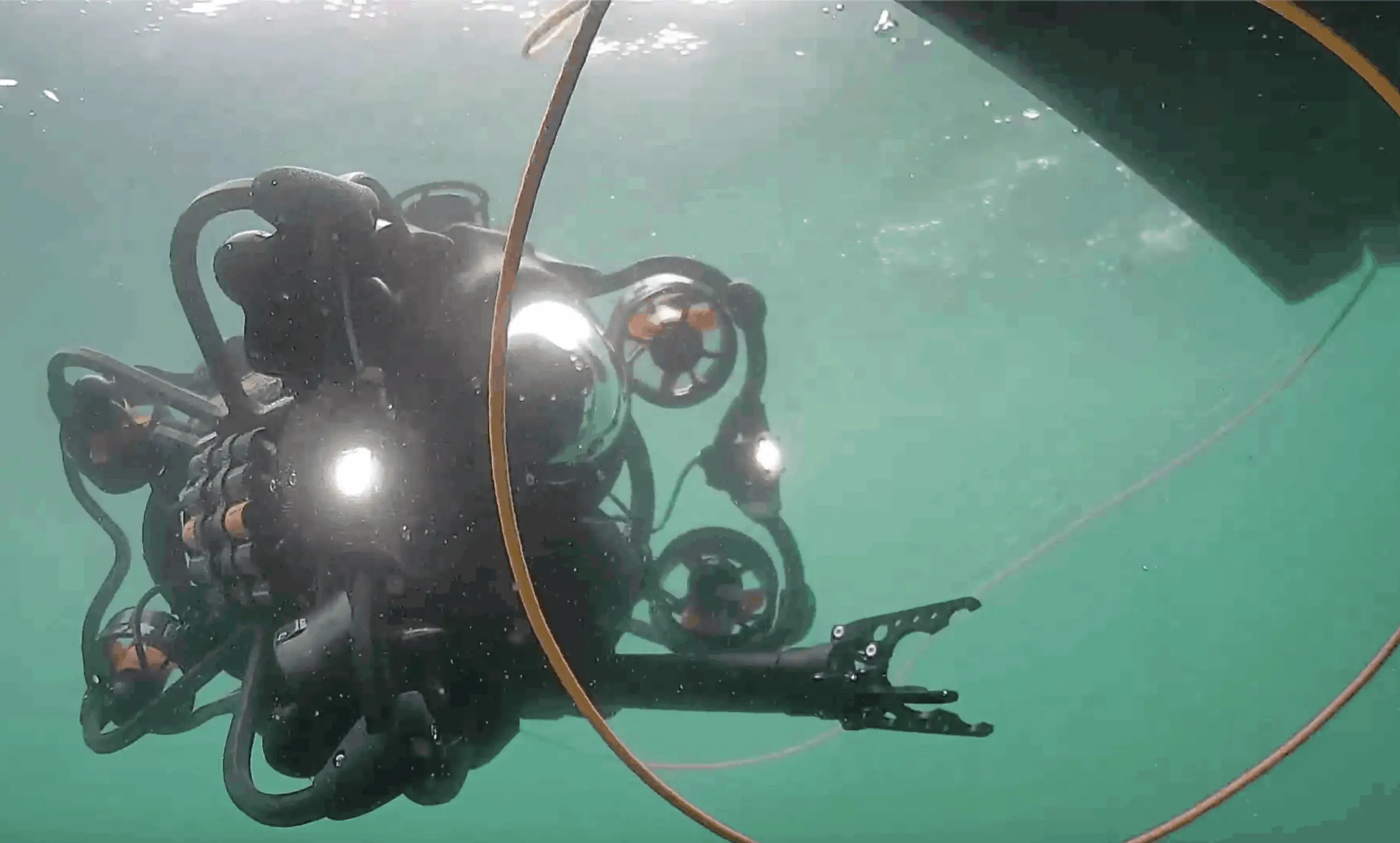

Oceanbotics SVR8 ROV

The SRV-8 features two 1,500 lumen LED lights that illuminate 135° in front of the ROV, providing maximum visibility for the operator. The onboard camera delivers both a clear, real-time analogue feed for the operator, and an HD 1080p digital feed for viewing on-site or recording for later analysis.

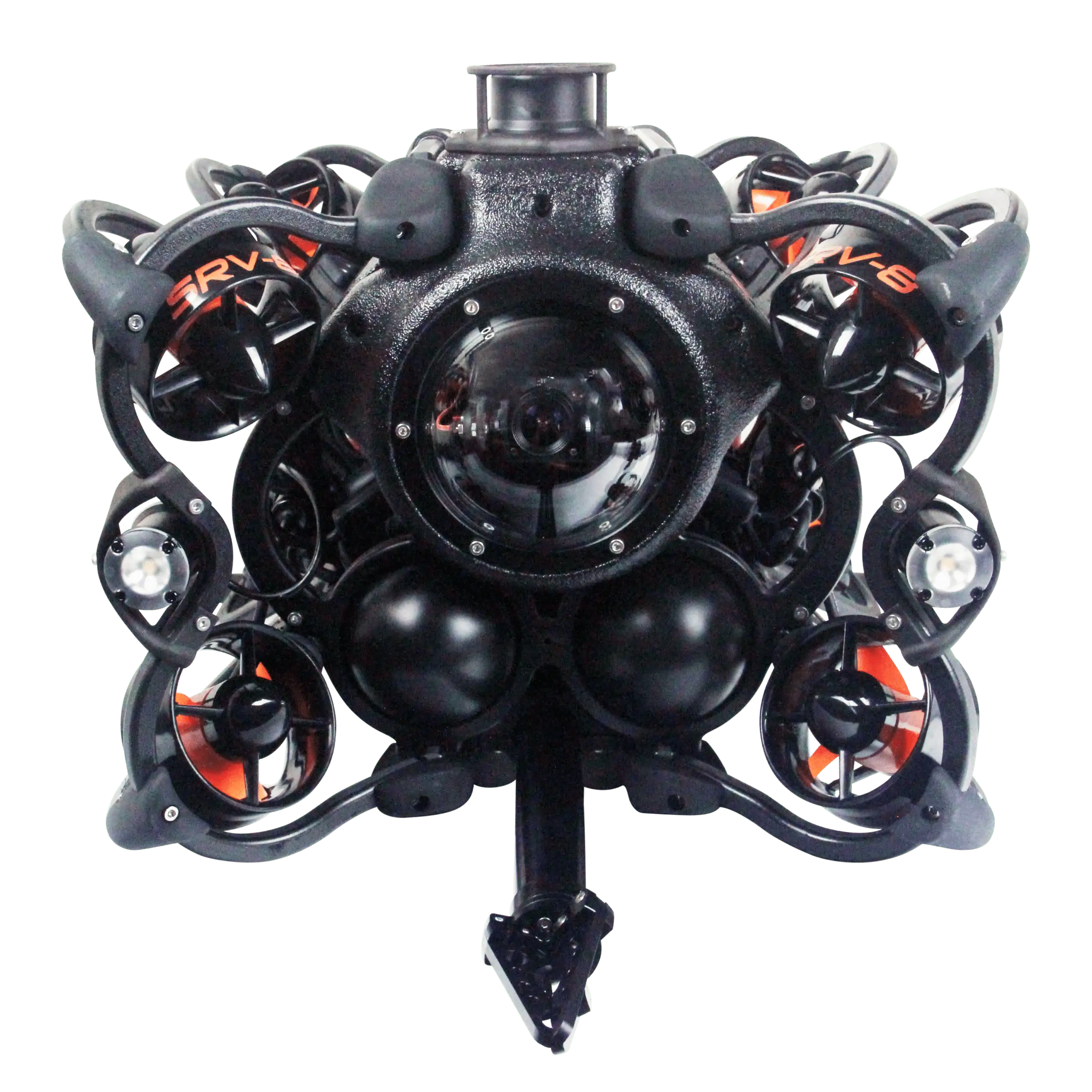

Inspection Remotely Operated Underwater Vehicle

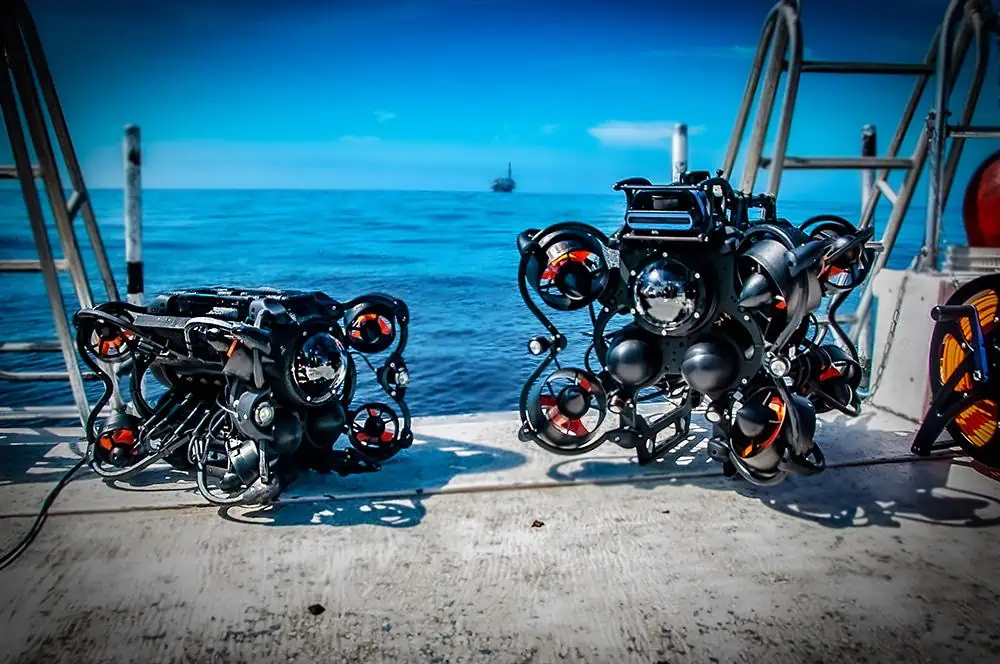

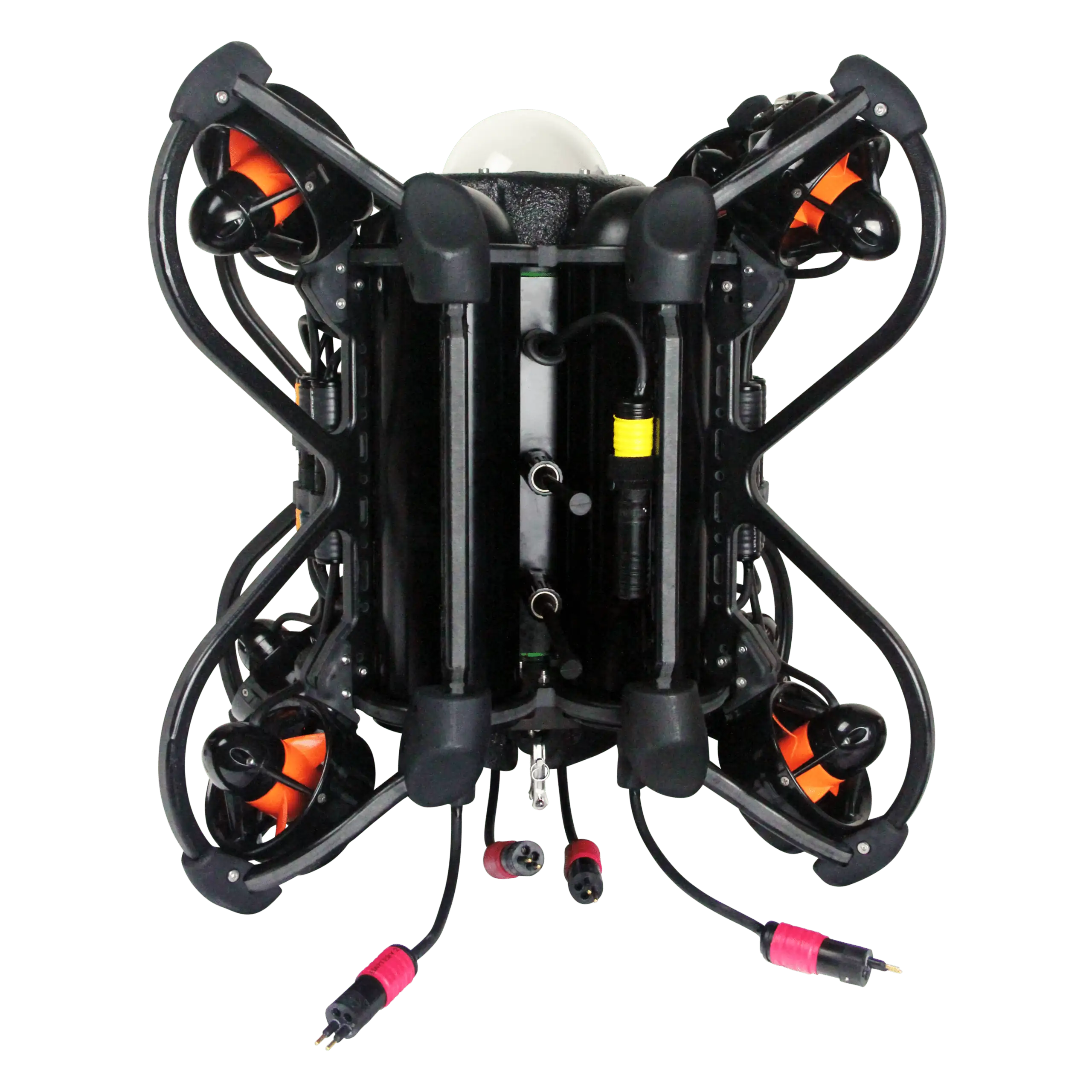

Survey ROVs

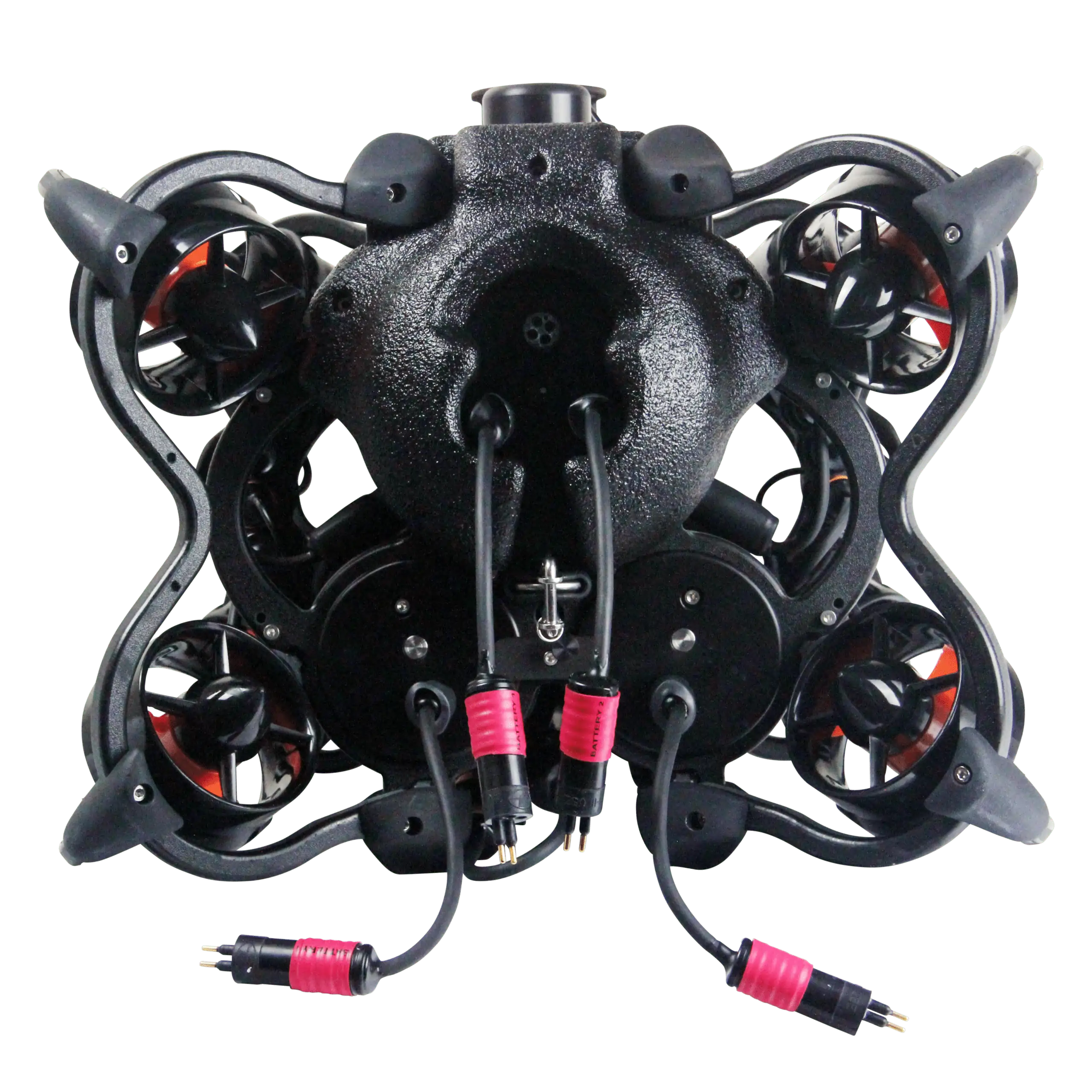

Survey ROV

SRV-8 Specifications

Dimensions (L x W x H) 50 x 43 x 33 cm
19.5 x 17 x 13 in
Weight (vehicle only) 17.7 kg (39 lbs)
Lift Capacity Up to 5.4 kg (12 lbs) in water
Battery Life 4 – 6 hours
External Sensor Inputs 2 external devices via RS232/RS485 or Ethernet
Temperature Range -10°C to +60°C (in air)
-2°C to +35°C (in water)
Portable underwater ROV

Learn more: SRV-8

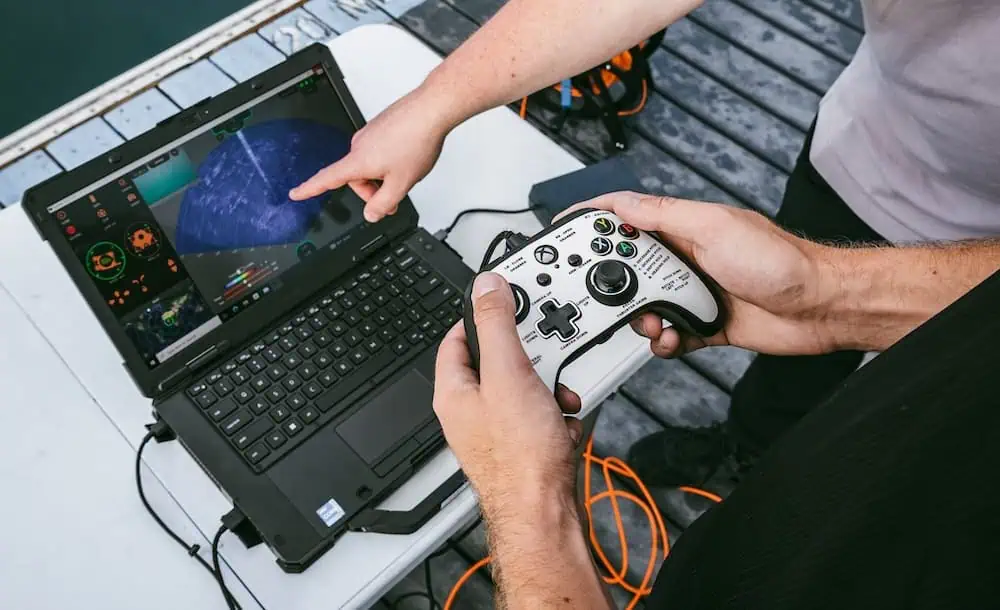

SubNAV™ ROV Mission Software

Intuitive ROV mission planning, recording and playback

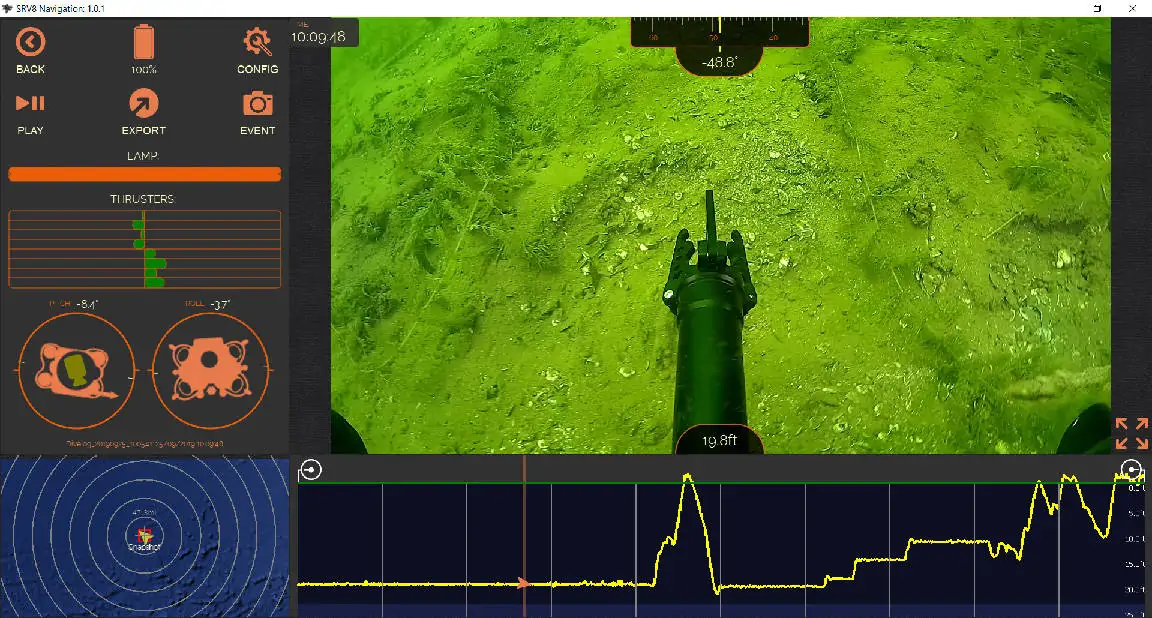

ROV Mission Software

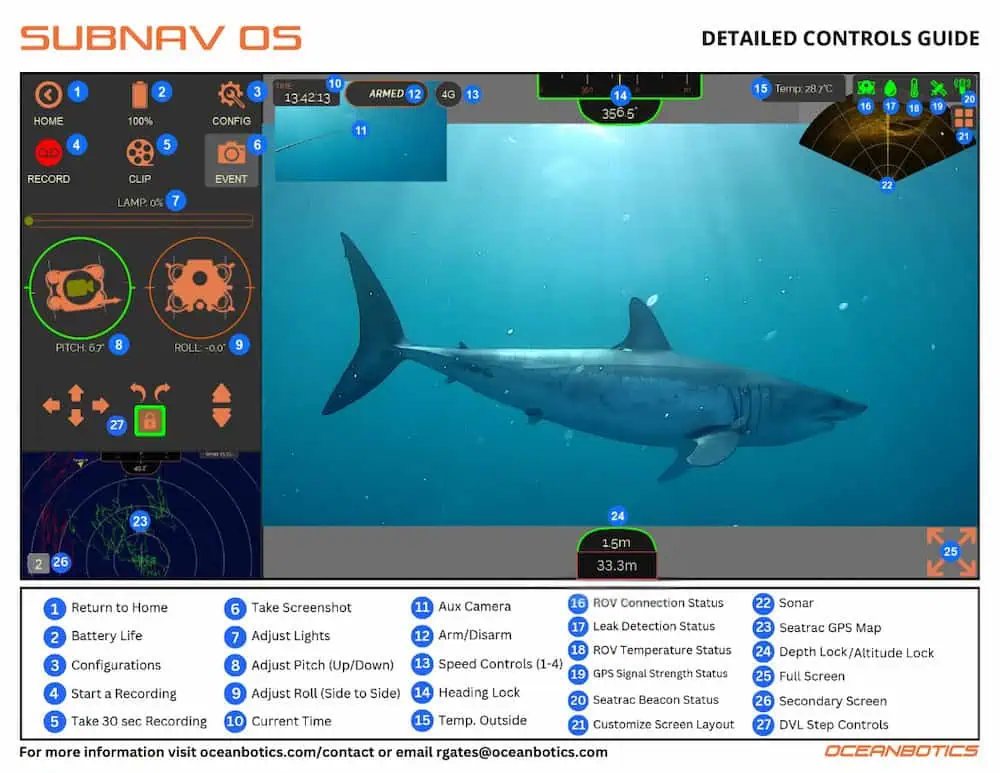

SubNAV™ provides comprehensive mission recording, playback and analysis for our underwater ROVs. Logged position and vehicle dynamics data can be synchronised to the HD video playback for detailed post-mission review, with a scrubbing function that allows users to quickly highlight areas of importance.

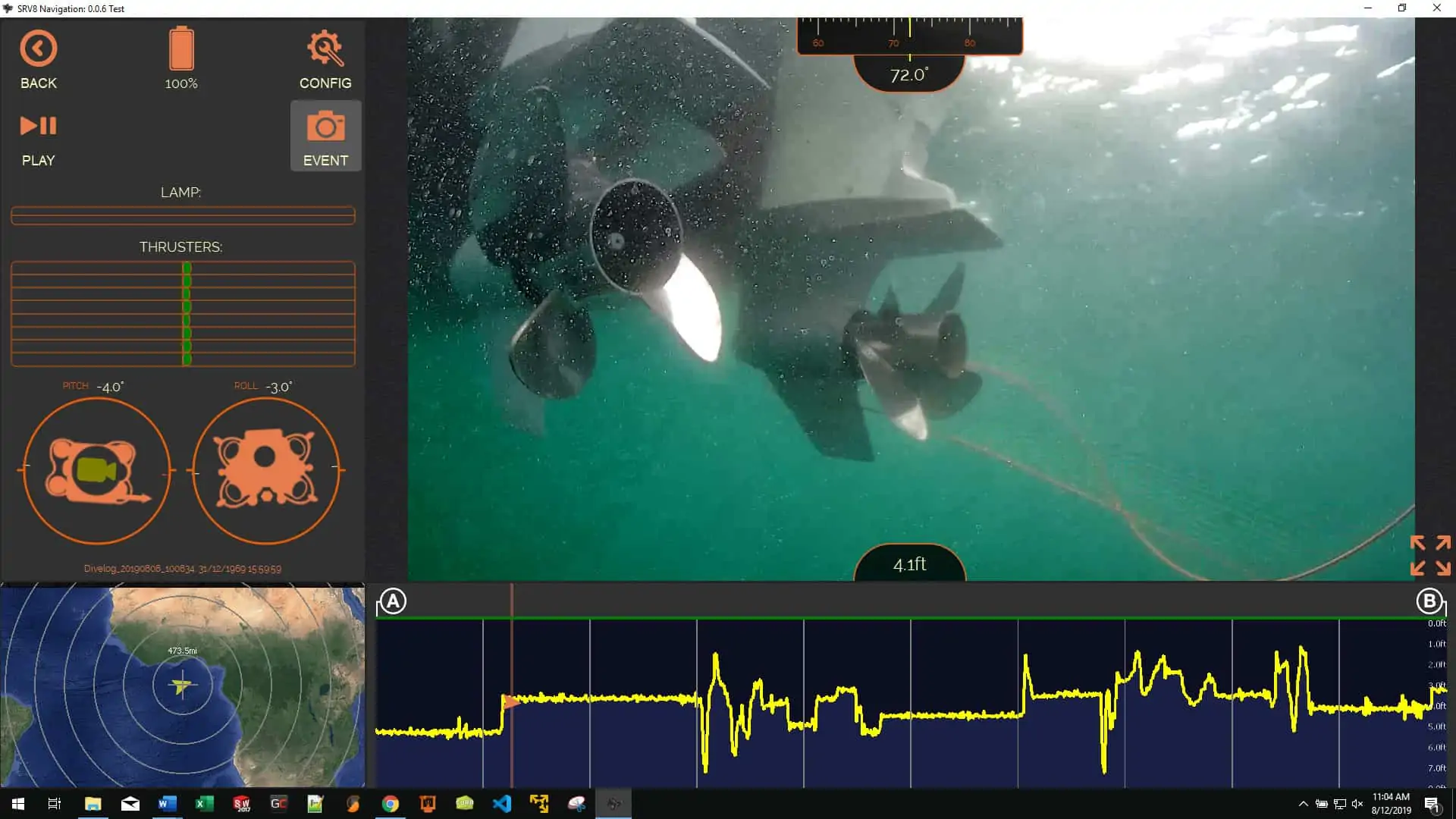

ROV Planning Software

SubNAV™ also features intuitive ROV mission planning and waypoint creation, with the ability to display real-time geo-referenced positional information alongside HD streaming video. Operators can log events of importance and targets of interest either during a mission or during post-mission playback.

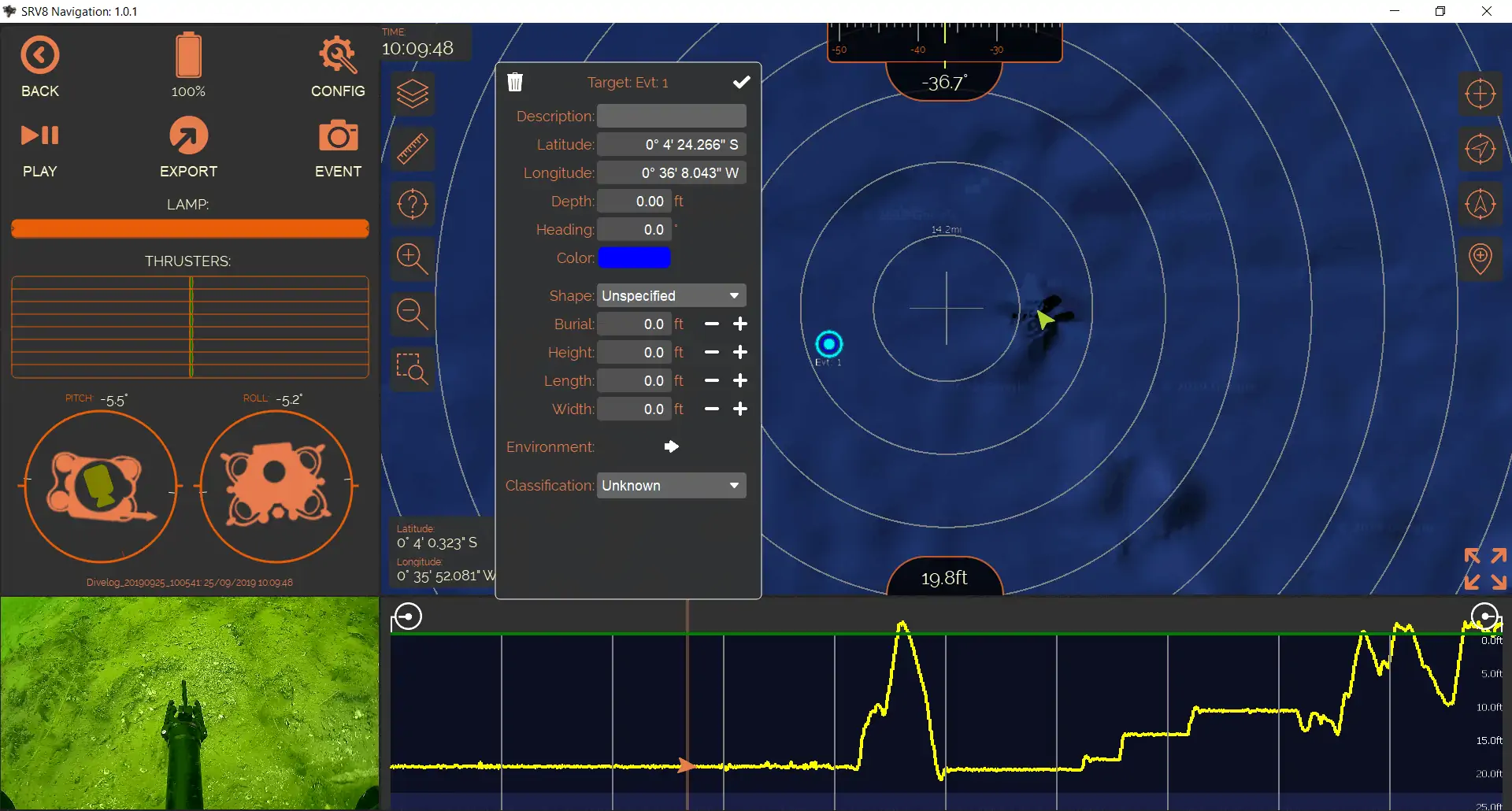

ROV Planning Recording Playback Software

Other features of the SubNAV™ ROV mission software include:

  • Real-time monitoring of attitude (pitch, yaw, roll), camera tilt angle, thruster input, GPS signal strength and light intensity
  • Video clip creation and export
  • Customized interface configuration
  • Simplified software updating
  • Mission log file creation for review and export.

ROV Robot Applications

Aquaculture & Fisheries

The SRV-8 provides a quick, efficient solution for undertaking routine tasks that are essential to avoid costly repairs and reduce economic losses, such as net and mooring inspection, invasive species identification, stock health monitoring, and mort retrieval.

Infrastructure Inspection

The SRV-8 is an indispensable asset for the maintenance of structures such as bridges, dams and pipelines, recording and cataloguing current states and observing where repairs may be needed before conditions worsen.

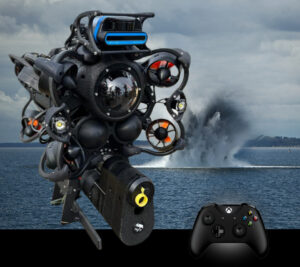

Law Enforcement, Security & Defense

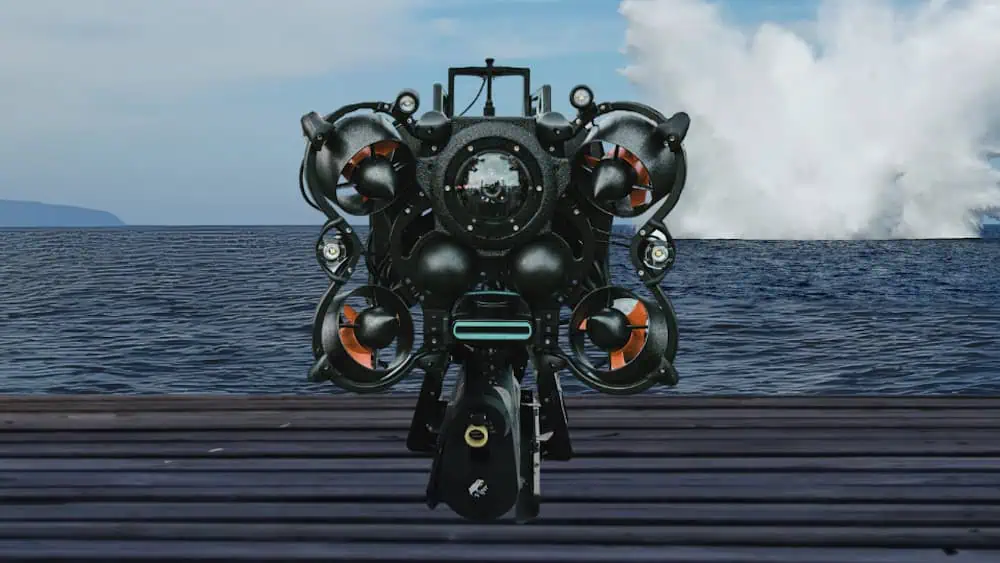

Our rapidly-deployable and highly agile ROV can provide vital situational awareness for port security, search and rescue and EOD (Explosive Ordnance Disposal) operations, helping to reduce the Time Exposed to Danger (TED) for divers or even eliminating the need for human operator presence entirely.

Underwater Survey

With its ability to field a variety of underwater sensors and optional high-precision navigation systems, the flexible SRV-8 can be used for a wide range of survey and data collection missions, including reef site mapping, shipwreck exploration, non-invasive shoal verification and ground truthing.

Science & Research

The SRV-8 is an ideal scientific research platform, and can be equipped with a wide variety of precision underwater instrumentation for ecological studies, geological and environmental survey, water sampling and more.

Underwater ROV
