Voyis Offers All-in-One Solution for Dynamic Laser Modeling & Subsea Imaging

Feature Article by Voyis

In this article, Voyis gives an inside look at how its Perception ROV Skid works, what sensors and technologies are included in the Skid, and how it can revolutionize subsea operations.


The Voyis Perception ROV Skid was built to improve efficiency of inspection class ROVs (Remotely Operated Vehicles), by creating an all-in-one solution for these portable subsea vehicles.

By bringing together optical sensors, navigational systems, and software, the Perception Skid is a complete solution for ROV inspections.

In this post we will explain more about what the ROV skid is, and its benefits for subsea operations.

What is the Perception ROV Skid?

The Perception Skid is a pre-configured frame that contains all the required sensors to perform highly detailed dynamic laser modeling and subsea imaging. All sensors are factory calibrated and tightly integrated together so that the skid can be quickly connected to the ROV of your choice for rapid mobilization.

The Perception ROV skid has both the underwater optical sensors and the navigational sensors accurately co-located with system offsets defined to ensure that there is no requirement for customers to perform a patch test before their survey.

The connection to all required sensors installed in the Skid is simplified, there is a single power and communication line to connect to the vehicle. Additionally, the Skid includes a “Quick Connect” mounting system where the frame can easily mount to the vehicle without the need for tools, optimizing in-field installation and ease of swapping out sensor packages to perform multiple survey objectives.

The Technology

The Voyis Perception Skid includes an incredibly powerful optical survey sensor with 3D modeling and image mapping capability from small ROV platforms. Coupled with highly accurate subsea navigation sensors for confident subsea data and vehicle positioning. The specific technology used within the Perception Skid includes:

  • Voyis Insight Micro Laser Scanner & Stills Camera: mounted in a downward configuration for seabed survey, it outputs high-resolution data corrected in real-time for eventing identification and 3D reconstruction of the assets inspected. Additionally, the scanner can be mounted in the forward-facing orientation for modeling assets in the water column, or side mounted for traversing larger assets.
  • Sonardyne SPRINT-Nav Mini Inertial Navigation: an all-in-one Inertial Navigation system that combines an accelerometer/Gyro with a DVL (Doppler Velocity Logs) and depth sensor, for highly accurate global positioning. Though the navigation data is used to aid the optical data, it also delivers significantly improved ROV positioning for piloting and autonomy.

Benefits of the Perception ROV Skid

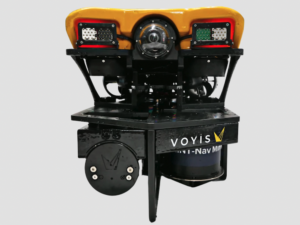

Perception ROV SkidThis Voyis engineered solution delivers a truly plug-and-play design. The skid has foam buoyancy designed into the frame, ensuring that it is both neutrally buoyant (no weight in water), and balanced in both pitch and roll for non-disruptive vehicle control.

This design ensures it can be instantly connected to the bottom of the ROV and not have any impact on vehicle dynamics or trim, enabling the swapping of different payloads for different tasks.

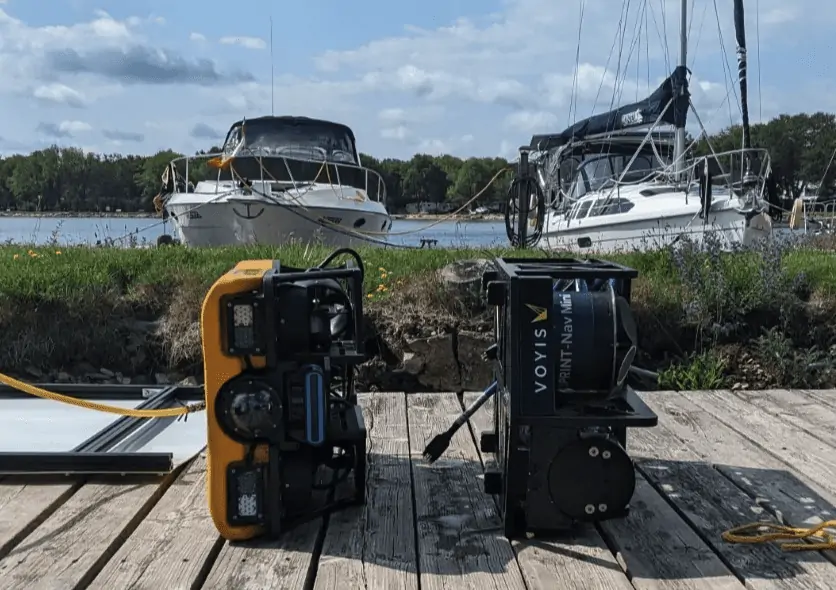

VideoRay Defender ROV with the Perception Skid

The pictures above show the VideoRay Defender ROV with the Perception Skid, which utilizes the “quick connect” interface to allow the skid to be mounted in less than a minute.

Subsea cables from the Voyis Insight Micro and the Sonardyne SPRINT-Nav Mini are simply connected to the Defender’s auxiliary sensor box, which will broadcast data over the vehicle’s central ethernet network. This technology allows the data to be streamed topside for real-time data viewing throughout the survey.

The Perception ROV Skid collects both underwater 3D laser data and color imagery in real-time, utilizing the highly accurate SPRINT-Nav Mini INS (Inertial Navigation Systems) to create high-resolution georeferenced data outputs.

The underwater 3D laser generates data for high accuracy 3D asset inspection, mine identification, marine environmental modeling, micro-bathometry, and much more. The color images captured are processed with machined learning for true color image maps, a feature that truly brings the ocean to life. The images can be directly utilized in standard photogrammetry software to produce incredible seabed maps or colorized 3D models of targets like shipwrecks and coral environments.

All this capability is now available on low logistic, easily deployed, small ROV platforms – download the datasheet to learn more>
