Embedded Computing for Geospatial Mapping & Recording with Augmented Reality

Feature Article by Sealevel Systems

COM Express

Discover cutting-edge solutions from leading global suppliers
SUPPLIER SPOTLIGHT

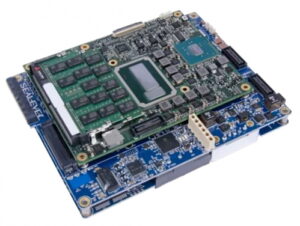

Sealevel Systems COM Express solution for augmented reality
Follow UST

Sealevel Systems COM Express solution for augmented realitySealevel Systems highlights how the company’s COM Express-based computing solutions have been used in the development of an augmented reality system that displays and records video overlaid with mission-critical information for law enforcement, search & rescue, firefighters, military, unmanned aircraft systems (UAS) and more.

A leader in augmented reality mapping systems approached Sealevel to help develop their next-generation system and geospatial video recorder. The goal was to create a product that could perform tasks such as the display and recording of live video of ground-based targets overlaid with street names and points of interest in real time.

The key design challenge was the requirement for a very small footprint combined with high-performance specifications, extremely dense I/O features and wide operating temperature range.

Sealevel’s engineering team created a custom dual-board carrier solution packed with a large amount of I/O in a very small form factor. The COM Express Type 6 carrier board was designed for a -40C° to +85°C operating temperature range, and features a wide I/O set including:

  • Four ARINC 429
  • Two Gigabit Ethernet
  • Four USB 3.0
  • Eight analogue-to-digital
  • One digital-to-analogue
  • Twenty GPIO
  • Four differential audio
  • Ten serial
  • Four PS/2
  • One CAN bus interface
  • HDMIS, SDI, component and composite interfaces
  • Dual M.2 expansion
