Beyond Vision outlines the importance of 2D and 3D multispectral maps, which use advanced imaging techniques to reveal hidden details about Earth’s surface, improving analysis in agriculture, conservation, and urban planning.
Multispectral maps capture data across various electromagnetic wavelengths, providing detailed insights beyond human vision. These 2D and 3D visualizations reveal intricate details about vegetation, soil, water, and urban environments through different spectral bands.

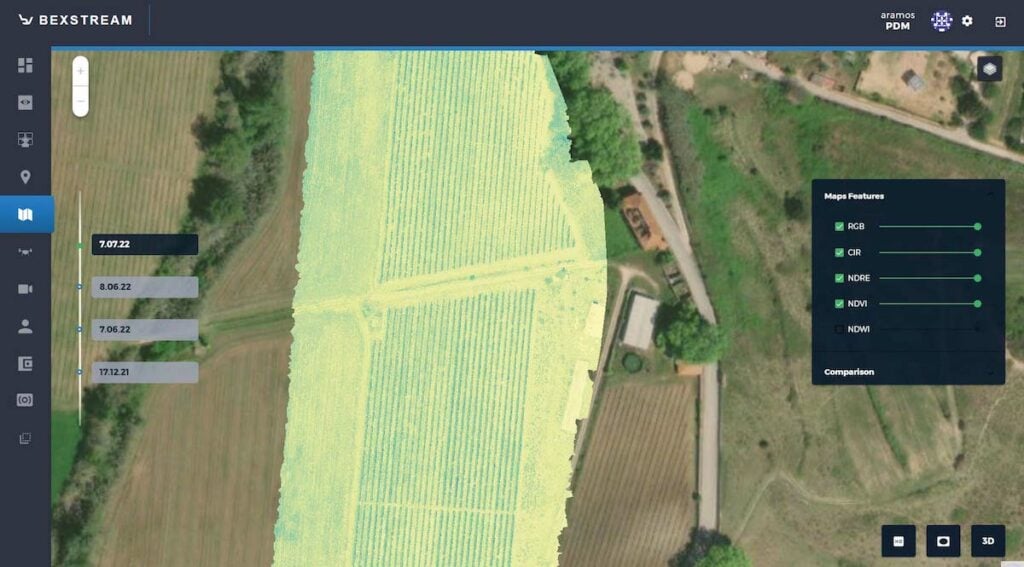

Beyond Vision’s beXStream software allows user to draw on real-time 2D map and 3D point cloud generation for advanced decision-making, enhancing operations for drone fleets conducting multispectral mapping.
The Importance of 2D and 3D Multispectral Maps
These advanced tools offer detailed views surpassing ordinary sight. Specialized cameras collect images across wavelengths, including infrared and near-infrared, exposing hidden details. Each spectral band targets specific elements, revealing health indicators or temperature variations.
Complex processes like aerial data collection and digital modeling create powerful scientific instruments, bridging visible patterns with concealed environmental information.
Key advantages include multilayered perspectives offering invisible insights. This technology is essential for many fields. In agriculture, it helps farmers monitor crop health and use water efficiently. For environmental conservation, it tracks deforestation. In urban planning, it identifies heat-trapping areas and guides sustainable development.
Traditional Photogrammetry and Remote Sensing Limitations
- Spectral limitation: Capturing primarily visible spectrum, restricting detectable variables.
- Spatial resolution: Low-resolution satellite imagery challenged fine-scale change detection.
- Temporal resolution: Insufficient capture frequency for monitoring rapid environmental changes.
- Dimensionality: Difficulty capturing three-dimensional landscape structures.

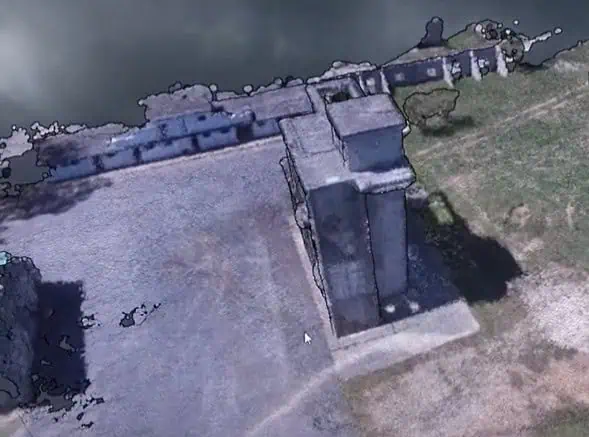

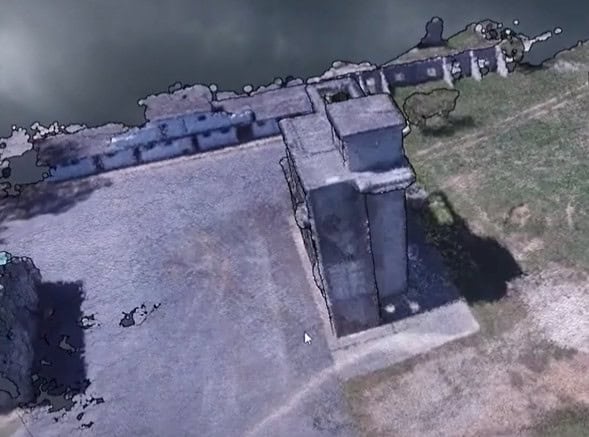

Advancements: Structure from Motion (SfM) and Multi-View Stereopsis (MVS)
- Structure from Motion (SfM): Constructs 3D structures from 2D image sequences, deducing point coordinates by analyzing multiple viewpoints. This enhances resolution and introduces missing dimensionality.
- Multi-View Stereopsis (MVS): Refines 3D model generation, reconstructing scenes using multi-angle imagery. It analyzes disparities between viewpoints to estimate depth, improving accuracy and detail.
Both techniques overcome many traditional limitations, enabling in-depth environmental exploration with unprecedented clarity.
Methodology of Generating Multispectral Maps
1. Data Load/Input
Airborne platforms equipped with imaging sensors collect aerial images.
2. Structure from Motion (SfM)
- Metadata extraction – Extract relevant metadata (e.g., GPS coordinates, camera orientation) from each image.
- Feature detection – Detect distinct visual features within the images.
- Feature matching – Pair similar features detected across different images.
- Track creation – Develop sequences or “tracks” of matched features across multiple images.
- Reconstruction – Assemble a sparse 3D model of the scene.
- Undistort – Correct any distortions in the images.
3. Multi-View Stereo (MVS)
- Stereo pair selection: Select pairs of images based on their suitability for depth analysis.
- Depth map estimation: Estimate depth maps for each selected pair of images.
- Depth maps filtering: Filter the depth maps to remove noise and improve accuracy.
- Depth map fusion: Fuse the refined depth maps into a single, coherent depth model.
4. Meshing Reconstruction
Create a mesh representation of the model, adding surface details.
5. Texturing Reconstruction
- Preprocessing: Preprocess the 3D model.
- View selection: Determine the most suitable images or perspectives for applying textures.
- Color adjustment: Fine-tune the colors of the textures to match the real-world appearance.
6. Georeferencing
Align the textured 3D model with real-world geographic coordinates.
7. Orthomap creation
Flatten the 3D model into a 2D map while maintaining the spatial accuracy of features.

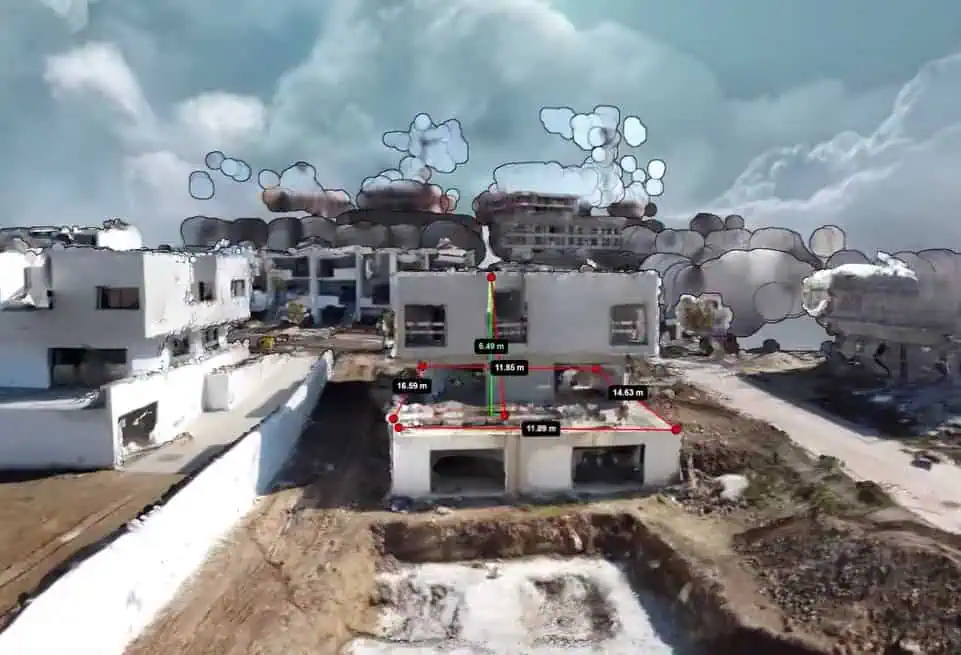

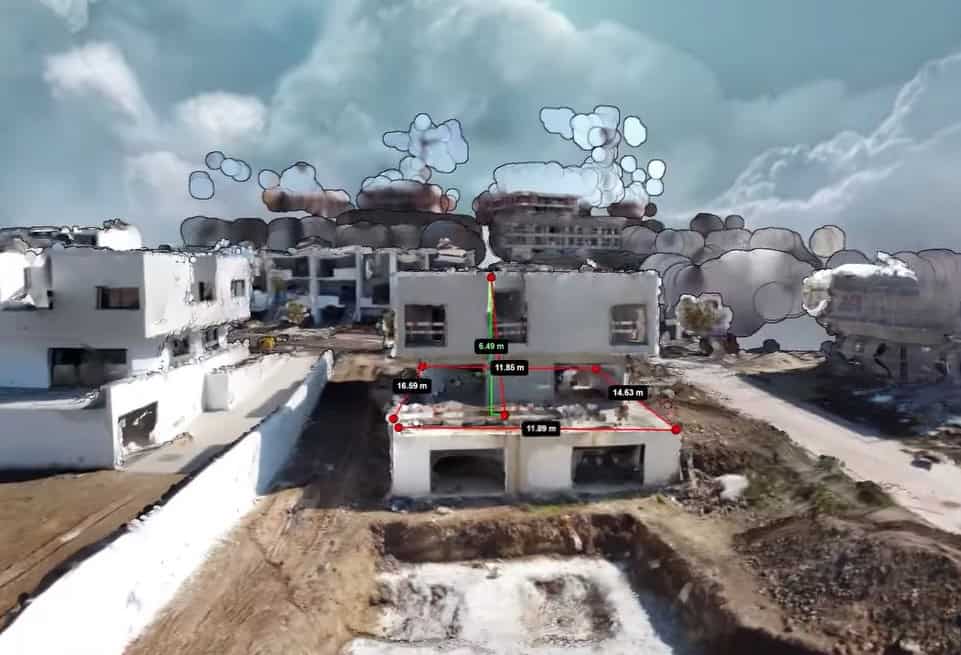

Experimental Results: Practical Applications and Challenges
The outlined method for 2D and 3D multispectral maps, using RGB, multispectral, and thermal data, has shown major improvements in practical use cases for environmental monitoring, agriculture, and urban planning.
Applying a comprehensive workflow of data collection, SfM, MVS, texturing, and geo-referencing produced detailed and accurate landscape models.
These models serve multiple purposes, from assessing crop health and irrigation needs in agriculture to enhancing studies of urban heat islands and environmental conservation efforts.
The method improved:
- Data volume and processing time: Solved with optimization techniques, parallel processing, cloud computing.
- 3D model accuracy: Addressed through enhanced calibration, advanced algorithms, ground control points.
- Thermal imaging integration: Overcome with specialized preprocessing, hybrid approach combining thermal with other data.
- Environmental conditions and lighting variability: Mitigated by strategic planning and advanced image processing.

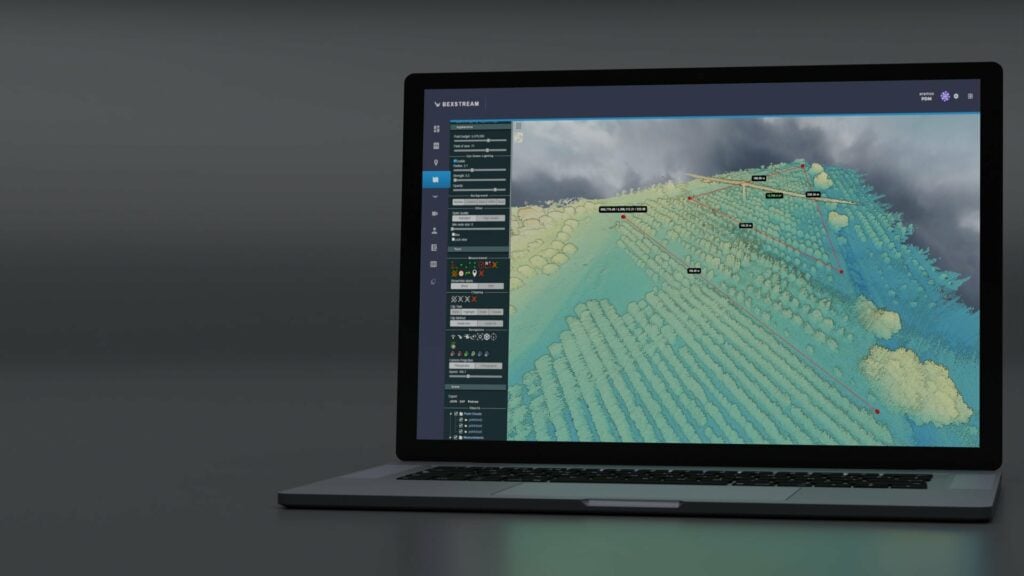

The experimental maps were captured using Beyond Vision’s beXStream cloud-based drone remote control.
Effectiveness of Adopted Methodologies
Techniques adapted from OpenDroneMap’s workflow proved highly effective in generating accurate, detailed multispectral maps during studies. The integration of SfM and MVS, alongside advanced texturing and georeferencing, facilitated high-resolution 3D model creation.
By leveraging OpenDroneMap’s open-source tools, the study benefited from a robust and community-supported platform, enabling efficient processing of large datasets and the production of highly detailed spatial models.
Future Directions for Research and Application
Potential areas include refining data processing algorithms, integrating machine learning and AI, and exploring diverse data sources like LiDAR and SAR. Applications could expand to climate change research, disaster response planning, and biodiversity conservation.
Key Points
- Multispectral maps capture data across multiple wavelengths, revealing invisible details.
- Traditional methods were limited by spectral, spatial, and temporal resolution, and dimensionality.
- SfM and MVS methodologies offer significant improvements in 3D modeling.
- The mapping process involves data collection, SfM, MVS, meshing, texturing, georeferencing, and orthomap creation.
- Applications span environmental monitoring, agriculture, and urban planning.
- Challenges include data volume, model accuracy, thermal integration, and environmental variability.
- OpenDroneMap’s workflow proved effective in producing detailed multispectral maps.
- Future research could refine algorithms, integrate AI, and expand data source diversity.
