Dual Antenna GNSS-Aided INS Selected for In-Flight Drone Retrieval

Efficient and safe in-flight drone retrieval was made possible using Advanced Navigation’s Spatial Dual INS as part of Dynetics’ Gremlins project for DARPA By Sarah Simpson / 23 Sep 2022
Dual Antenna GNSS-Aided INS Selected for In-Flight Drone Retrieval
Follow UST

Advanced Navigation has released a case study detailing the use of the the Certus Evo (formally Spatial Dual) dual antenna GNSS-aided Inertial Navigation System (INS) on the in-flight drone recovery project by Dynetics.


The US defense sector has been seeking a solution that will enable it to launch and retrieve large numbers of small unmanned air systems (UASs) drones from suitable combat aircraft while out of range of adversary defenses. Due to the operations requiring in-flight drone retrieval, the system must be exceptionally coordinated, precise and safe.

The project, named Gremlins program, aims to improve operational flexibility and cost savings by being able to launch and retrieve the UAS drones in-flight. That is, allow the UAS drones to be deployed closer to the mission zone, which reduces flight time and requires less fuel payload. After mission completion, the UAS drones are then retrieved, which reduces the chances of material losses. This system is expected to enable the Gremlin drones to be able to be redeployed within 24 hours of the previous mission.

The challenge: Accurate and safe in-flight drone retrieval

The challenges involved in coordinating multiple unmanned aircraft and safely tethering and retrieving from a moving aircraft is obvious. Risk to the “mother” aircraft, crew and the UAS drones must be minimized through precision flight control and navigational precision. A very accurate and reliable INS is required for such mission-critical applications.

“When they complete their mission, they return to airborne manned platforms to be recovered to a forward operating base where they can be quickly refurbished and put back into the fight. The potential to overwhelm an adversary continuously with multiple volleys is tremendous.” explained Tim Keeter, Deputy Program Manager and Chief Engineer for “Gremlins” at Dynetics.

To support this initiative, the Defense Advanced Research Projects Agency (DARPA) selected Dynetics to demonstrate its capabilities in that space.

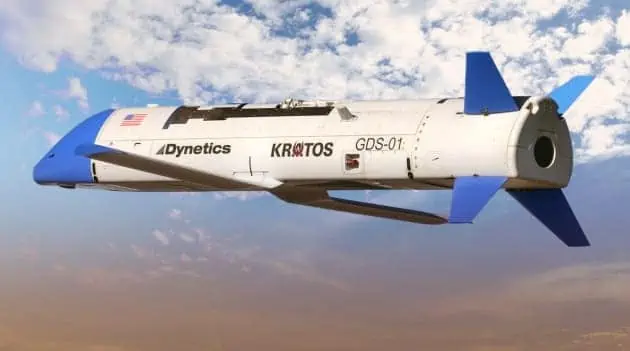

dynetics in flight UAS recovery

The solution: Dual antenna MEMS GNSS/INS provides excellent results

Accurate positioning is paramount to enable safe in-flight drone retrieval. Being a defense application, very high reliability was also a deciding factor in Dynetics selecting a suitable navigation solution.

“The unmanned air vehicles utilized in these future operations will carry a variety of different sensors and other payloads, working together to manage and conduct complex, highly-adaptive operations in contested environments,” explained Keeter.

Therefore, while there was no hard requirement in terms of accuracy, Bill Martin, lead engineer at Dynetics specified that “we were interested in relative position accuracy within 10cm (4″). Spatial Dual hits the sweet spot between performance, size, power consumption, and cost for our initial R&D flight test instrumentation need on the Gremlins project.”

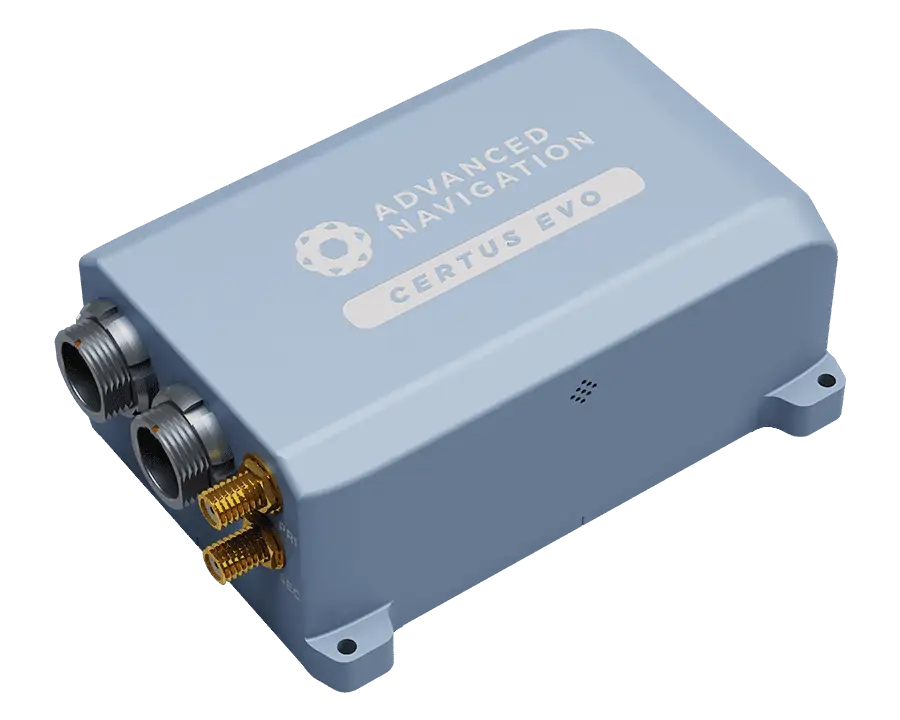

Certus Evo GPS-Aided INS

Certus Evo (formally Spatial Dual) a groundbreaking dual antenna GNSS aided Inertial Navigation System (INS) that provides extremely accurate position, velocity, acceleration, and orientation. It offers near FOG performance combined with the reliability of MEMS sensors. Low SWaP-C (Size, Weight, Power, and Cost) and multiple communication interfaces make for easy integration. It is available in both OEM and rugged packages.

A contributing factor in the selection of the INS was “the chance to achieve high accuracy position data through Kinematica post-processing, allowing accurate measurements of the relative positions between the Gremlins recovery aircraft, UAS, and the deployed recovery system.”

The result: Excellent performance and post-flight data analysis

Ultimately, Dynetics was satisfied with the performance of the Spatial Dual.

“The Spatial Dual units performed nicely and provided very useful data for post-flight analysis. The Spatial Dual performance during early flight tests, combined with low power consumption and small form factor, convinced us to make the Spatial Dual part of the final recovery system design” said Bill Martin.

Keeter added “Rapid development of innovative and complex systems like Gremlins drives us to identify and use system components with the highest reputation for reliability and performance. We are proud to be working, once again, with Advanced Navigation on another one of our priority demonstration programs.”
