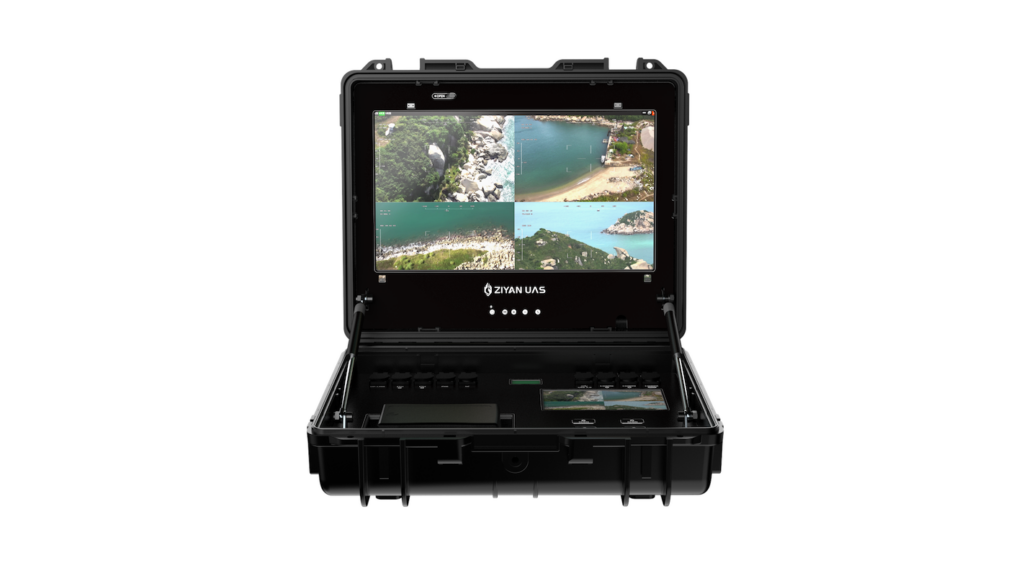

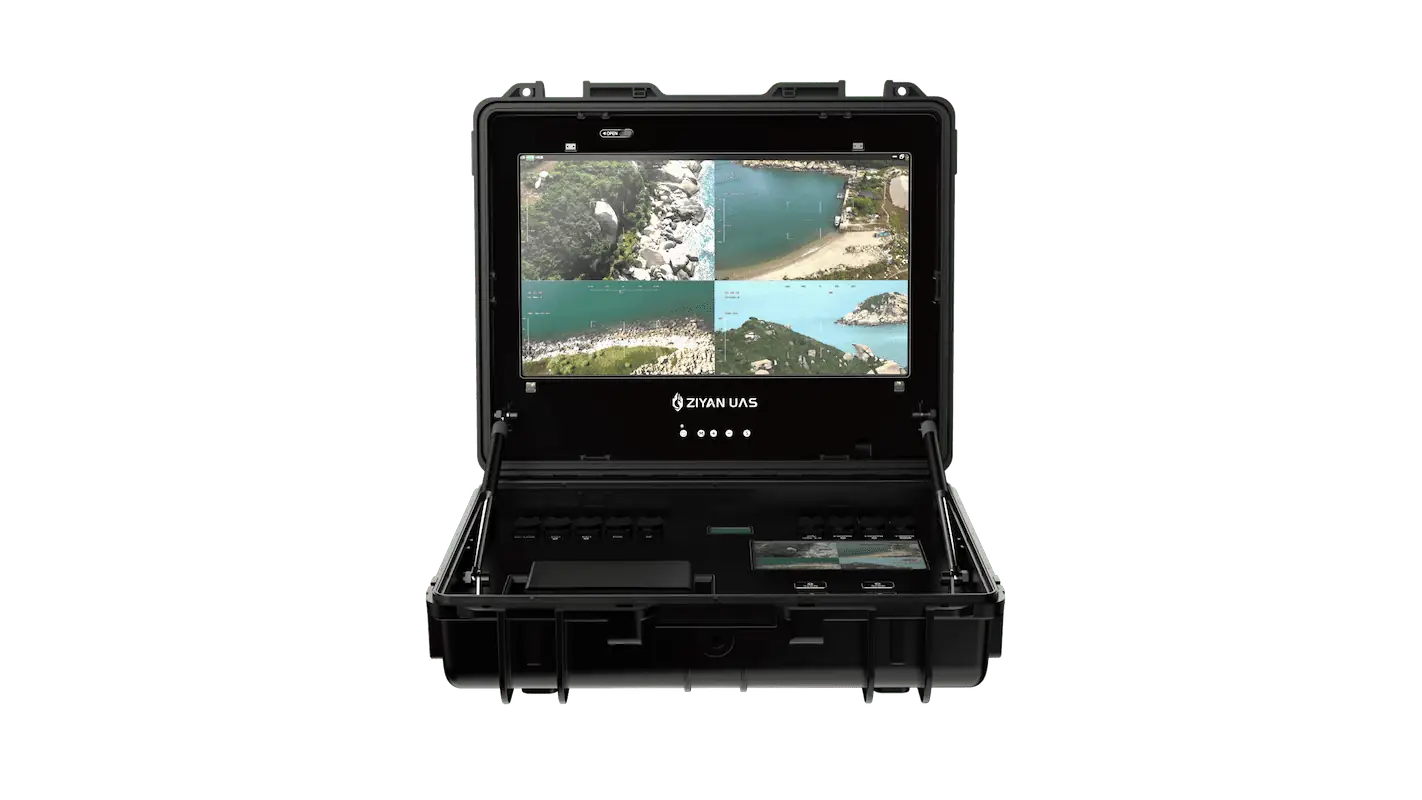

Video Relay Distribution Box

Video Relay Distribution Box is a multi-system collaborative operational platform. The video relay distribution box possesses capabilities to receive live video feeds from multiple different sources. It supports all types of mainstream video codec input and output. It has effective encoding/decoding features, flexible transmission protocols and built-in routing management functions to facilitate video relay back to the command center.

The video relay distribution box is a rugged, durable and portable system. It is very easy to use and it requires no setting up, as it is a boot-free system. It re-encodes multiple video feeds and, keeps the feeds stable and secure.

Multiple systems can be integrated and used with the video relay distribution box. This multi-domain system is employed for situational awareness in real time. The video imagery is relayed back to the command center in real time and informed decisions are made in emergency situations.


Dimensions 482*408*154.4mm
Weight 9.4kg
Battery 4H
Operating Temperature -20°C ~ +50°C
Storage Temperature -20°C ~ +60°C
Power supply DC 16.8V 3A
Power <65W
Battery 14.8V / 130Wh
Interface Properties 2-Channel HDM1 1.4 support up to 4K30
1-Channel HDMI 1.4 support up to 4K30
Resolution 4K, 1080P, 720P, 1600x1200, 1440x900, 1366×768, 1280x1024, 1024x768, 800x600, 640×480
Encoding Format H.264, H.265, MPEG2, AAC, PMCA, PMCU
Encoding Resolution 4K, 1080P, 720P, 360P
Frame Rate 1~60 Adjustable
Smart Coding Support SmartP、DualP
I/O Interface UP -LINK*1, ETH*2, POE*1, SC*1, USB3.0*1, HDMI*3, POWER*1
