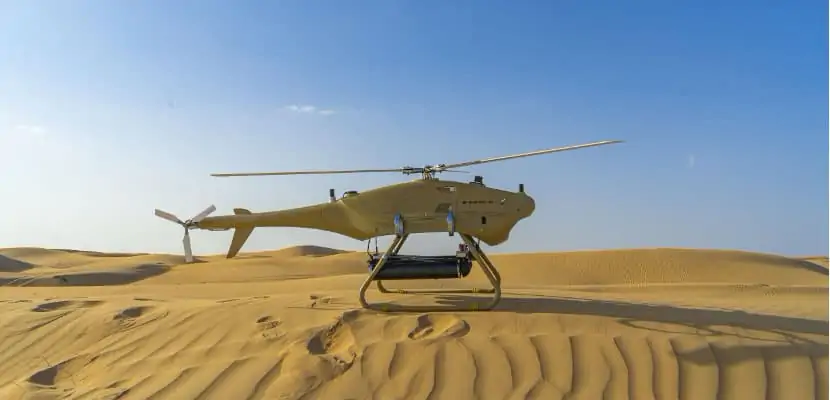

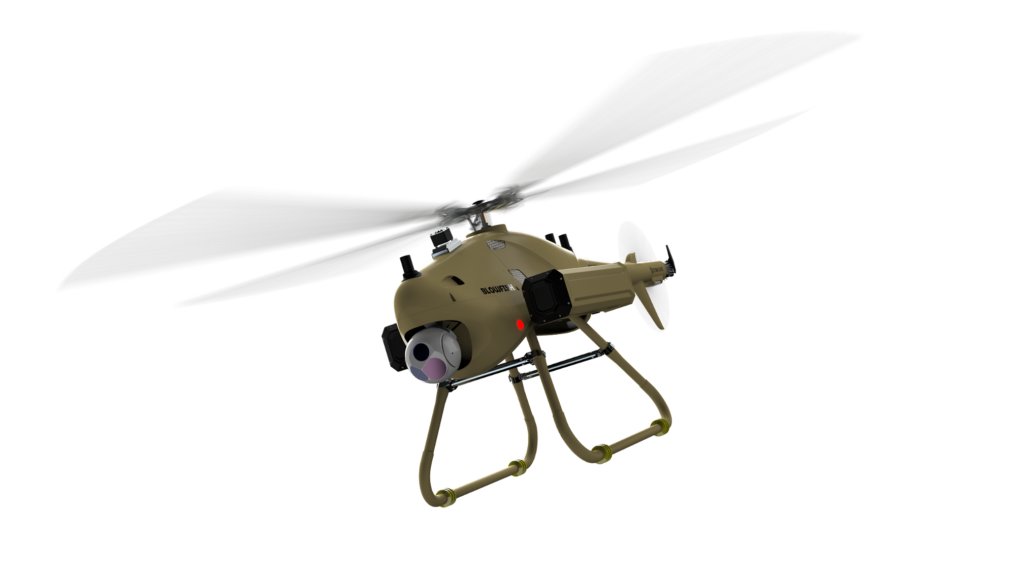

Blowfish A3 Max Unmanned Helicopter

The Blowfish A3 Max is a fully electric multi-domain unmanned helicopter designed to operate in a wide range of environments including maritime and mountainous regions. It is fully BVLOS (beyond visual line of sight)-capable and can withstand up to Level 7 winds.

The helicopter UAV's detachable tail design make transportation and storage highly convenient. It can take off and land within a small footprint, making it ideal for operations in confined areas such as the deck of a ship. With a 15 kg payload capacity, it is designed to accept diversified payload mounting and undertake accurate launching and dropping of cargo. It can be equipped with an AI vision module that provides automatic target identification and trajectory planning.

The Blowfish A3 Max can carry a wide variety of conventional payloads, such as dual- and triple-sensor camera gimbals, hyperspectral and multispectral cameras, LiDAR scanners, and firefighting equipment. Thanks to its modular design, it can also be integrated with more specialized payloads, including spectrometers, gas analyzers, winches, search lights, and megaphones.

Dimensions Without rotor blades: 1942*495*715mm
Max Take-off Weight 45kg
UAV Weight 16.8kg
Max Payload 15kg
Cruising Speed 50-75km/h (max 90km/h)
Wind Resistance Level 7 (wind speed 17m/s)
Endurance 65 min (without payload)
Max Operating ASL Altitude 5100m
Operating Temperature -10°C ~ +55°C
