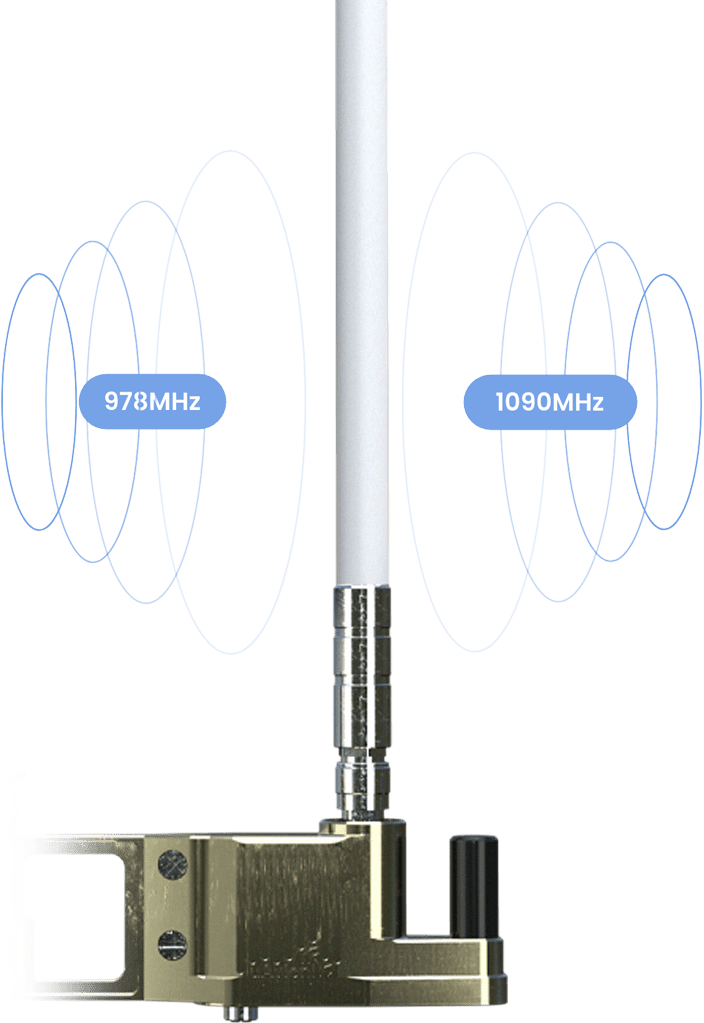

pingStation 3 is a weatherproof dual-band (978MHz and 1090MHz) ADS-B receiver designed for both permanently-mounted and roaming applications.
It provides ground, surface, or low-altitude ADS-B surveillance within line-of-sight of the antenna up to 200NM away. Multiple pingStations can be networked together to provide a wide area low-altitude surveillance capability.
The integrated GPS receiver provides position and precision time-stamping for multilateration and messaging. Data messages are available in multiple formats for easy integration into custom applications.
The robust unit, housed in an IP67-rated protective enclosure, provides easy mounting and installing, requiring only a single Power-Over-Ethernet (POE) cable for power and data communications.
|Input Voltage / Power||44-57V / 350mA Power over Ethernet|
|Size||673.70 x 178.45 x 36 mm|
|MTL 1090MHz Dynamic Range||-88dBm -79 to 0dBm|
|MTL 978MHz Dynamic Range||-93dBm -90 to -3dBm|
|Interfaces||Asterix CAT021 Ethernet (JSON UDP) Compressed VRS (Virtual Radar Server)|
