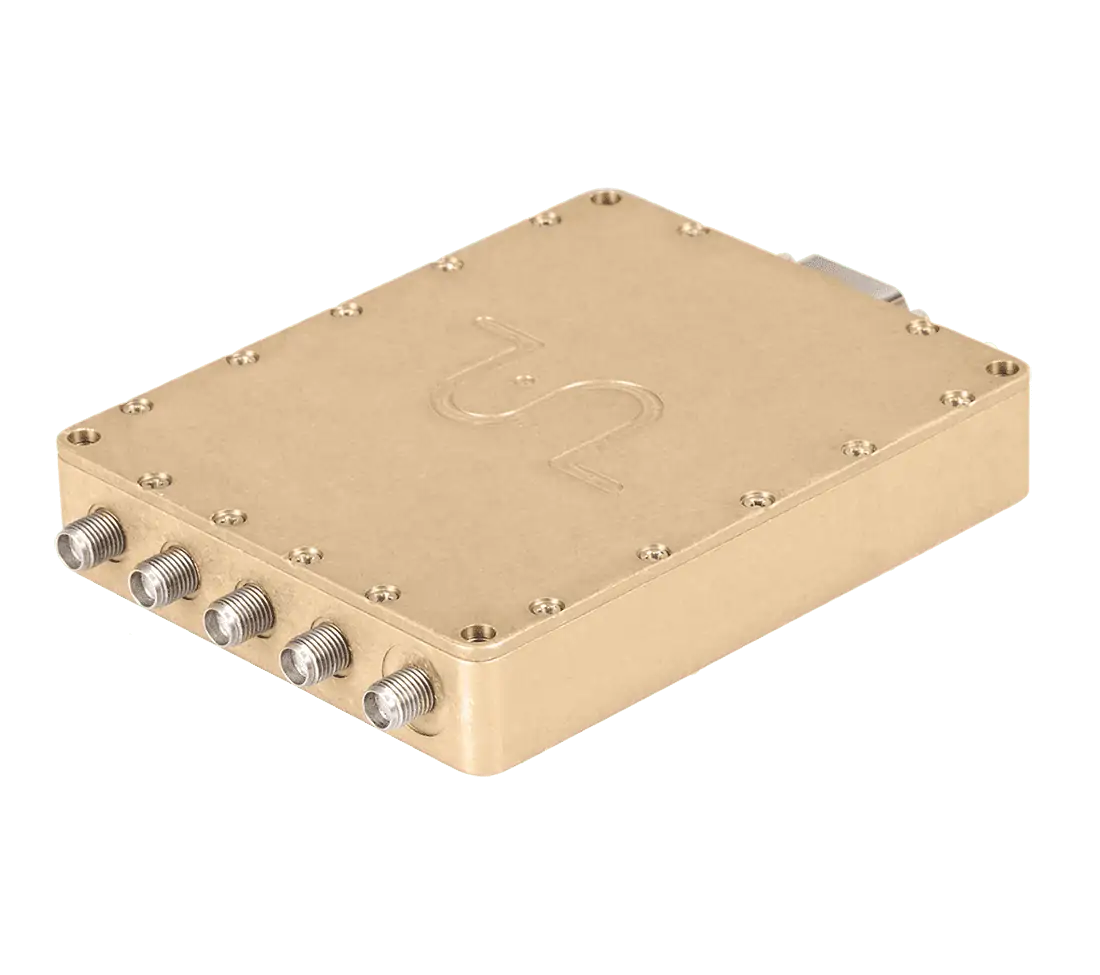

TUALAJ 4100 CRPA Anti-Jam System
The TUALAJ 4100 is a 4-antenna CRPA (controlled reception pattern antenna) anti-jamming system that provides robust GNSS signals for UAVs and unmanned systems.
Supporting GPS L1, GALILEO E1, BEIDOU B1C and SBAS, the lightweight and compact system can be provided with a variety of antennas. Easy to install, it can be integrated into a variety of fixed-wing and rotary UAVs as well as UGVs and USVs.
| Dimensions (cm) | 10 x 8 x 1.8 |
| Weight (g) | 240 |
| Power Consumption (w) | < 6 W |
| Antenna Array | 4 Array CRPA Antenna |
| Simultaneous Independent Nulling | 3 |
| Simultaneous Active Bands | GPS L1 GALILEO E1 BEIDOU B1C SBASS |
| Nominal Wideband Suppression | >40 dB |
| Data Interfaces | Ethernet, Serial |
| Bandwidth | Up to 30 Mhz (depends to selected band option) |
| Connectors | 5x SMA Female, Micro-D 25-pin Socket |
| Internal GNSS Tracking Sensitivity | -164 dBm |
