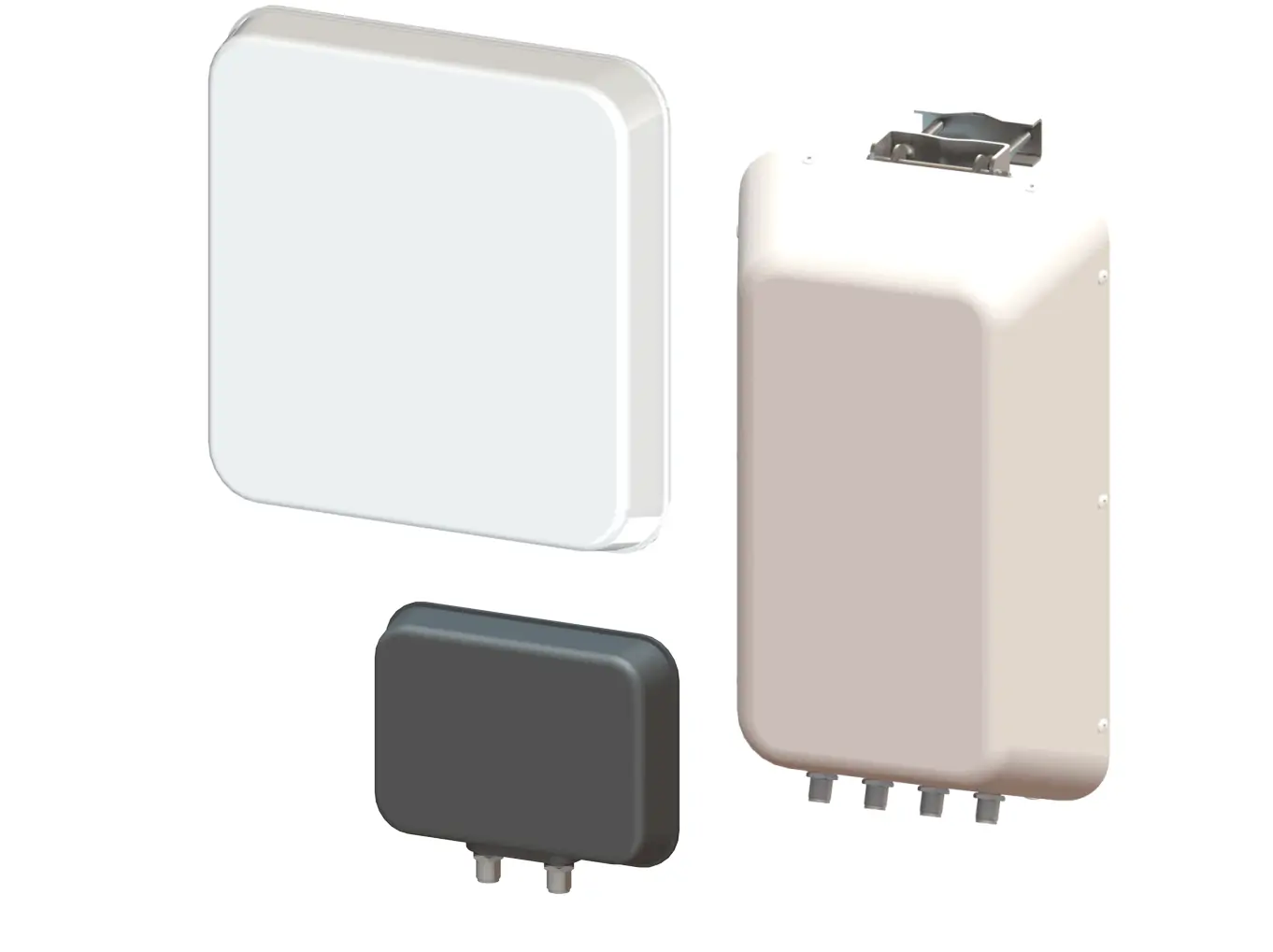

Our single-band multi-port sector antennas allow for focused sectorial area coverage with MIMO and MANET systems. Ideal for ground control systems or other fixed site infrastructure, they are available with beamwidths from 60° – 120°, and in two, three, or four port variants.
We also provide dual-band sector antennas, with an innovative design that allows for many advanced features, such as rapid band-switching for anti-jamming applications, or separating network traffic by band based on environmental operating conditions. They feature a choice of 90 or 120 degree sectorial coverage for smaller or larger operating areas, with L/C or S/C band options. Several can be deployed together for complete 360 degree area coverage, and the included mounting kits with adjustable downtilt allow permanent installation on buildings or communication towers.
Single-Band Multi-Port Antennas| Part # | Min Freq (MHz) | Max Freq (MHz) | Maximum Gain (dBi) | Connector Type | Azimuth Beamwidth | Polarization |
| 1055-333 | 1250 | 2000 | 9.7 | 4x Type-N(f) | 63° | 45° Slant Left/Right |
| 1055-330 | 1250 | 2000 | 9.4 | 3x Type-N(f) | 67° | 45° Slant Left/Right + Vertical |
| 1055-338 | 1400 | 1700 | 9.8 | 4x Type-N(f) | 64° | 45° Slant Left/Right |
| 1009-032 | 1700 | 1900 | 16 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-033 | 1700 | 1900 | 16 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1055-334 | 1700 | 2500 | 9.8 | 4x Type-N(f) | 64° | 45° Slant Left/Right |
| 1055-327 | 1700 | 2500 | 9.7 | 3x Type-N(f) | 67° | 45° Slant Left/Right + Vertical |
| 1055-368 | 1700 | 2500 | 9 | 2x Type-N(f) | 73° | 45° Slant Left/Right |
| 1055-266 | 2100 | 2500 | 10.3 | 4x Type-N(f) | 60° | 45° Slant Left/Right |
| 1055-315 | 2100 | 2500 | 10 | 3x Type-N(f) | 60° | 45° Slant Left/Right + Vertical |
| 1055-381 | 2100 | 2500 | 10 | 3x Type-N(f) | 60° | 45° Slant Left/Right + Vertical |
| 1055-390 | 2100 | 2500 | 10 | 3x Type-N(f) | 60° | 45° Slant Left/Right + Vertical |
| 1055-346 | 2200 | 2300 | 10 | 2x TNC(f) | 56° | 45° Slant Left/Right |
| 1009-024 | 2200 | 2500 | 15 | 4x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-025 | 2200 | 2500 | 15 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-034 | 2200 | 2500 | 12 | 4x Type-N(f) | 120° | 45° Slant Left/Right |
| 1009-035 | 2200 | 2500 | 12 | 2x Type-N(f) | 120° | 45° Slant Left/Right |
| 1009-047 | 2200 | 2500 | 12 | 3x Type-N(f) | 120° | 45° Slant Left/Right + Vertical |
| 1055-345 | 4400 | 5000 | 10 | 2x TNC(f) | 56° | 45° Slant Left/Right |
| 1055-395 | 4400 | 5000 | 9.3 | 3x TNC(f) | 60° | 45° Slant Left/Right |
| 1009-062 | 4400 | 5000 | 16 | 4x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-026 | 4400 | 5000 | 16 | 4x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-027 | 4400 | 5000 | 16 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-036 | 4400 | 5000 | 12 | 4x Type-N(f) | 120° | 45° Slant Left/Right |
| 1009-037 | 4400 | 5000 | 12 | 2x Type-N(f) | 120° | 45° Slant Left/Right |
| 1009-038 | 4400 | 5000 | 12 | 3x Type-N(f) | 120° | 45° Slant Left/Right + Vertical |
| Part # | Band 1 (Ghz) | Band 2 (Ghz) | Maximum Gain (dBi) | Connector Type | Azimuth Beamwidth | Polarization |
| 1009-064 | 2.2-2.5 | 5.725-5.875 | 13 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-065 | 1.35-1.40 | 4.4-5.0 | 13.7 | 2x Type-N(f) | 90° | 45° Slant Left/Right |
| 1009-066 | 2.2-2.5 | 5.725-5.875 | 10.2 | 2x Type-N(f) | 120° | 45° Slant Left/Right |
| 1009-067 | 1.35-1.40 | 4.4-5.0 | 12.0 | 2x Type-N(f) | 120° | 45° Slant Left/Right |
