Heavy Fuel, Gasoline Engines & Wankel Rotary UAV Engines
SP-170 FI TS ROS Two-Stroke Engine Dual Cylinder UAV Engine
SP-170 FI TS ROS Two-Stroke Engine

Dual Cylinder UAV Engine

Visit Website Contact

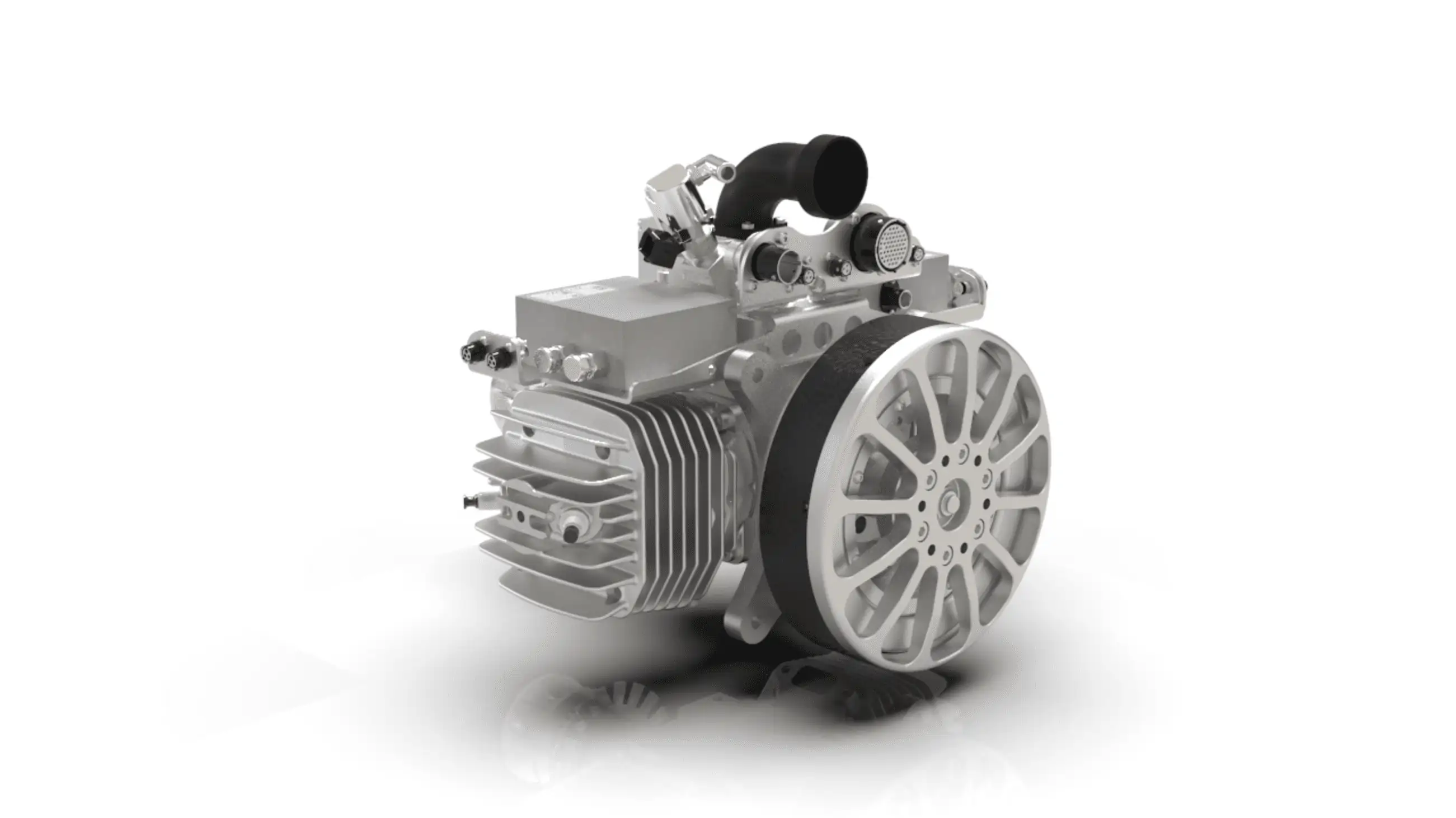

SP-170 FI TS ROS Two-Stroke Engine

The SP-170 FI TS ROS is a fuel injected 2-stroke engine with twin spark and rear output shaft, suitable for a variety of UAV and UAS applications.

The SP-170 2-stroke dual cylinder with 170ccm is the mid range propulsion system designed for aircraft from 60-80kg MTOW. This engine size has successfully completed 100s of hours of maritime operations for EMSA and proved itself in all associated operating conditions.

The SP-170 TS ROS fuel injected engine is equipped with dual spark plugs per cylinder for redundancy and a rear output shaft for user adaptability. Optional starter generator can be included, allowing for hybrid functionality increasing the operational capacity for this engine.

The following additional configurations can be offered:

  • Generator and Controller
  • Starter Generator and Controller
Type 2-Cylinder Gas Engine
Capacity 170 ccm / 10.37 cu in
Power 13.60 HP / 10.0 KW @ 5500 RPM
Speed Range 11500 – 8000 RPM
Weight without subcomponents 10.89 lbs (4.95 kg)
Crankshaft 4 ball bearings
Oil/Gasoline ratio 1:50 / 2% mix
Bore diameter 2.00 inch (51.00 mm)
Stroke 1.60 inch (41.00 mm)
Torque 18.40 Nm @ 5000 RPM
