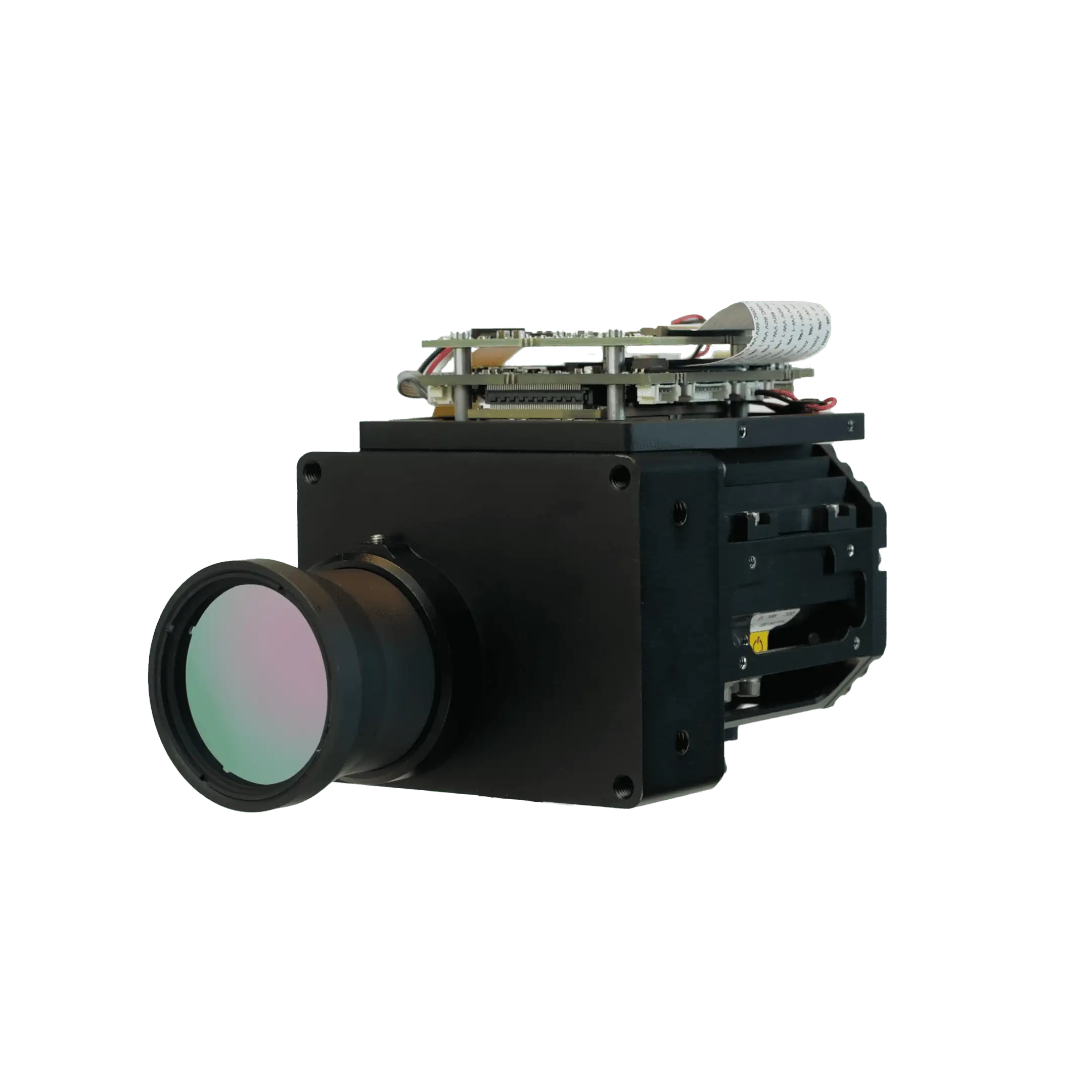

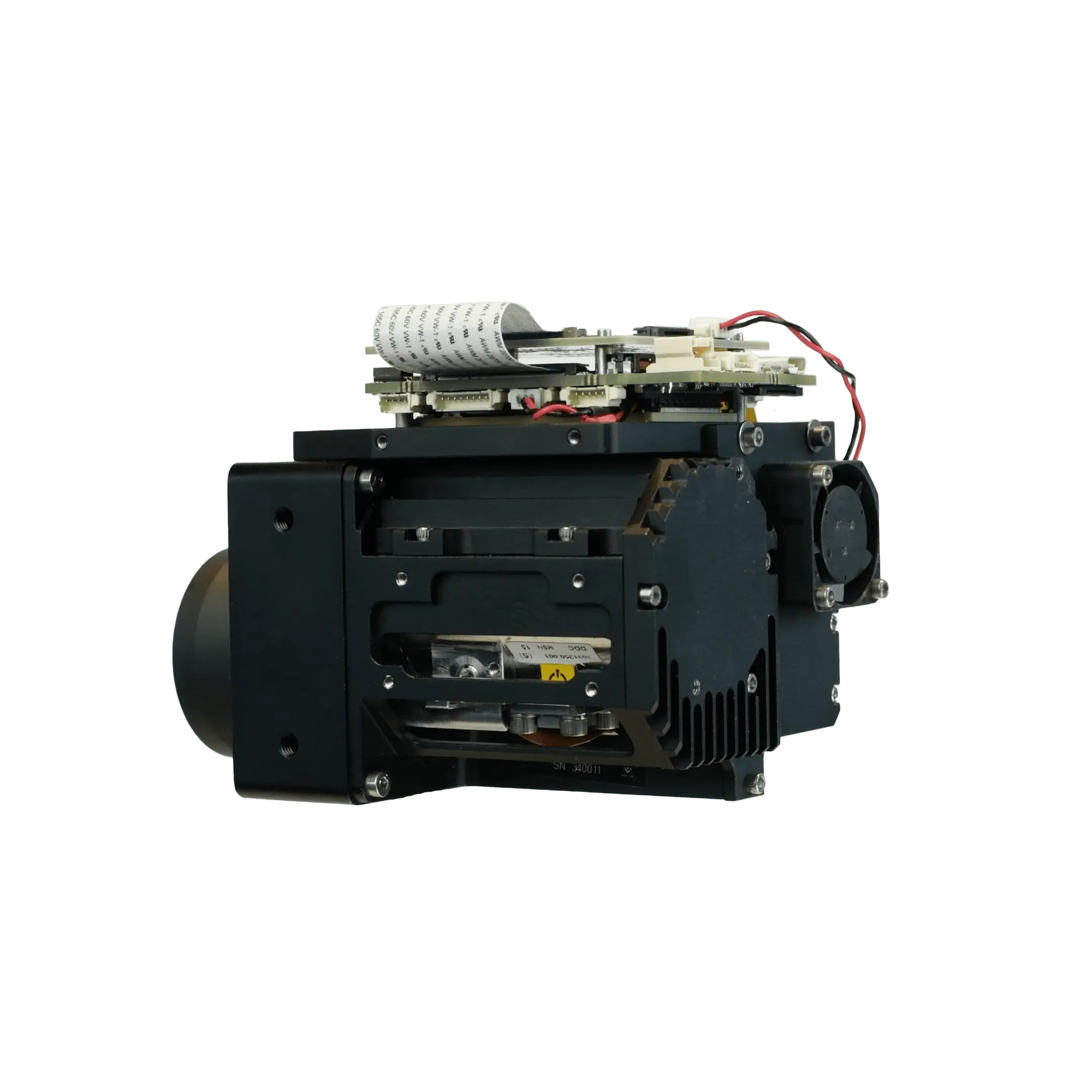

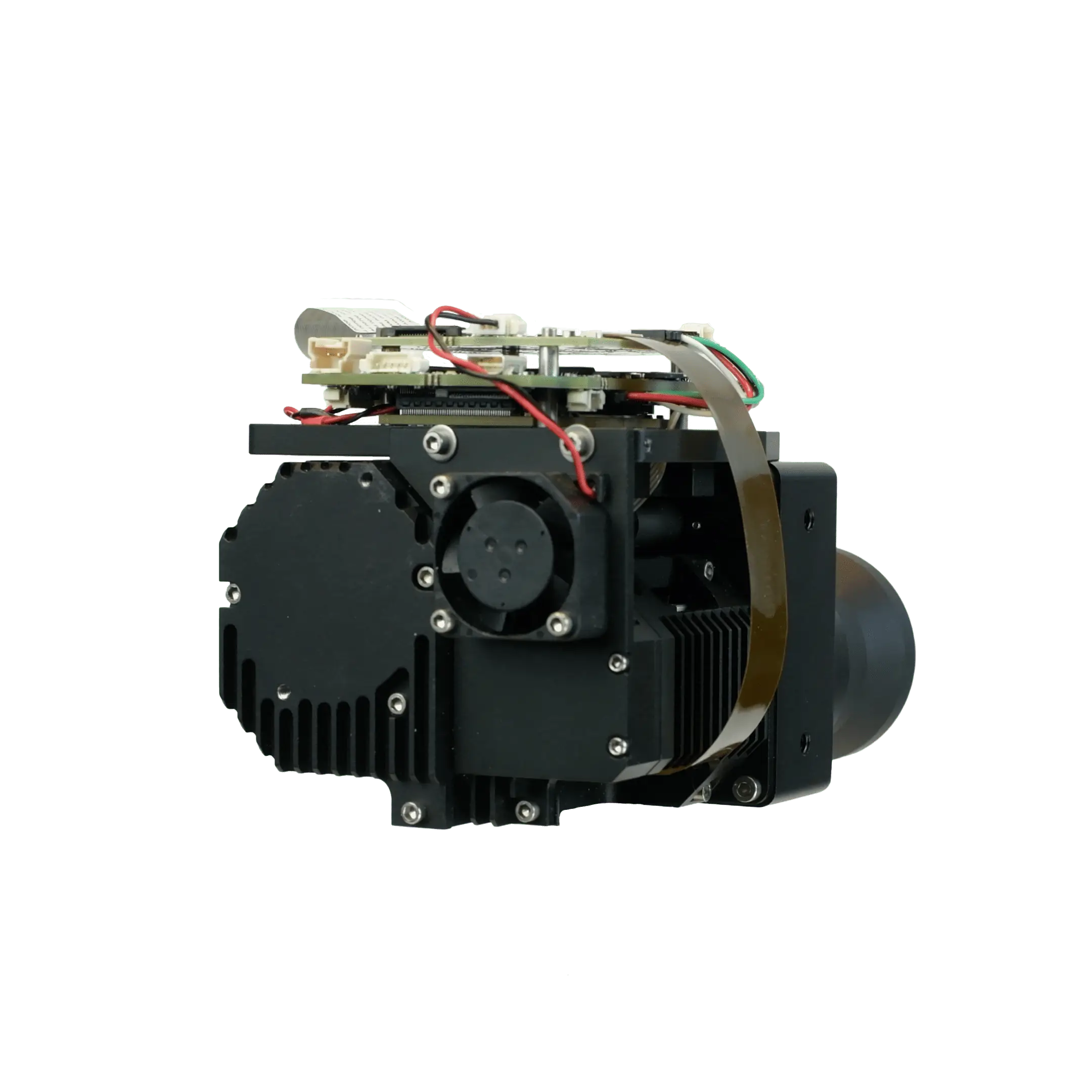

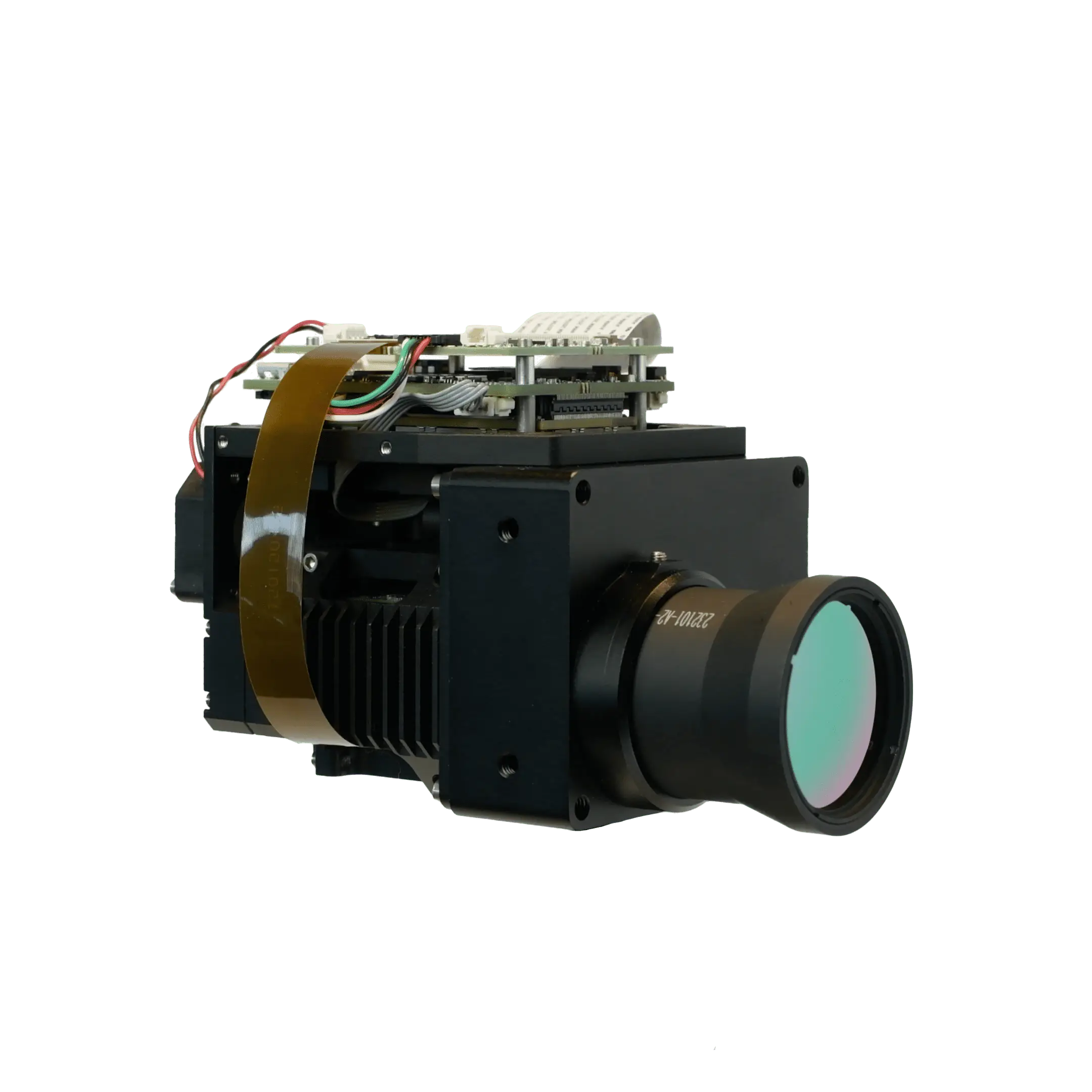

Introducing the Ventus HD6-Fixed product family, potent yet compact fixed focal length HD MWIR cameras meticulously crafted for seamless integration. Small form factor allows for effortless inclusion into a wide variety of applications delivering unparalleled capabilities built to convenient packages.
Sierra-Olympia has built proven 6-um technology from DRS Leonardo into a complete camera system to leverage their HD (1280×960) focal plane with a proprietary long-life cooler for higher acuity and FOV with lower total cost of ownership. On-board video encoding and advanced image processing makes this camera perfect for integration into high-performance surveillance systems. The standard configuration includes a video encoder/processor for centralized interfaces and advanced image processing. A core configuration provides a SWaP optimized option.
Detector
| Detector Type | Mercury Cadmium Telluride (MCT) |
|---|---|
| Array Format | 1280 x 960 |
| Pixel Pitch | 6 micron |
| Spectral Response | MWIR |
| Frame rate | 30 Hz default 60 Hz capable |
| Bit Depth | 14-bit |
| NETD | 30 mK Typical |
System
| Digital Video Output | HDMI, HDSDI (optional), CameraLink |
|---|---|
| IP Video Output | Ethernet (H.264, H.265) |
| NUC | 2-point NUC, 1-point with shutter, Bad Pixel Replacement |
| Digital Zoom/Pan | 1X to 16X |
Environmental
| Standard Configuration | Core Configuration | |
|---|---|---|
| Input Voltage | 12 VDC | 12 VDC |
| Power Dissipation | 11W typical, 14W Max During Cooldown | < 5.6 W typical, 10.08W Max During Cooldown |
| Operating Temperature | -20°C to +40°C | -40°C to +71°C |
| Mounting | 1/4-20 Tripod Mount, and M3 tapped holes | 1/4-20 Tripod Mount, and M3 tapped holes |
Lens Model
| No Lens | No Lens Core | 30 mm Lens | 30 mm Lens Core | |
|---|---|---|---|---|
| EFL | N/a | N/a | 30 mm | 30 mm |
| F# | N/a | N/a | 2.6 | 2.6 |
| FOV | N/a | N/a | 14.3º x 10.75º | 14.3º x 10.75º |
| Focus | N/a | N/a | Threaded Focus | Threaded Focus |
| Environmental Coating | N/a | N/a | Athermalized, high-performance AR coating | Athermalized, high-performance AR coating |
| Size (L x W x H) | 105 x 84 x 81 mm | 95 x 89 x 58 mm | 131 x 84 x 81 mm | 122 x 89 x 58 mm |
| Weight | 611g | 488g | 701g | 580g |
