Ventus HD6-2.4

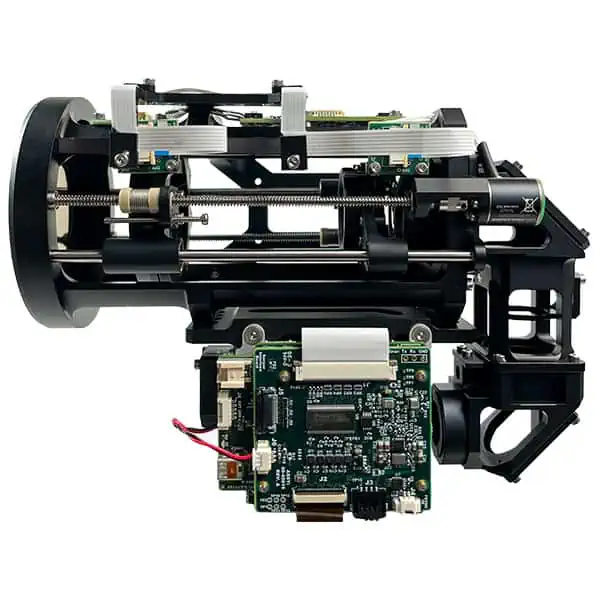

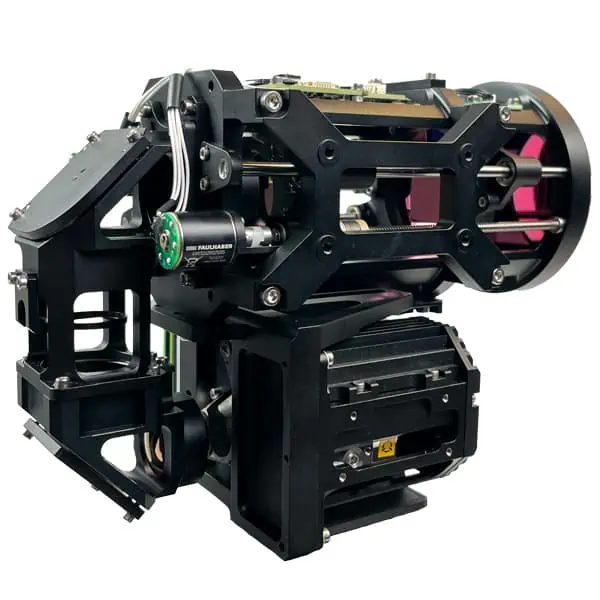

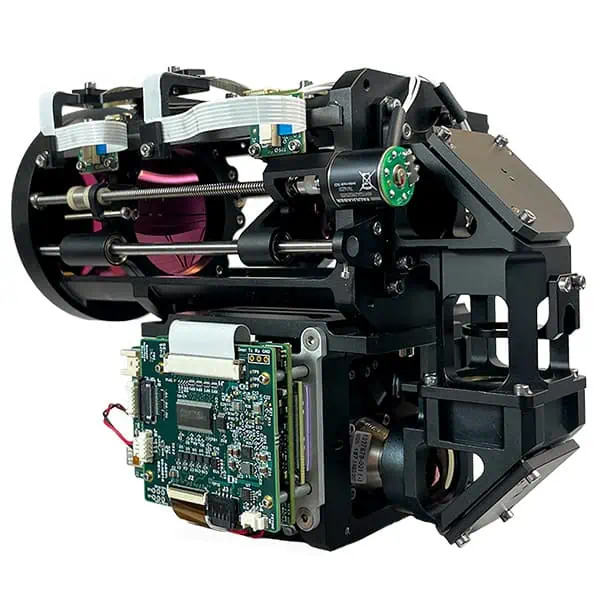

Discover the Ventus HD6-2.4, a compact yet powerful HD MWIR camera designed with the integrator in mind. With a small footprint that enables easy integration into imaging gimbals, dismount units, sighting systems, and more, it provides unmatched capabilities in a convenient package.

Sierra Olympia has built proven 6 micron technology from DRS Leonardo into a complete camera system to leverage their HD (1280×960) focal plane with a proprietary long-life cooler for higher acuity and FOV with lower total cost of ownership. On-board video encoding and advanced image processing makes this camera perfect for integration into high-performance applications in the air and on the ground.

Detector Type Mercury Cadmium Telluride (MCT)
Array Format 1280 x 960
Pixel Pitch 6 micron
Spectral Response MWIR
Frame Rate 30 Hz default 60 Hz capable
Bit Depth 14-bit
NETD 30 mK Typical
Digital Video Output HDMI, HDSDI (optional), CameraLink
IP Video Output Ethernet (H.264, H.265)
NUC 2-point NUC, 1-point with shutter, Bad Pixel Replacement
Digital Zoom/Pan 1X to 16X
Input Voltage 12 VDC
Power Dissipation < 16W steady state (estimated)
Operating Temperature -20°C to +40°C (estimated)
Mounting 1/4-20 Tripod Mount, and M3 tapped holes
EFL 18mm to 180mm
F# 2.6
FOV 25º-2.4º
Focus One-touch autofocus
Optical Zoom 10X
Environmental Coating Athermalized, high-performance AR coating
Size (L x W x H) 195x106x143mm (estimated)
Weight 1390g (estimated)
