Ventus Compact MK2 19-275mm MWIR camera designed for integration into space-constrained UAV/UAS
Ventus Compact MK2

19-275mm MWIR camera designed for integration into space-constrained UAV/UAS

Visit Website Contact
Ventus Compact MK2

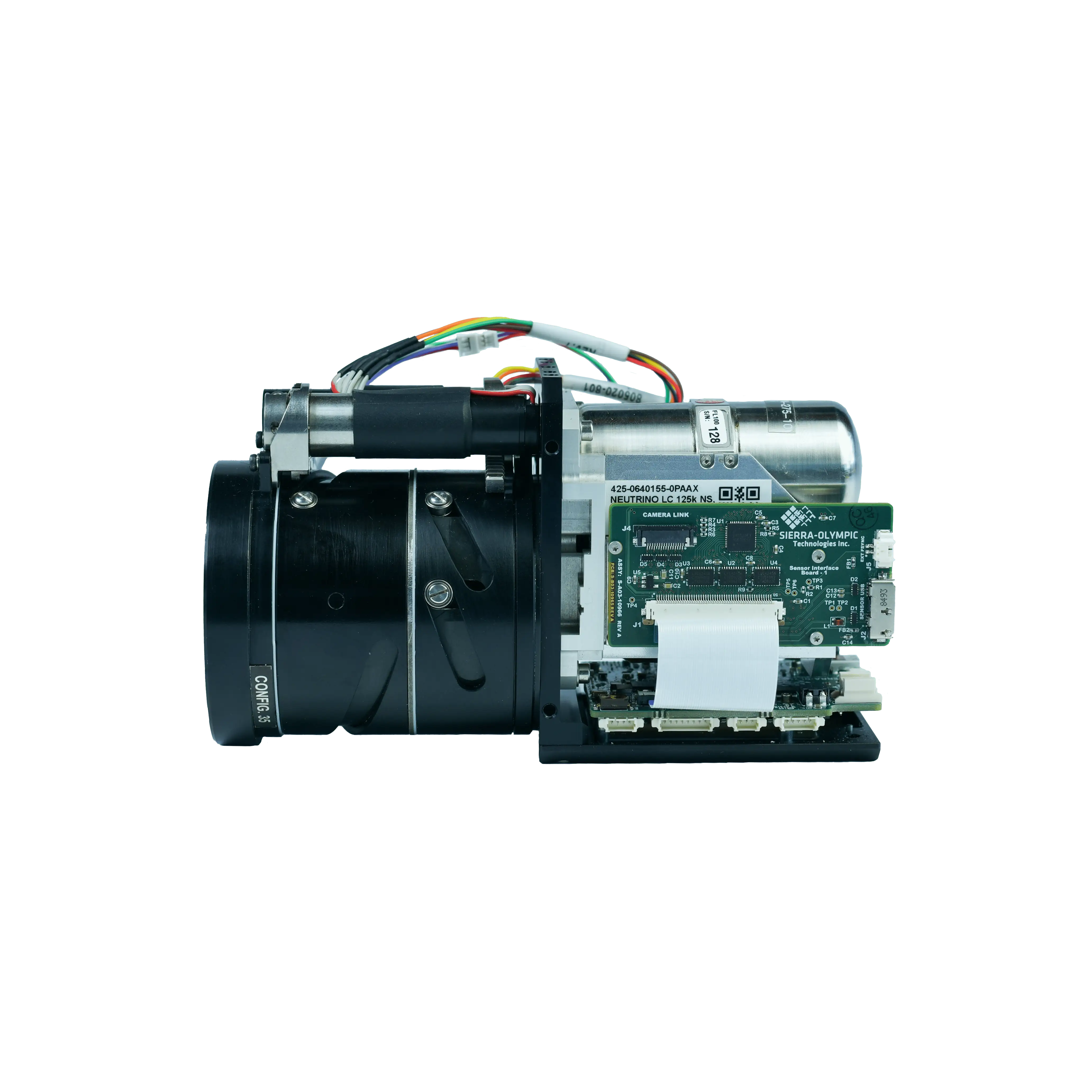

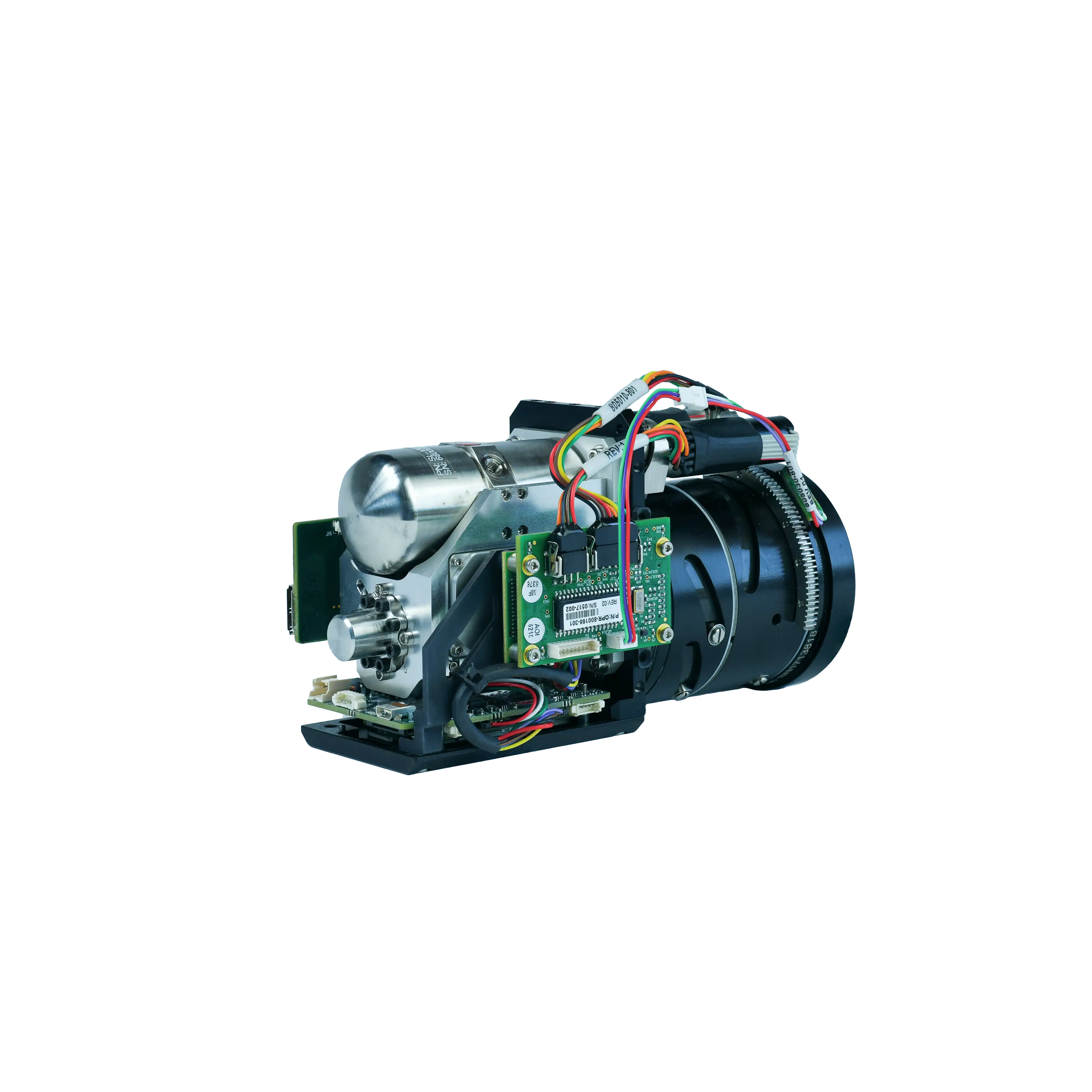

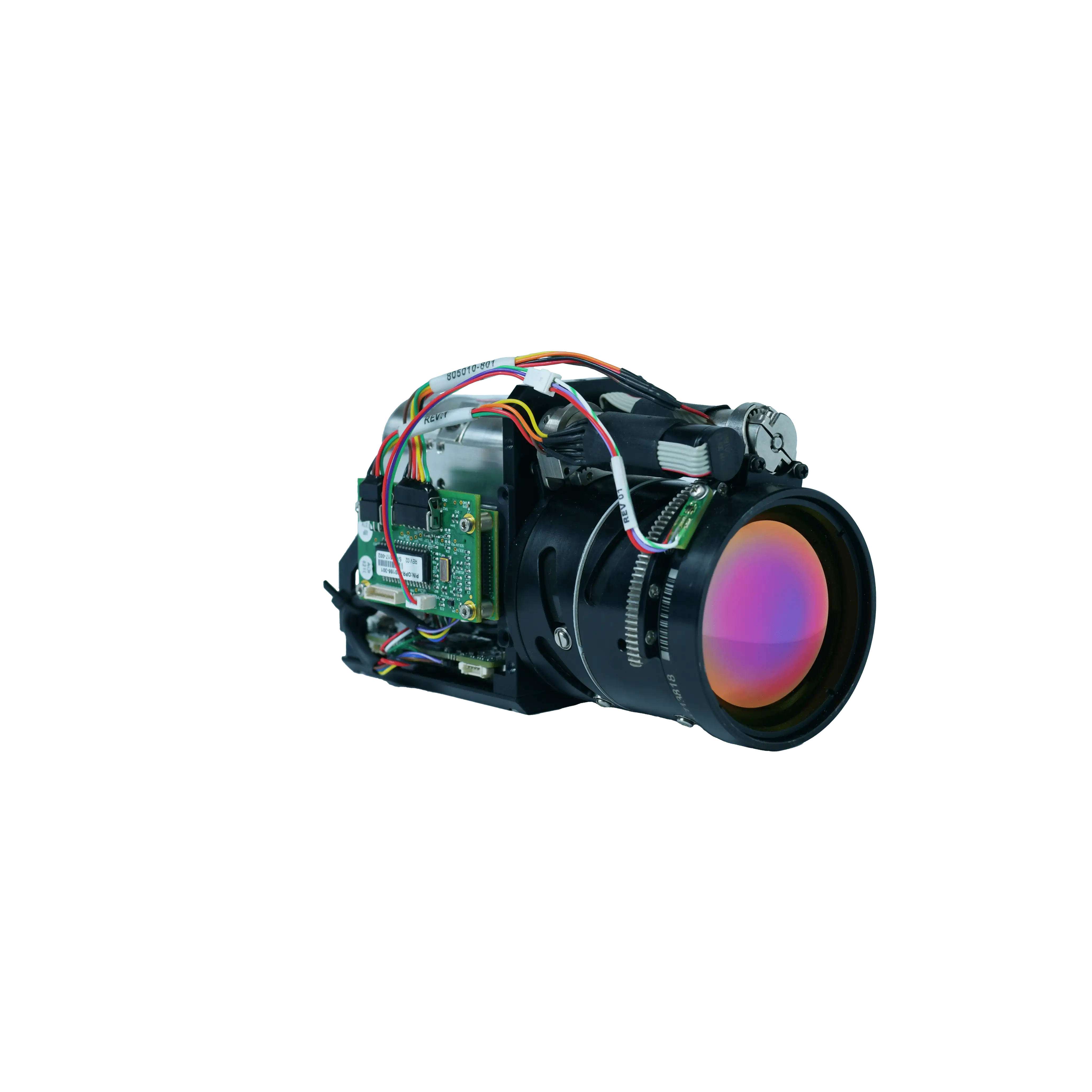

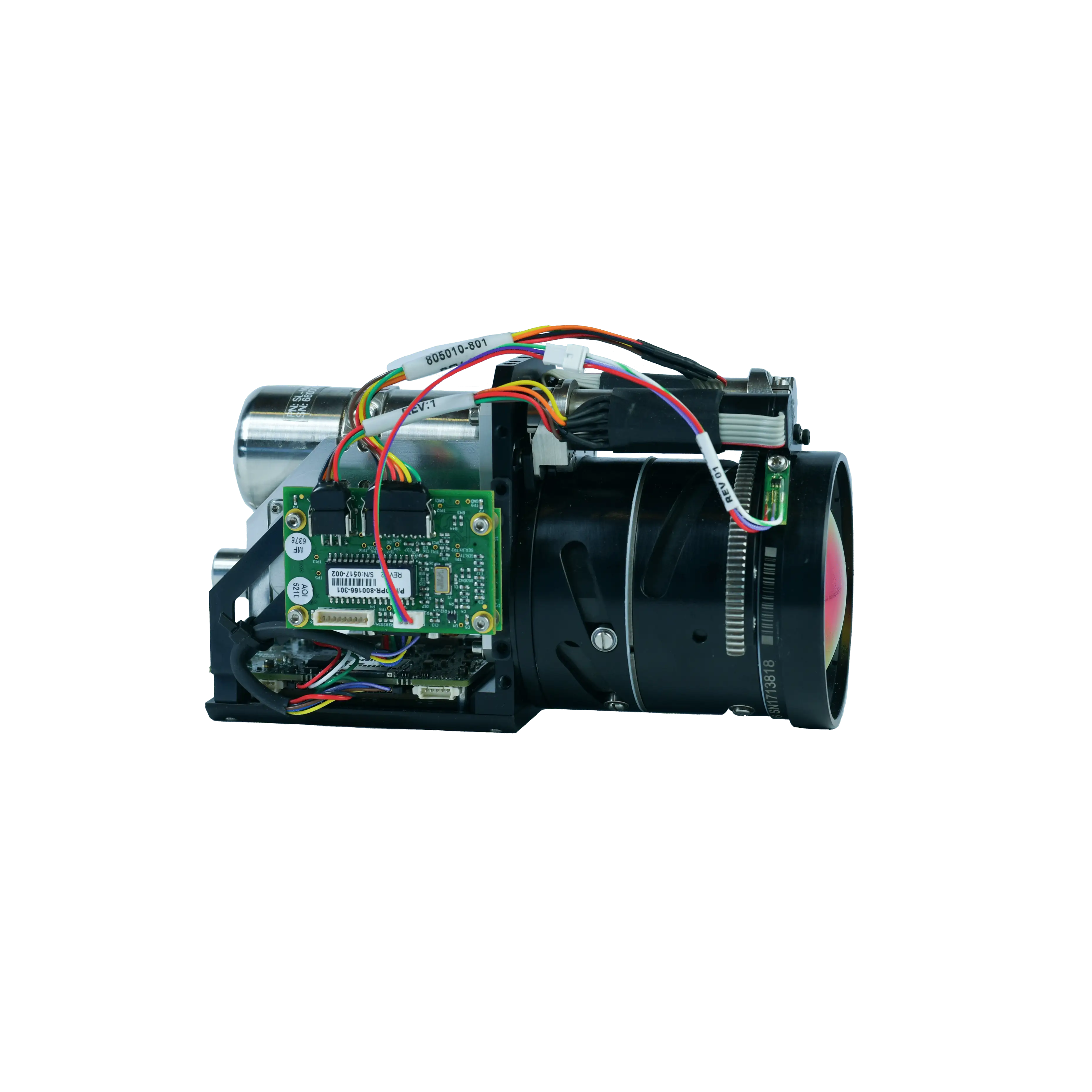

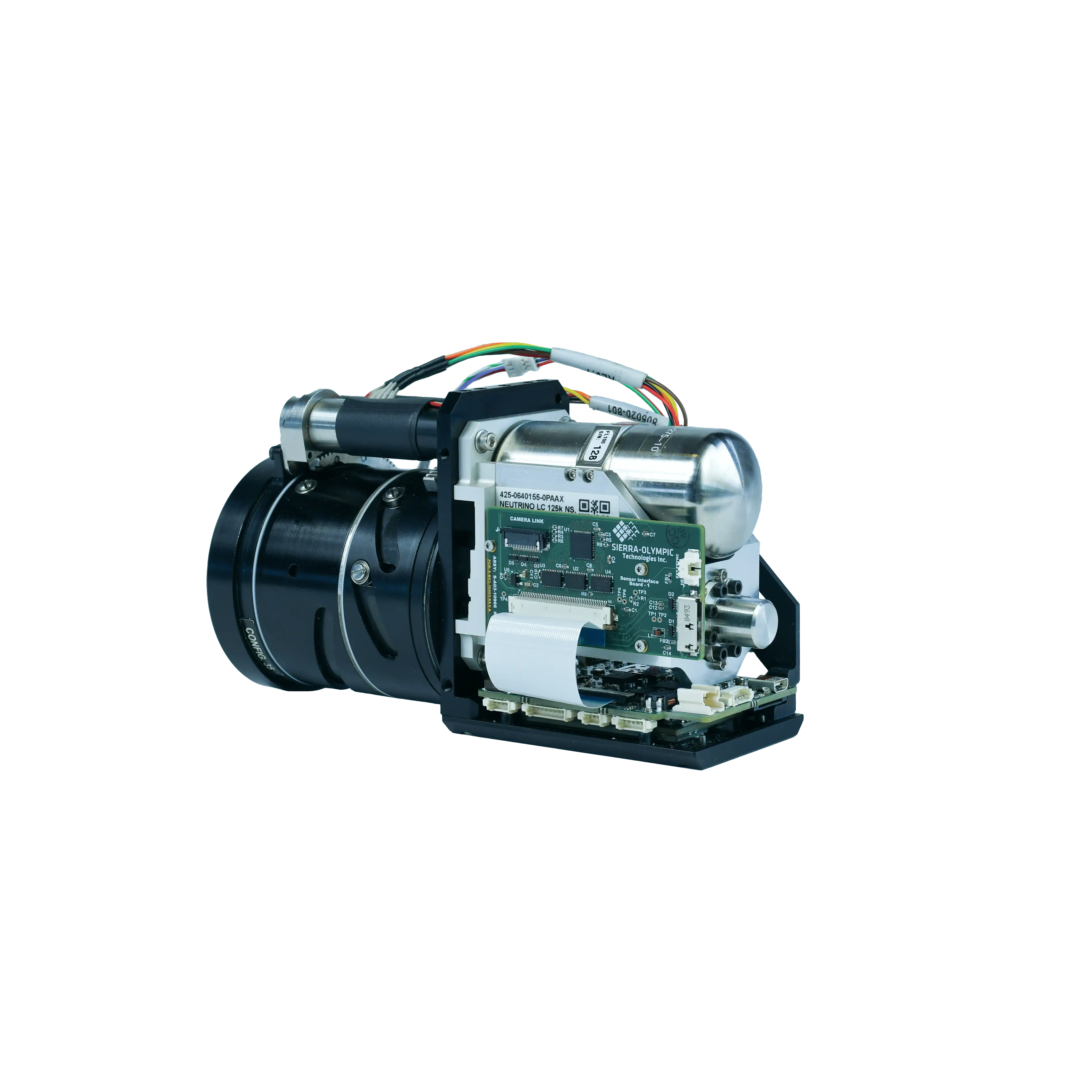

Ventus Compact is a cooled mid-wave infrared camera that combines the functionality and quality of our larger Ventus cameras, but in a low-SWaP package designed for integration into space-constrained systems and UAV/UAS.

The Ventus Compact mid-wave infrared camera is designed specifically for space-constrained integrations in airborne, handheld, and other low-SWaP applications. The system features an advanced, 20-275 mm continuous zoom optic, one-touch autofocus, advanced image processing, and a unified easy-to-integrate software architecture. Ventus Compact is uniquely equipped with advanced ‘NUC Through Zoom’ calibration for consistent imagery throughout the zoom range.

Outputs include IP and HDMI, as well as 16-bit CameraLink and USB 3.0 digital output. In-camera automatic gain control and advanced digital enhancement allow for flexible and adaptable thermal imaging performance.

Detector Type High Operating Temperature MWIR
Array Format 640 x 512
Pixel Pitch 15 micron
Spectral Response 3.4 to 5.1 um
Frame Rate 60 Hz
Bit Depth 16-bit
NETD <30 mK
Digital Video Output HDMI, Uncorrected 16-bit CameraLink, Uncorrected USB 3.0
IP Video Output H.264 / H.265
NUC NUC through zoom
Image Enhancement Linear Histogram AGC, CLAHE, LAP, Sharpen, De-noise, Electronic image stabilization
Color Palette Options User color palettes/LUT
Digital Zoom / Pan 1X to 16X
Onboard Storage 32GB Standard, Expandable to 512GB
Camera control/Command Interfaces/System Control Ethernet, Serial (RS-422/RS-232), Aux serial in/out
Input Voltage 12 VDC
Power dissipation 12 VDC / 12W typical, 19W Max during cool down
Operating temperature 0°C to +50°C
LENS MODEL: 275 mm Lens
F# 5.5
HFOV (From wide to narrow) 28° to 1.9°
Focus One-touch autofocus
Optical Zoom 14X
Environmental Coating DLC
Focal Length 19-275mm
Mounting ¼-20 and M3 tapped holes
Size (L x W x H) 145 x 65 x 75 mm
Weight 764g
