Vayu HD-Industrial

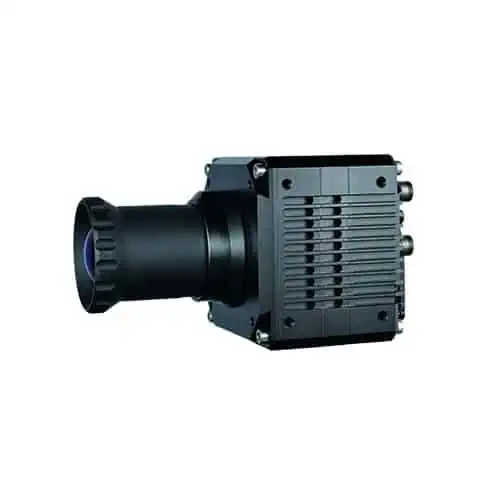

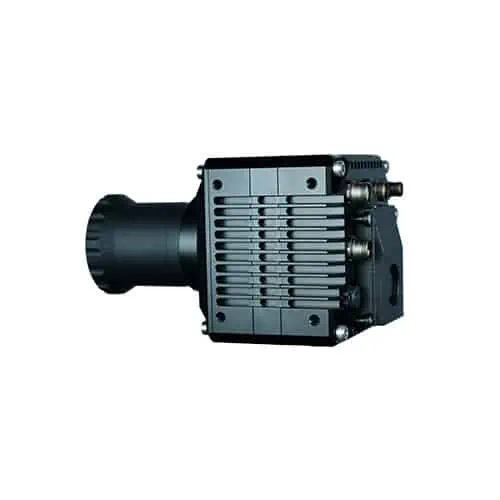

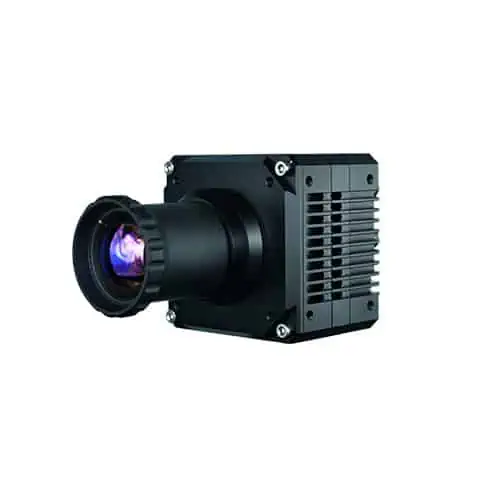

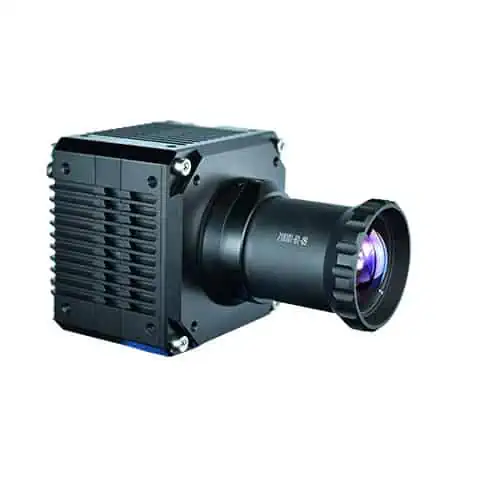

The VAYU HD-I is a HD infrared camera system built for high definition infrared imaging in difficult environments.

This field-ready camera is enclosed in a IP54 ingress protected case with sealed and locking connectors. The rigid internal design is meant to withstand vibration environments under a wide operating temperature range. The rugged encasement provides several mounting arrangements, making integration faster with minimal SWaP tradeoff for weight critical missions.

Features:

  • Weatherproof, IP54 rated enclosure for demanding environments
  • Wide operating temperature range
  • Sealed locking connectors
  • Multiple mounting orientations
  • 25 mm, 50 mm, 87mm lens options available
25mm 50mm 87mm
Array Format 1920 x 1200 1920 x 1200 1920 x 1200
Pixel Pitch 12 micron 12 micron 12 micron
Frame Rate 60 Hz 60 Hz 60 Hz
F# 1.2 1.2 1.2
FOV or H/VFOV 49.5° by 32.1° 25.9° by 16.4° 15.1° by 9.46°
Size (L x W x H) 85mm x 85mm x 95mm 85mm x 85mm x 95mm
Weight 510g 560g
Power Consumption 12W typical, 15W max 12W typical, 15W max 12W typical, 15W max
