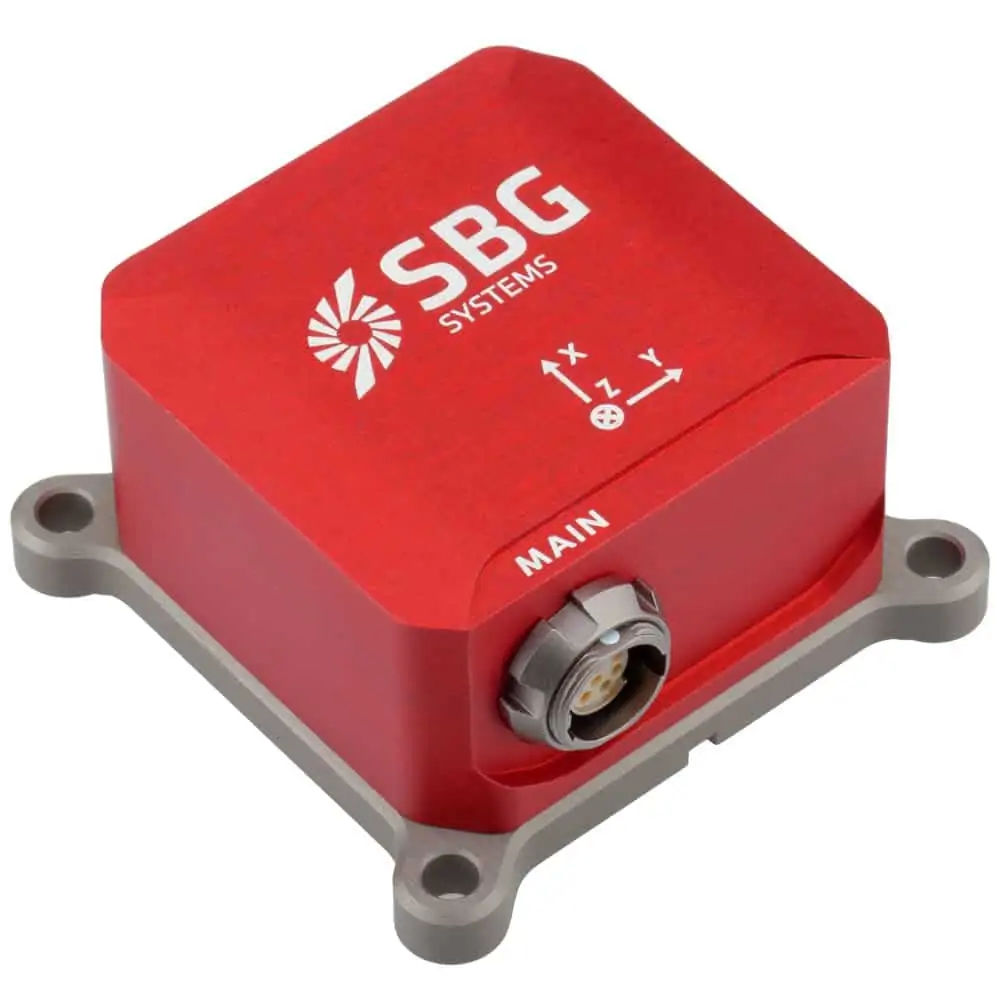

Ellipse-A AHRS
Ellipse-A is a small-sized high performance Attitude and Heading Reference System (AHRS). It provides Roll, Pitch, Heading, and Heave data.
This light-weight sensor (45 grams) includes a MEMS-based Inertial Measurement Unit (IMU) integrating three gyroscopes, three magnetometers, and three accelerometers.
High Accuracy for Such a Small Sensor- 0.1° Roll and Pitch over 360°
- 0.8° Heading (Internal Magnetometers)
- 5 cm Real-time Heave, adjusted to the wave period (Marine applications)
- Very Low Noise Gyroscopes
- 64-bit architecture for high end filtering processing
- IP 68 Enclosure
- 200 Hz Output Rate
- RS-232, RS-422, and CAN Interfaces
- Binary, NMEA, ASCII, and TSS Protocols
- 2 years warranty
