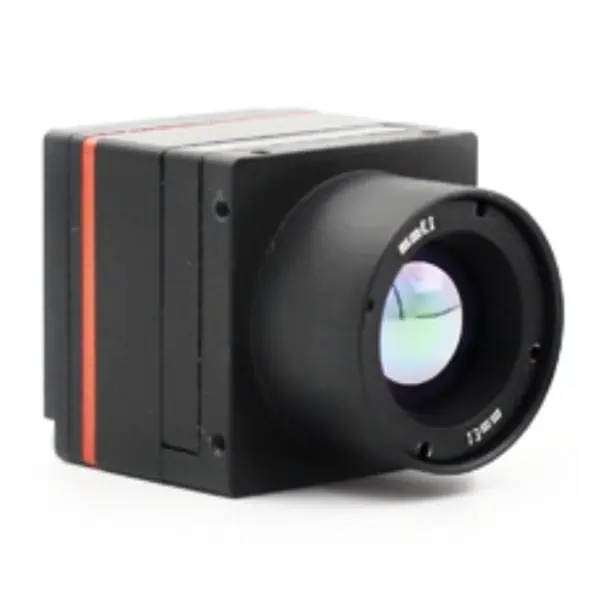

M-Core LWIR Camera Core
The OBSETECH M-Core is a miniature uncooled LWIR thermal imaging core designed for UAV (unmanned aerial vehicle), UGV (unmanned ground vehicle) and robotics system integrators. It provides a range of advanced image processing features including non-uniformity correction (NUC), digital filter noise reduction (DNR), and digital detail enhancement (DDE).
Featuring a low-SWaP design and excellent vibration resistance, it supports both analog and digital video output and is available in three different resolution options - 384×288, 640×512 or 1280×1024. Multiple lens sizes are available on request.
Specifications:
| Dimensions | 26 x 26 mm (without lens) |
| Weight | <20 g (without lens) |
| Power Consumption | ≦0.7 W (with expansion board 0.9 W) |
| Resolution |
384×288 640×512 1280×1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 8-14μm |
| Frame Rate | 50 Hz |
| Digital Zoom | 1 – 4x (steps of 0.1) |
| Interfaces |
Serial RS-232, UART (3.3V) Analog video: 1 Channel PAL Digital video: 14 Bit or 8 Bit LVCMOS / BT.656 / BT.1120 / LVDS (USB optional) |
