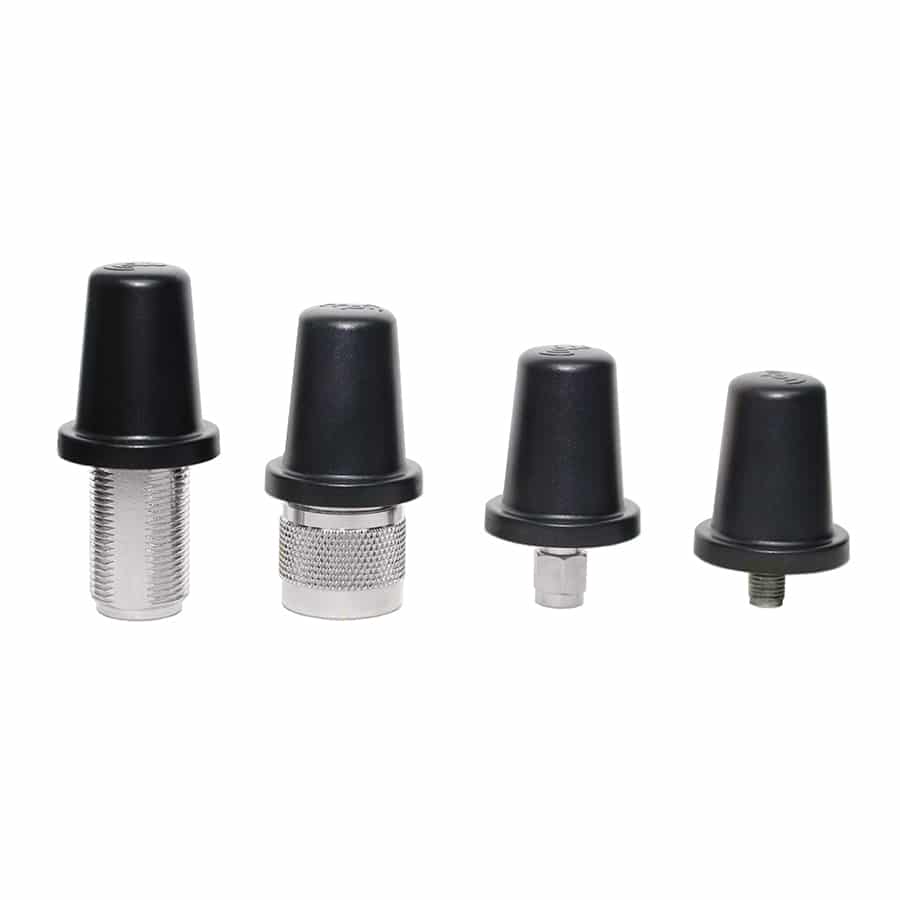

08-ANT-0985 Micro Omni Antenna
The 08-ANT-0985 Micro Omni Antenna delivers enhanced connectivity and data throughput for UAVs and unmanned systems even in NLOS and highly obstructed environments. With a patented multi-polarized three-dimensional element design, it provides maximum reliability and signal stability.
The rugged IP67-rated antenna is available with a range of connector configurations for seamless integration into radios and communications devices, including:
N-Female & Male
SMA-Female & Male
RPSMA-Male
RPTNC-Male
Specifications:
| Dimensions (Lx W x H): | 1 x 1 x 1.2 in |
| Weight: | 1.5 oz |
| Power: | 50W input |
| Impedance: | 50 ohms nominal |
| Gain: | 3 dBi |
| Frequency Range: | 4.9 – 6 GHz |
