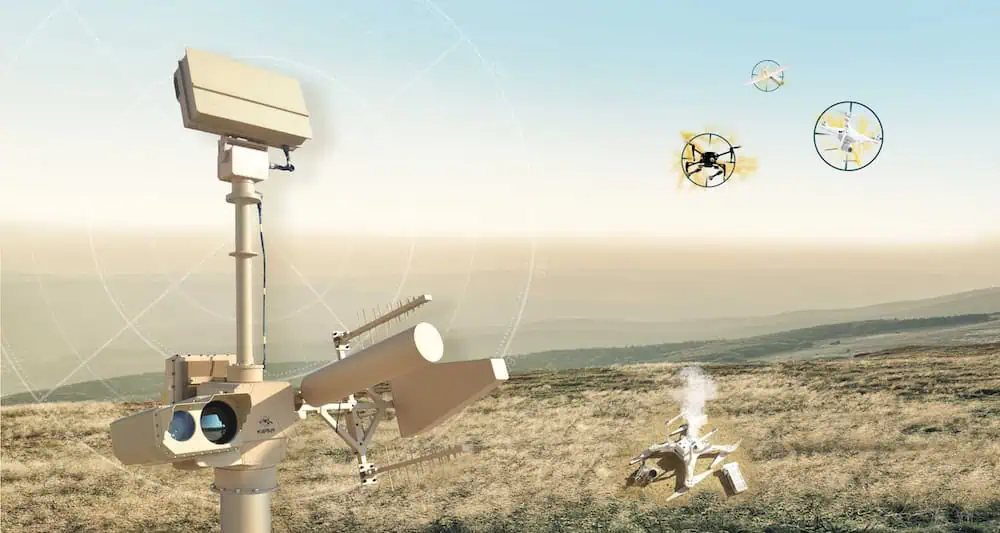

KAPAN Counter-UAS System
The KAPAN counter-drone system provides highly effective detection, tracking and neutralization of drone threats for military and security forces. Utilizing a combination of radar and electro-optic technologies backed by sophisticated AI algorithms, as well as an RF jammer for target interception, it is ideal for protection of borders, bases and facilities.
Multiple systems can be networked together to provide enhanced wide-area coverage. The system's C2 software allows multiple target tracks from multiple radars to be fused to provide a common operating picture.
Drone Detection Radar- Ku Band
- 3D Radar (Range, Bearing, Height)
- 2°x40° Beam Width
- 4/8/16/30 rpm Scan Rates, 360° Continuous Scan
- 0.5m Range Accuracy, 0.8°x3° Angle Accuracy
- Mono-Pulse Antenna Topology
- Spectrogram Analyze Mode (micro-Doppler)
- Frequency Hopping, Pulse Compression, Doppler Signal Processing
- Low RF Output (LPI)
- Telemetry Communication & Control Bands
- Video Transmitting Bands
- WiFi / ISM Bands
- GNSS - Global Navigation Satellite System Bands
- Directional / Omnidirectional Antennas
- Configurable and Programmable upon Customer Requirements
