HX-CSX600A offers full support for reliable and consistent satellite signal tracking, including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS as well as L-Band correction services. It exhibits a very stable phase center variation with advanced multipoint feeding technology. It features at least 5.5dBi high gain at Zenith across all frequency bands (7dBi maximum), -1.5dB high gain at 20-degree low elevation, and 2.0dB low noise figure.
STRONG ANTI-INTERFERENCE PERFORMANCEHX-CSX600A equips a robust pre-filtered LNA to realize excellent out-of-band rejection performance, offering strong anti-interference performance for consistent and reliable GNSS signals. Also, it effectively avoids disconnection danger when receivers are operated in complex electromagnetic environments such as communication base station and busy urban area.
TRACKING IN CHALLENGING ENVIRONMENTSThe ability to receive low elevation signals with high gain and wide beam width makes HX-CSX600A an excellent choice for tracking visible satellites in tough environments, providing the positioning solutions with precision and reliable data. It can be widely used in challenging conditions where high precision is needed, such as obstructed environments of forest or construction.

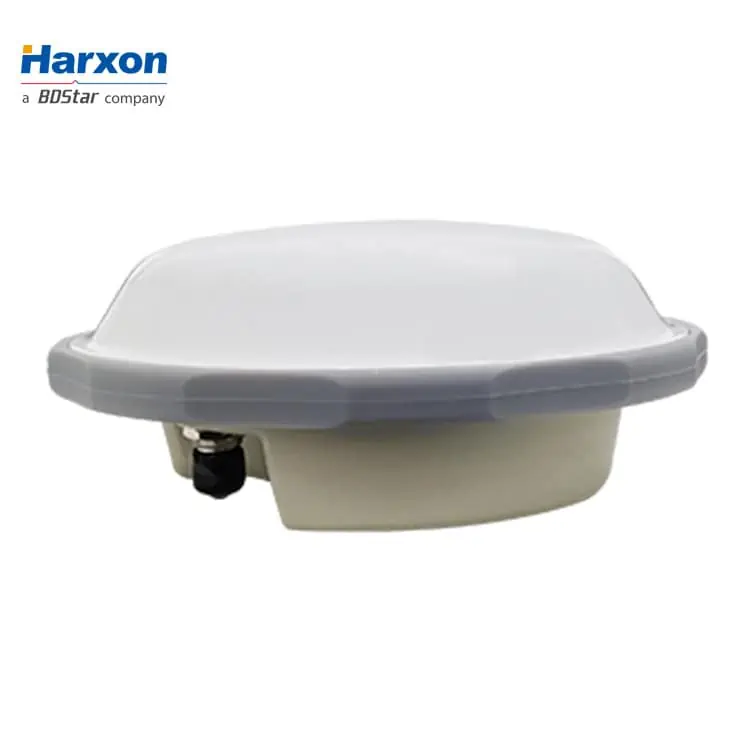

RUGGEDIZED HOUSING, EASY TO INSTALLIt is built into a compact and ruggedized housing with IP67 rating to protect from dust, rain and sunlight, it can withstand a certain amount of shock and vibration, providing reliable performance even in harsh environments. The standard TNC-K connector and pole mount enable easy installation and integration.
KEY FEATURES- Support GPS, GLONASS, GALILEO, BDS, QZSS, IRNSS, SBAS and L-Band
- At least 5.5dBi high gain across all frequency bands (7dBi maximum)
- Stable phase center guarantees the accuracy of positioning within millimeter-level
- Strong anti-interference ability to endure the challenging operating environments
- Ruggedized housing with IP67 rating protection
