Reliable and Ruggedized with Millimeter Accuracy

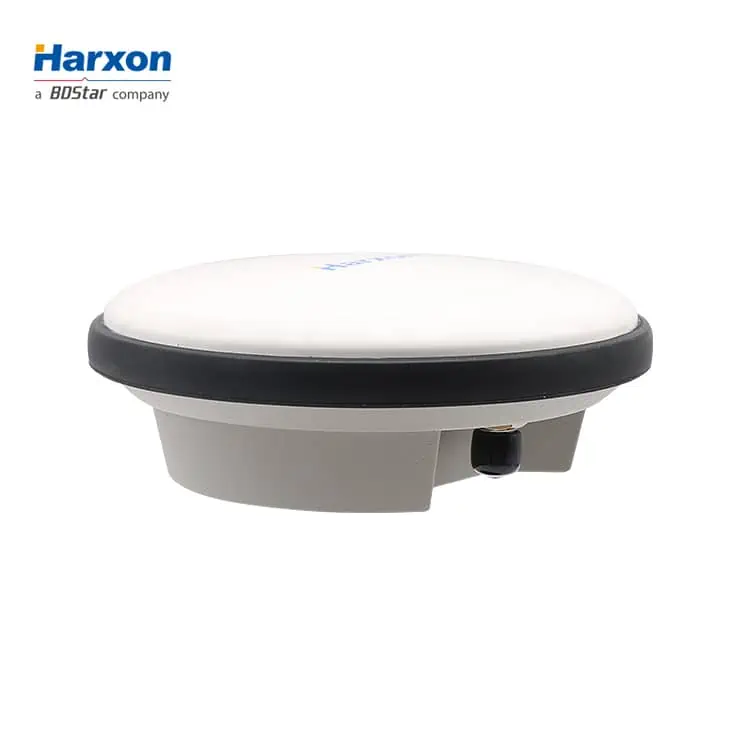

Harxon HX-CVX606A GNSS antenna is built into ruggedized enclosure with metal base, which allows the antenna to be used in high shock and vibration conditions. HX-CVX606A can provide millimeter level accuracy with strong anti-interference performance and stable phase center, ideal for surveying in tough environments and I-construction applications including autonomous vehicles and automatic operation.

HX-CVX606A is built into an independent aerodynamic enclosure with ruggedized metal base. The IP69K rating housing protects the product from dust, rain and sunlight, also enables withstanding of high shock and vibration. Its standard TNC-K connector with anti-collision cap design ensures optimal reliability in challenging environments.

HX-CVX606A offers full support for reliable and consistent satellite signals tracking, including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS as well as L-Band correction services. Also, it exhibits a very stable phase center variation with advanced multipoint feeding technology, exceptional low elevation satellite tracking with symmetric radiation patterns, high gain with ultralow signal loss, as well as outstanding wide-angle circular polarization (WACP), which ensures excellent positioning accuracy.

The high gain and wide beam width features ensure exceptional low elevation signal tracking performance, which make sure the antenna receives reliable and consistent signals even under harsh environment where blockage exists

The advanced LNA (Low Noise Amplifier) of the antenna excels in improved signal filtering and out-of-band rejection by restraining unwanted electromagnetic interferences, providing strong anti-interference performance for consistent and reliable GNSS signals and avoiding the risk of loss tracking even under complicated environments such as overcrowded urban areas or communication base stations where profound electromagnetic interference exists.

• Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS as well as L-Band correction services
• Millimeter PCV repeatability(≤2mm)
• Improved signal filtering and excellent multipath rejection
• IP69K ruggedized enclosure for tough environments
• Solid metal base, high shock & vibration resistance
